Toyota COROLLA 后视镜 — Figure 8701

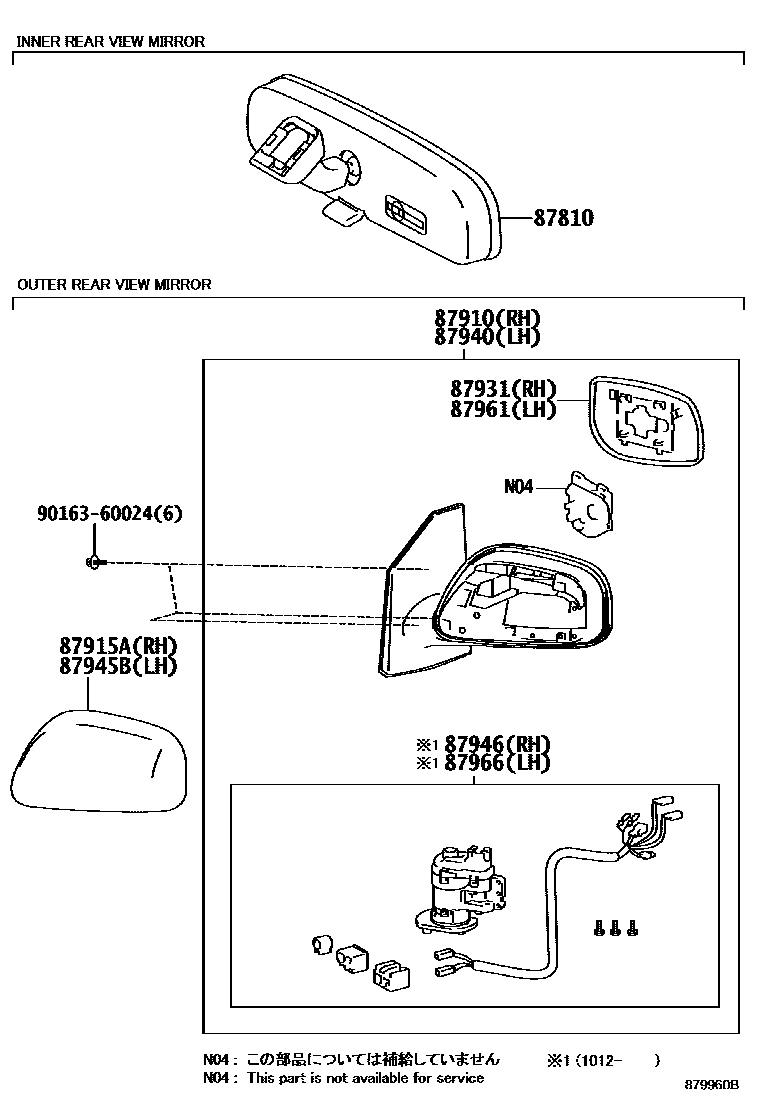

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06080 · 87810-60191 |
| 87910 | Right exterior rearview mirror assembly | 87910-12C40 · 87910-12D60 · 87910-12J20 |
| 87915A | Right exterior rearview mirror cover | 87915-12050 |
| 87931 | Right exterior rearview mirror | 87931-12C40 · 87931-12D60 · 87931-12G70 |
| 87940 | Left exterior rearview mirror assembly | 87940-12C60 · 87940-12D80 · 87940-12J20 |
| 87945B | Left exterior rearview mirror cap | 87945-12050 |
| 87946 | Right exterior rearview mirror retractor | 87946-12J20 |
| 87961 | Left exterior rearview mirror | 87961-12C60 · 87961-12D80 · 87961-12J20 |
| 87966 | Left exterior rearview mirror retractor | 87966-12J20 |
