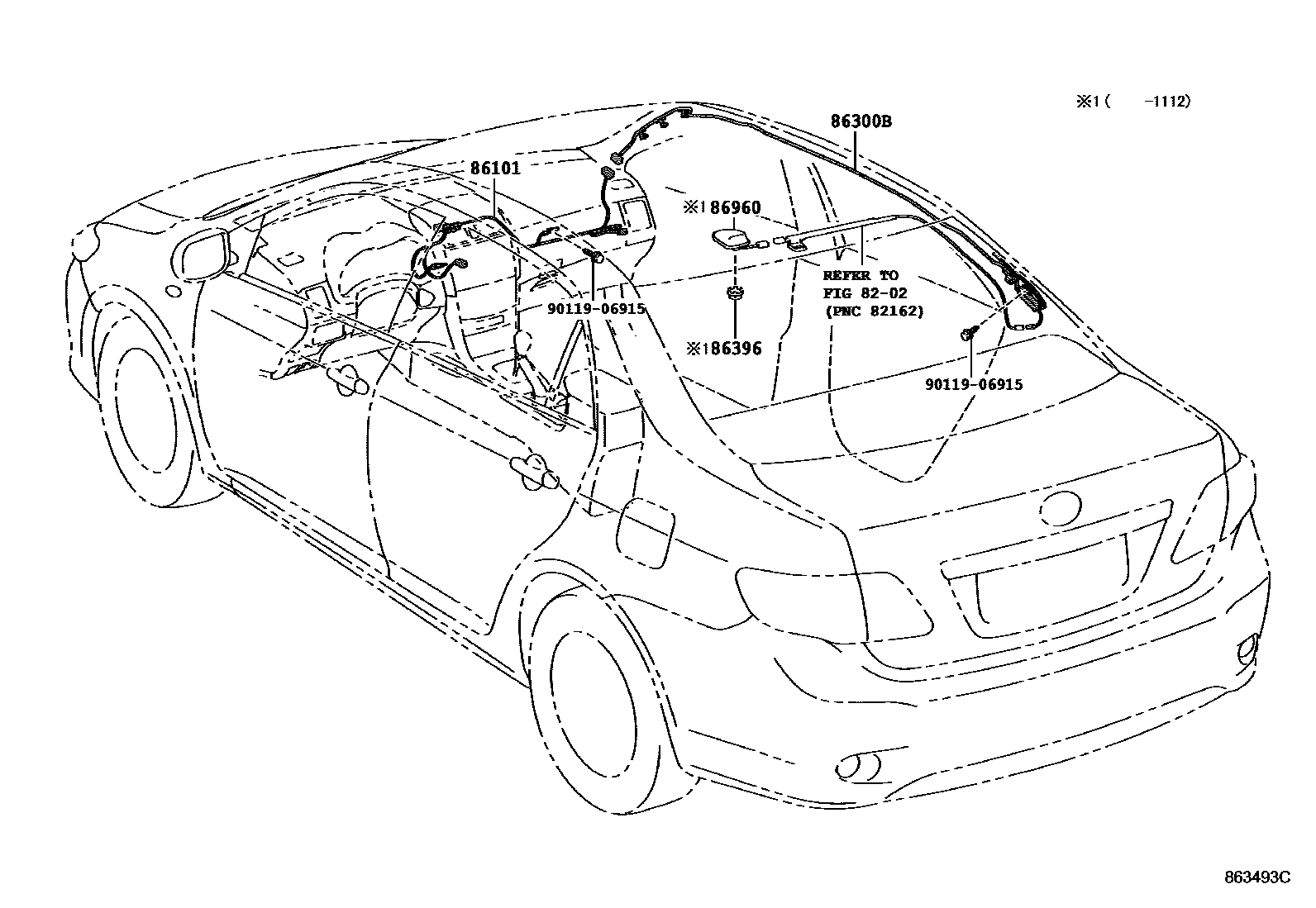

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12540 · 86101-12790 · 86101-12A10 |
| 86300B | Amplifier antenna assembly | 86300-12A00 · 86300-12A80 |
| 86396 | Antenna nut | 86396-30050 · 86396-47010 |
| 86960 | Satellite radio antenna assembly | 86960-12020 |
