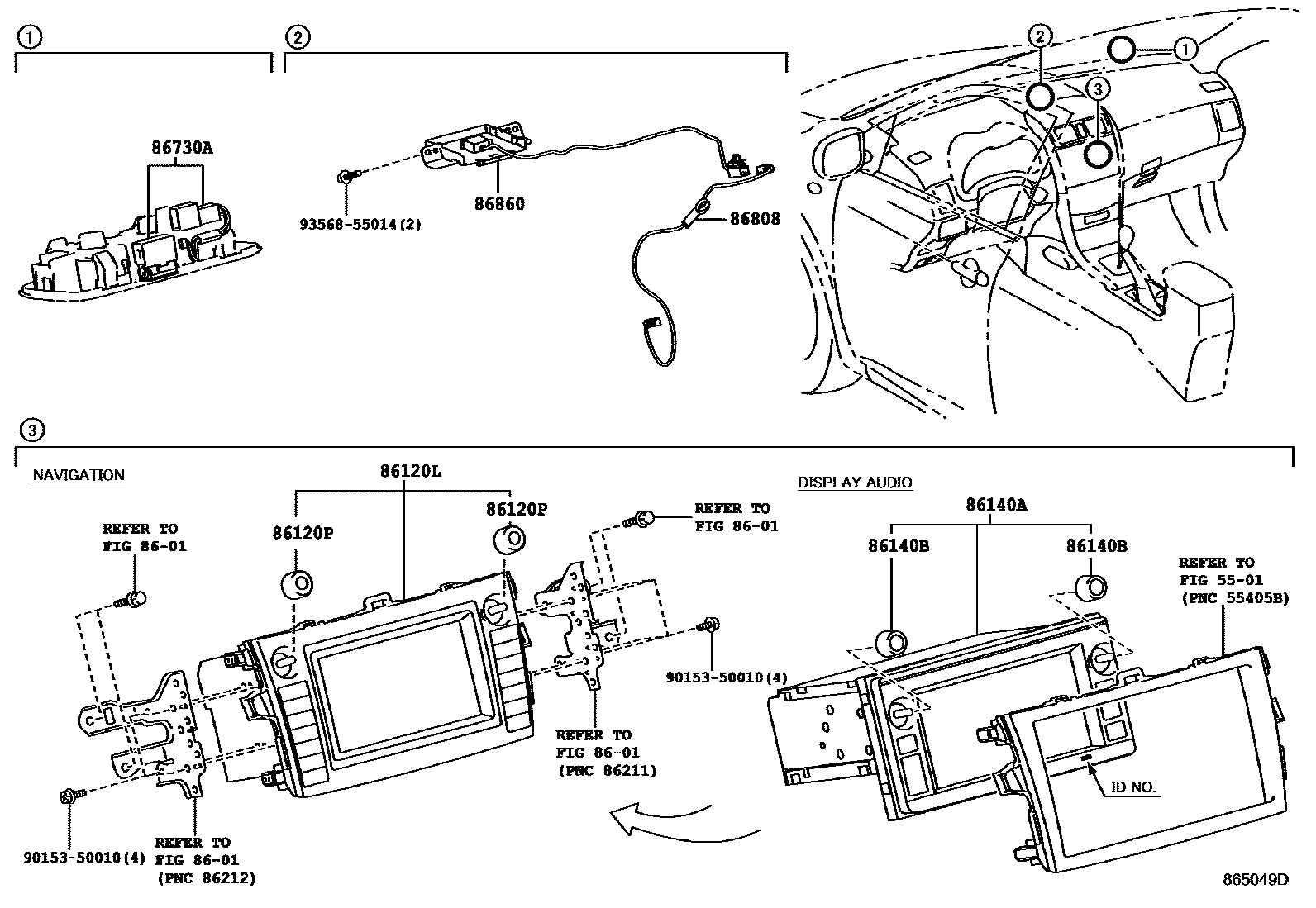

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-12E80 · 86120-12E81 · 86120-12E82 |
| 86120P | Navigation receiver switch button | 90010-24129 |
| 86140A | Radio and display receiver assembly | 86140-12060 |
| 86140B | Radio and display receiver switch button | 90010-24170 |
| 86730A | Telephone amplifier assembly | 86730-52010 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-12060 |
| 86860 | Navigation antenna assembly | 86860-12070 |
