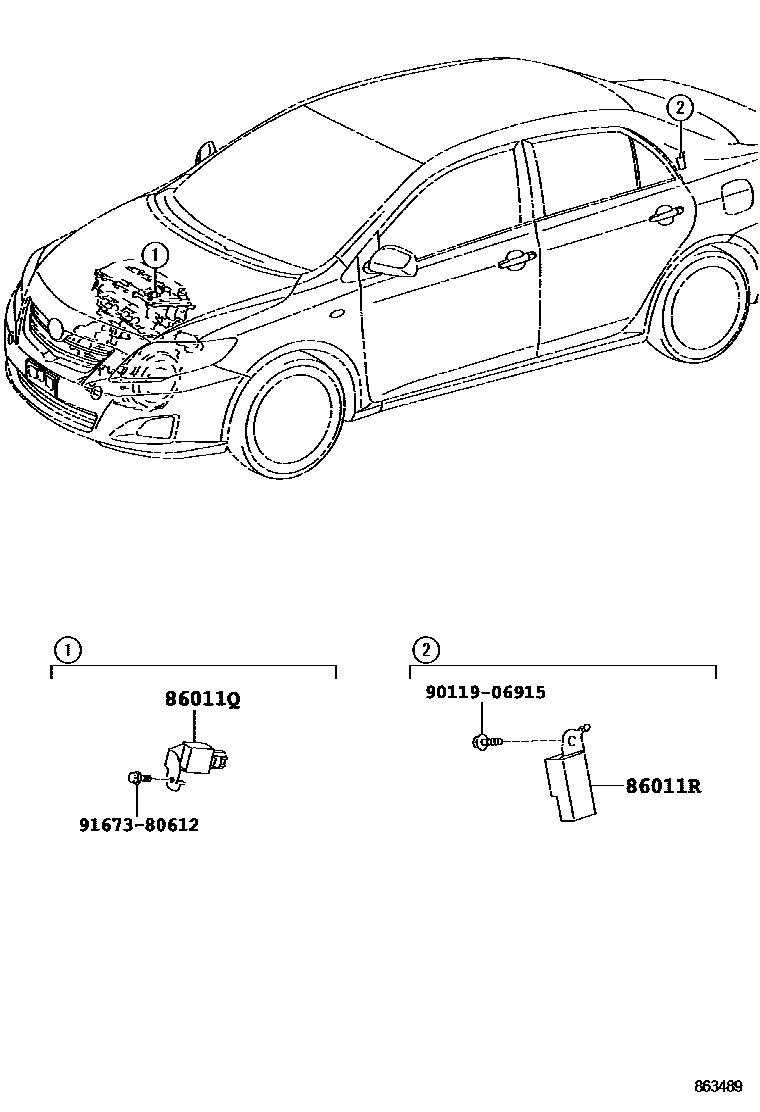

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011Q | radio settings phase modulator | 90980-04194 |
| 86011R | radio settings phase modulator | 90980-04179 |
| 86120 | Radio assembly | 86120-12B30 · 86120-12B40 · 86120-12D10 · 86120-12D20 · 86120-12E30 · 86120-12E50 · 86120-12E90 · 86120-12F20 · 86120-12F90 |
| 86120A | Radio switch knob | 90010-24123 · 90010-24132 · 90010-24141 · 90010-24145 · 90010-24149 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-12020 · 86190-52040 · 86190-53040 |
| 86203D | Stereo Part 1 Wire Harness | 86203-12420 · 86203-12421 |
| 86211 | No. 1 radio bracket | 86211-12400 · 86211-12450 |
| 86212 | No. 2 radio bracket | 86212-12380 · 86212-12440 |
