Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

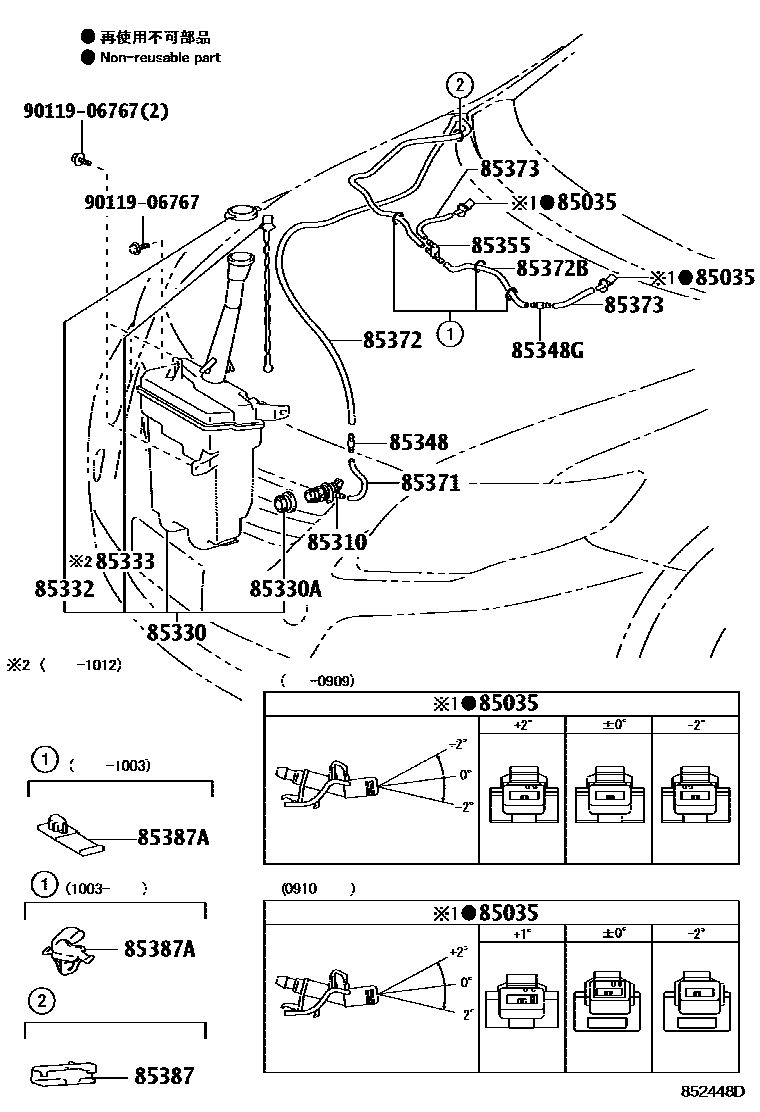

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12300 · 85381-12310 · 85381-12320 · 85381-12350 · 85381-30110 · 85381-30150 |
| 85310 | Windshield washer motor and pump assembly | 85330-60190 |
| 85330 | Windshield washer fluid tank assembly | 85315-12600 · 85315-12640 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85386-60050 |
| 85333 | Windshield washer fluid tank filter | 85312-48010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-10260 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-12840 |
| 85387A | Cleaner clip No. 2 | 82711-3A540 · 85371-12040 |
