Toyota COROLLA 防盗装置 — Figure 8424

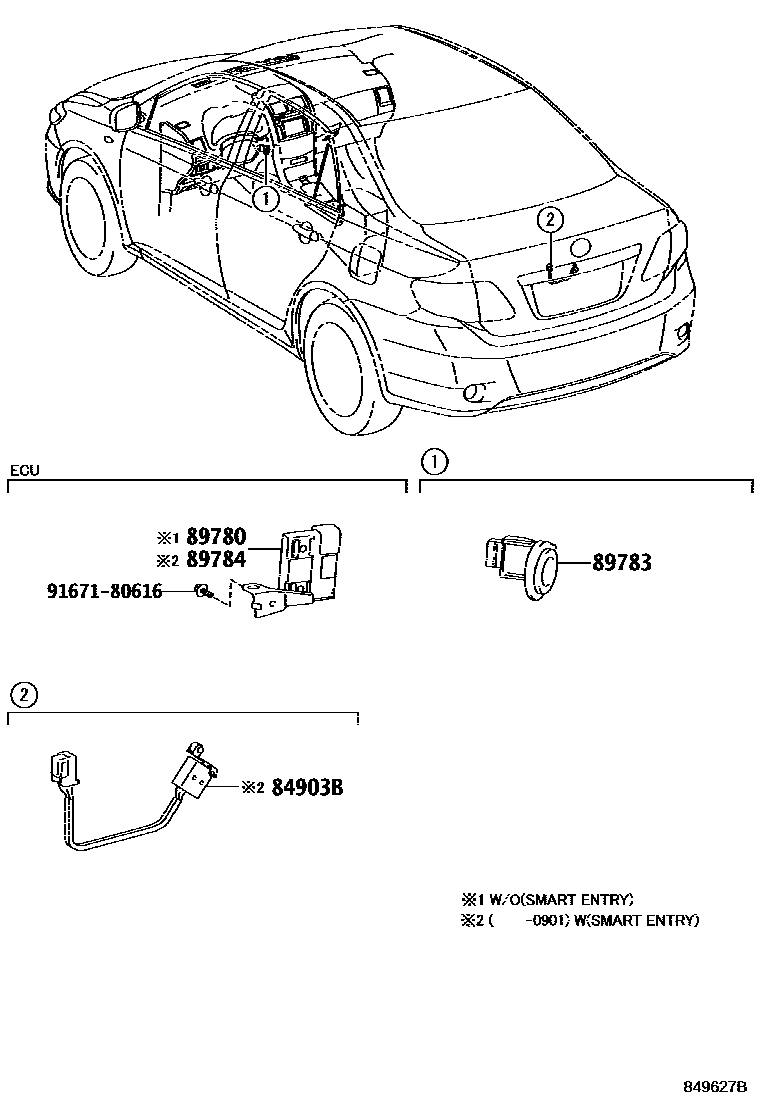

Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84903B | Door unlock switch sub-assembly | 84903-12170 |
| 89780 | Transceiver key ECU assembly | 89780-12230 · 89780-12280 |
| 89783 | transceiver key amplifier | 89783-12070 · 89783-12100 · 89783-12101 · 89783-12112 · 89783-12113 |
| 89784 | Shutdown code system ECU | 89784-12030 |
