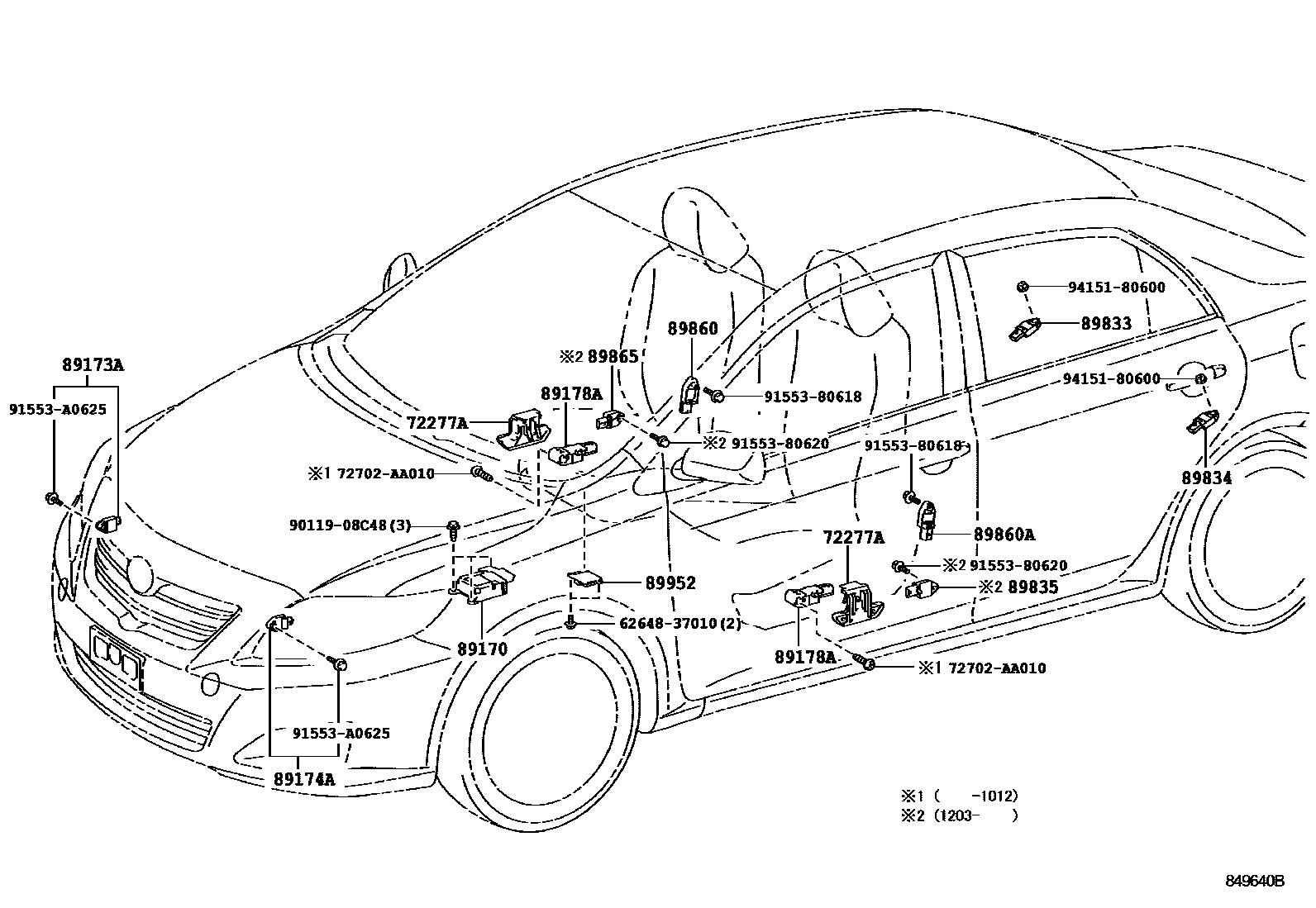

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-33010 |
| 89170 | air bag sensor assembly | 89170-02760 · 89170-02A60 · 89170-02D51 · 89170-02D52 · 89170-02D53 |
| 89173A | Right front air bag sensor | 89173-09470 · 89173-09510 · 89173-09690 |
| 89174A | Left front air bag sensor | 89173-09470 · 89173-09510 · 89173-09690 |
| 89178A | Seat position air bag sensor | 89178-33040 |
| 89833 | Right rear air bag sensor | 89831-02090 · 89831-02120 |
| 89834 | Left rear air bag sensor | 89831-02090 · 89831-02120 |
| 89835 | Left door side air bag sensor | 89831-0C090 |
| 89860 | Right side airbag sensor assembly | 89831-01010 · 89831-02110 |
| 89860A | Left side air bag sensor assembly | 89831-01010 · 89831-02110 |
| 89865 | Right door side air bag sensor | 89831-0C090 |
| 89952 | Occupant detection ECU | 89952-01010 · 89952-01011 |
