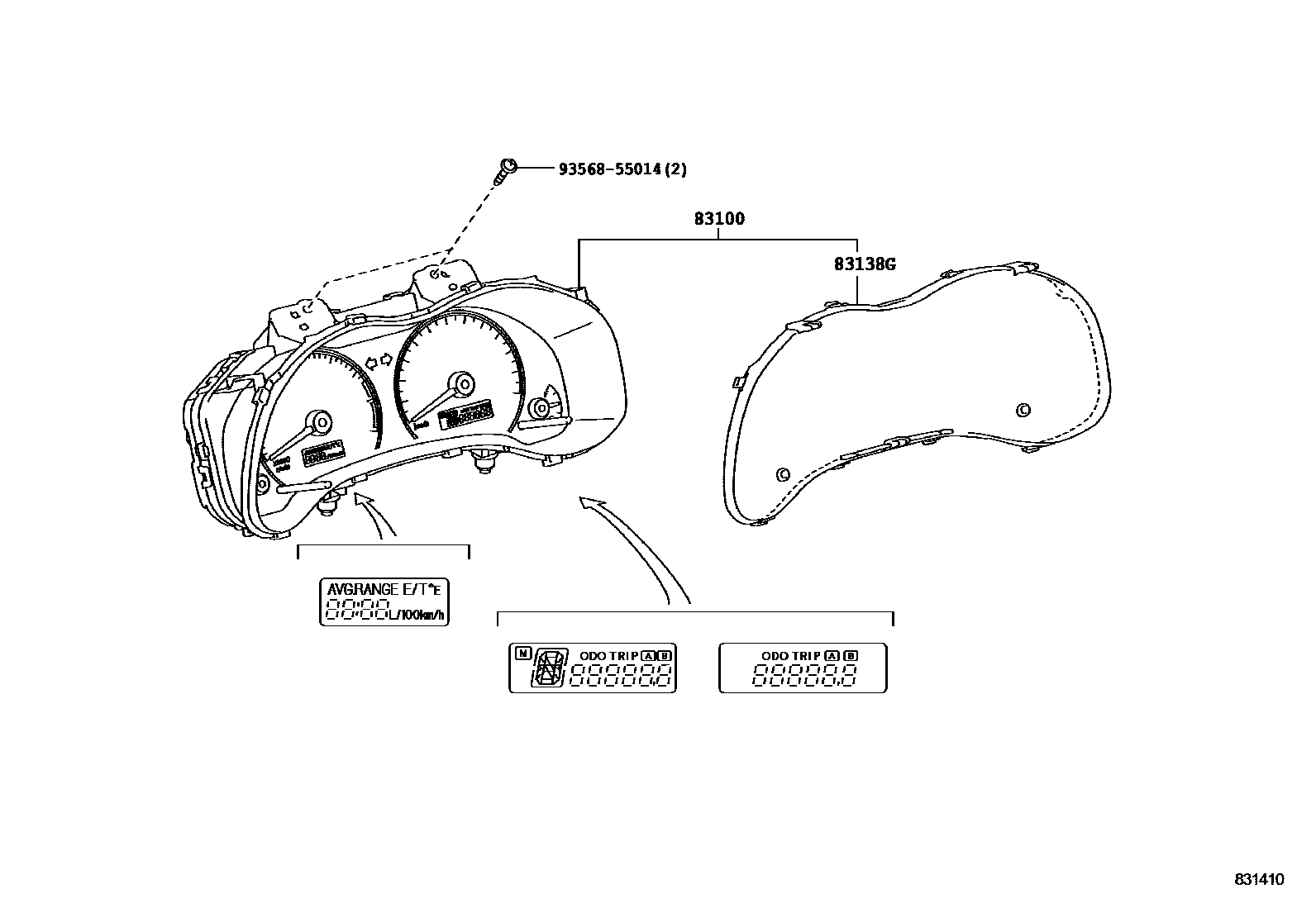

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-12N40 · 83800-12N41 · 83800-12N50 · 83800-12N51 · 83800-12Q90 · 83800-12R00 · 83800-12X50 |
| 83138G | Instrument cluster glass | 83852-12N40 · 83852-12N50 |
