Toyota COROLLA 线束和卡夹 — Figure 8202

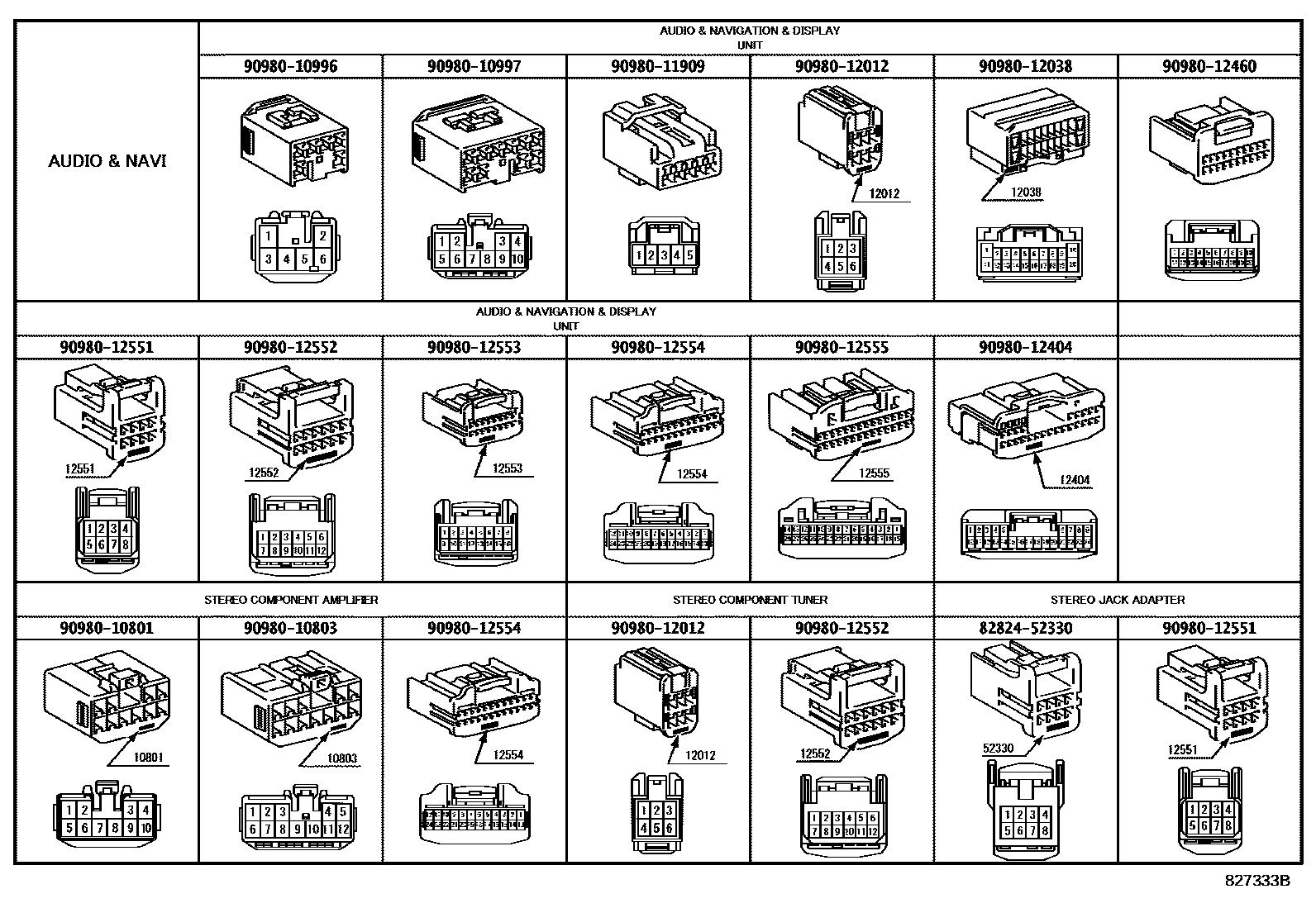

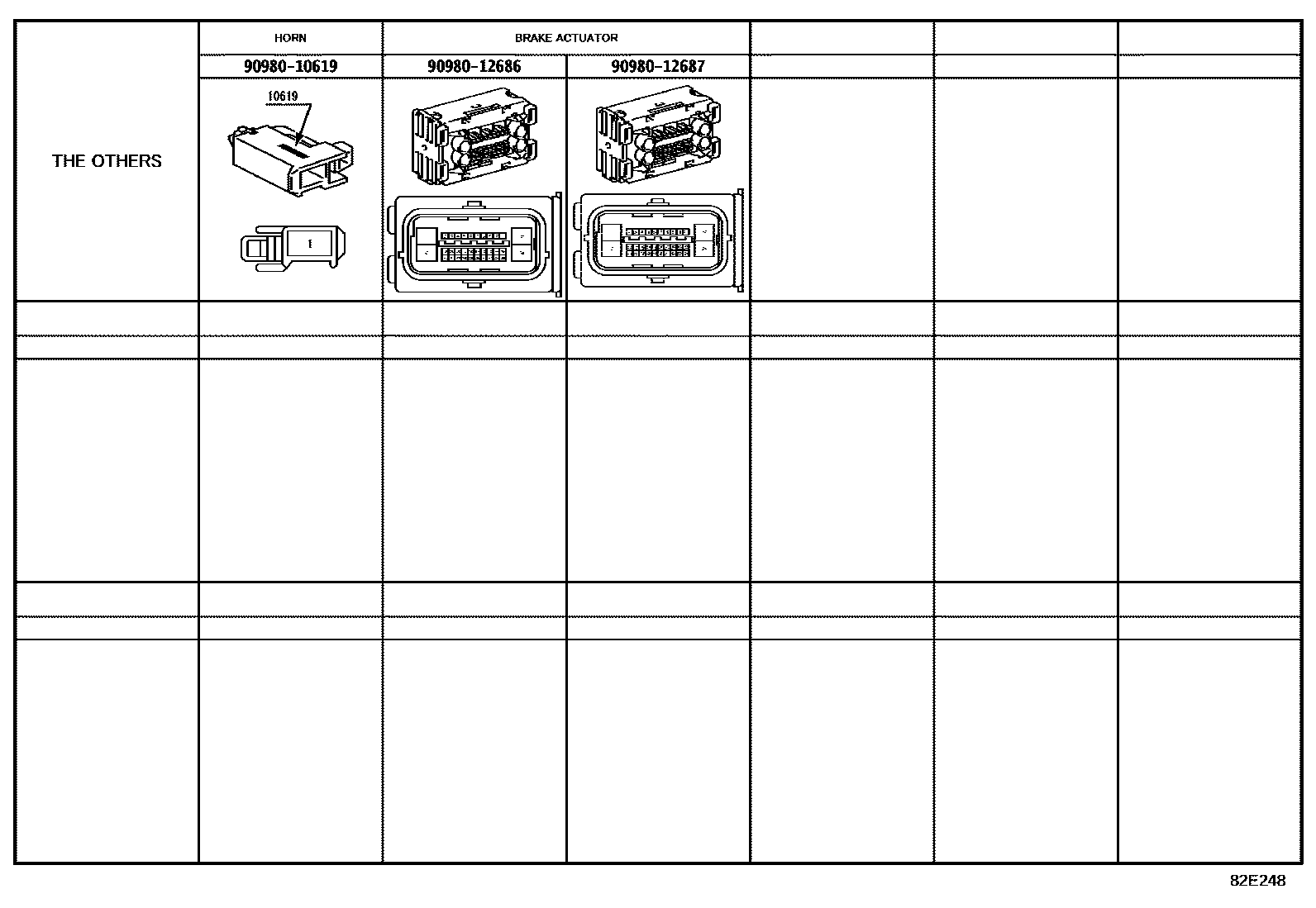

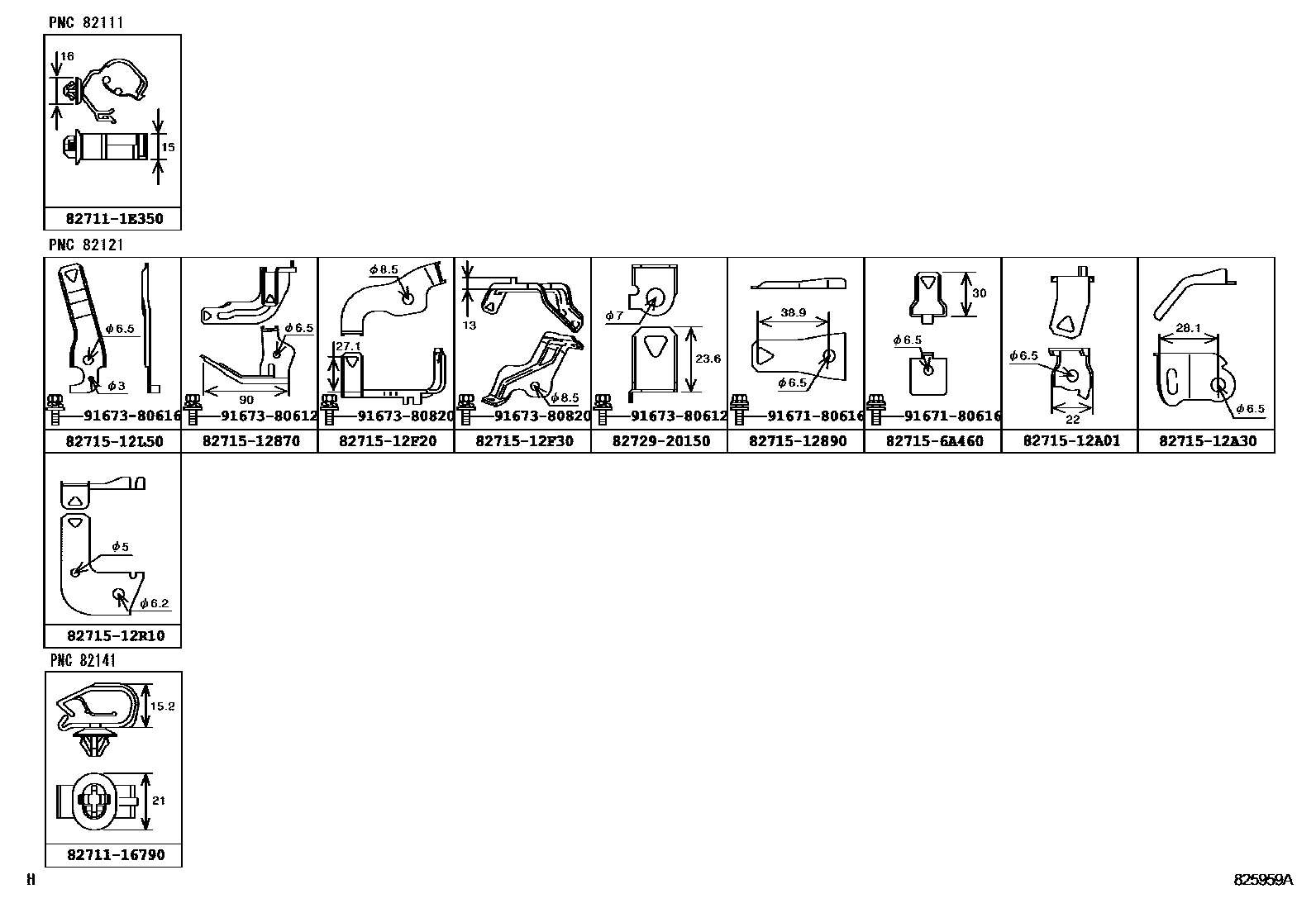

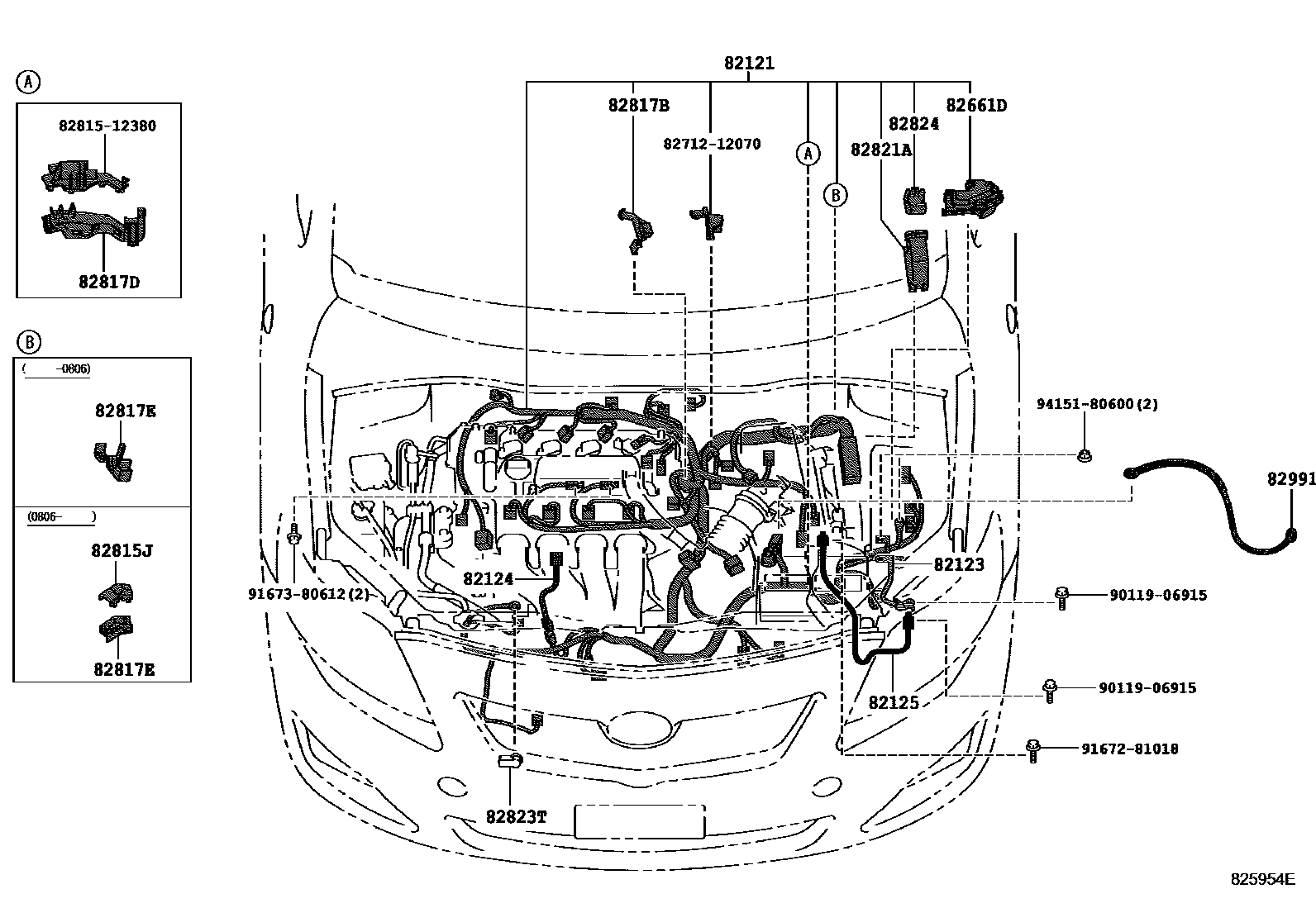

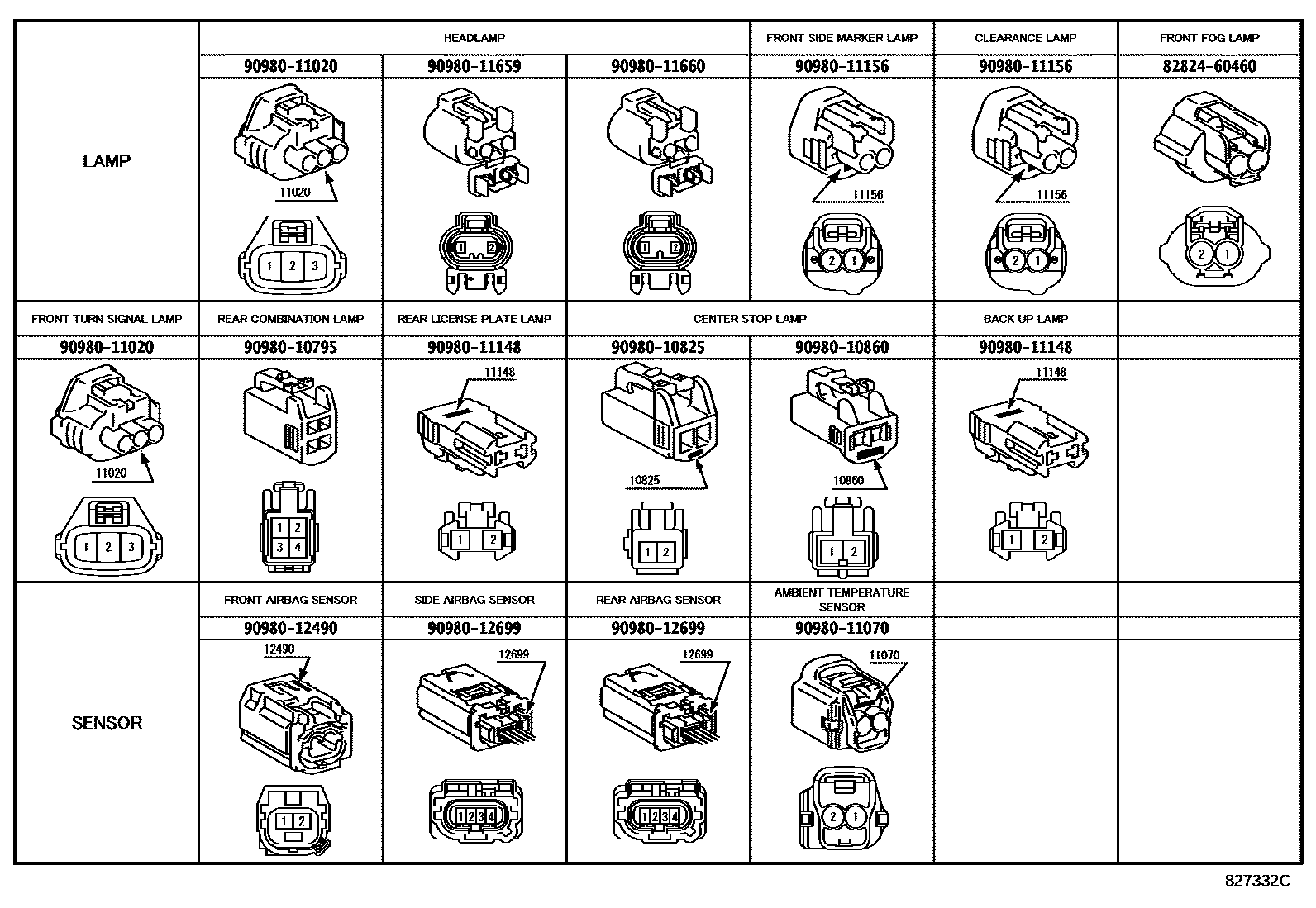

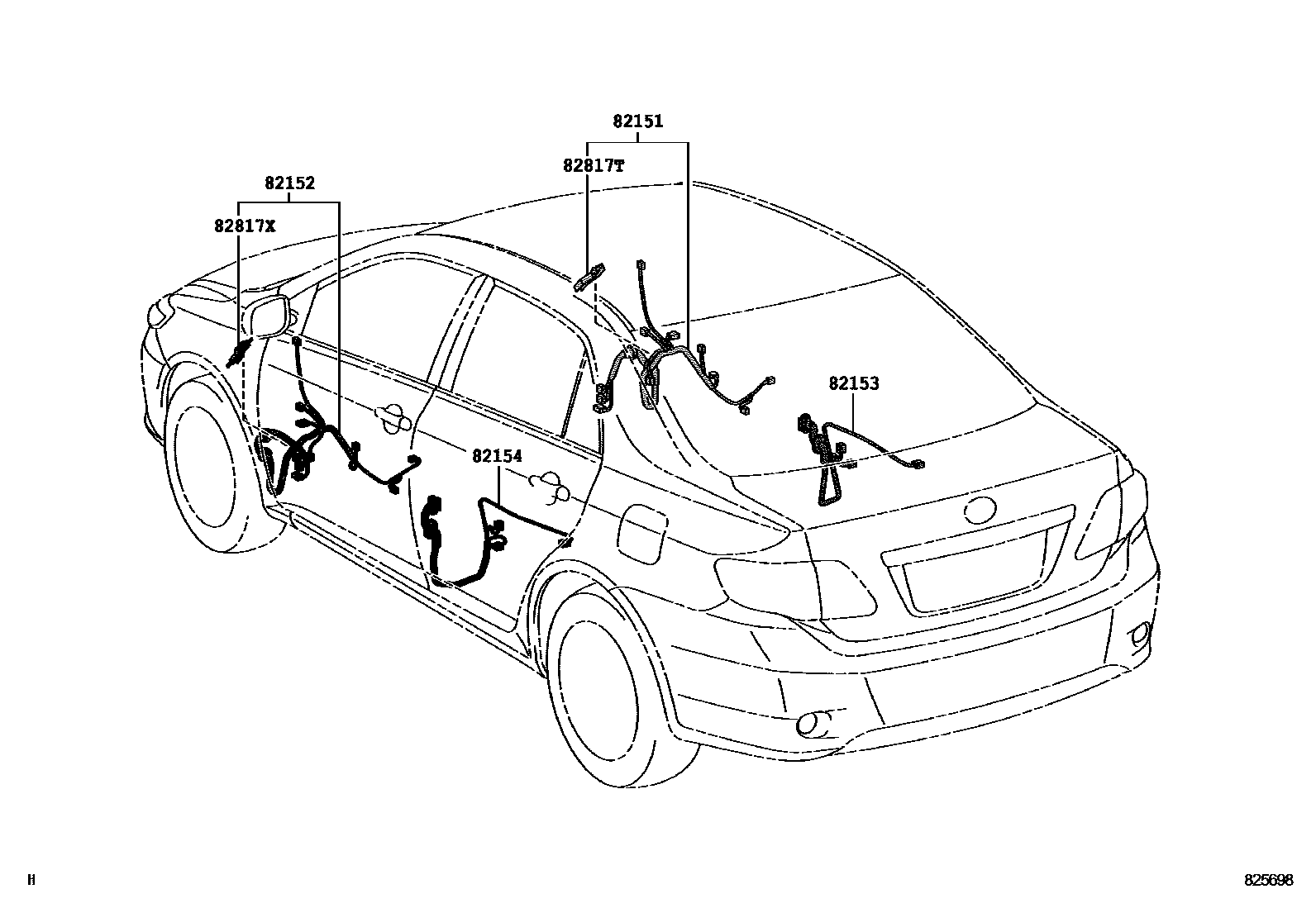

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 11 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

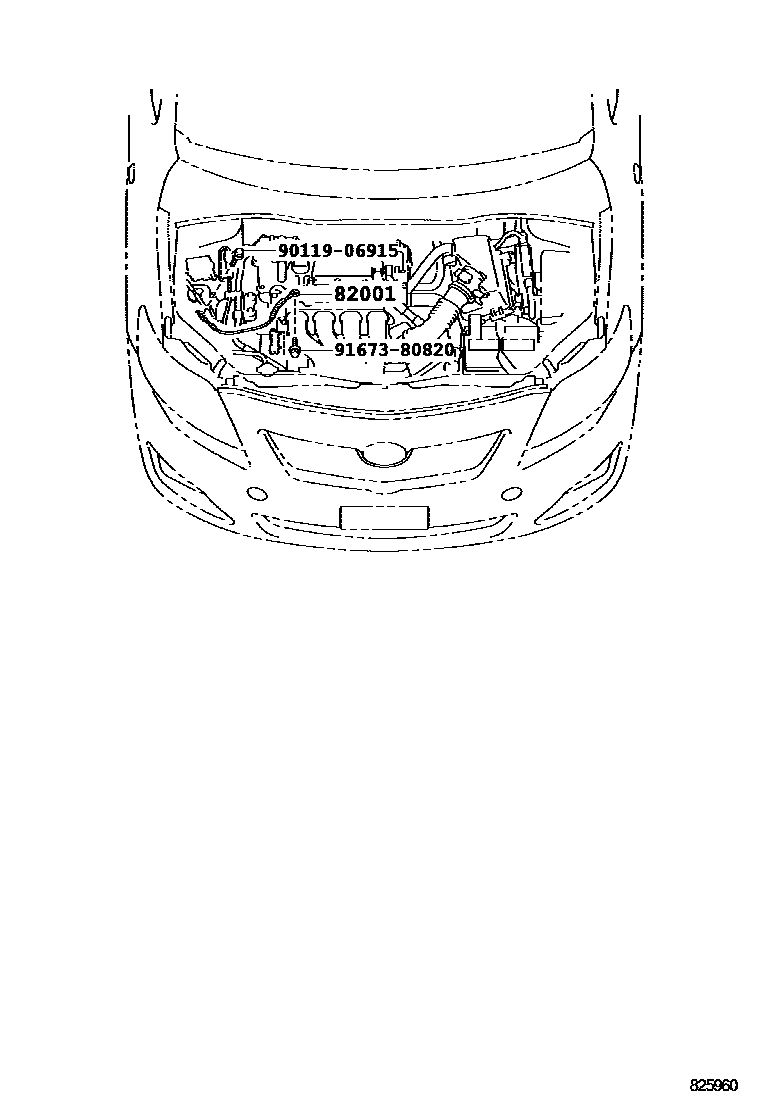

| 82001 | Connection cable No. 1 | 90980-07461 |

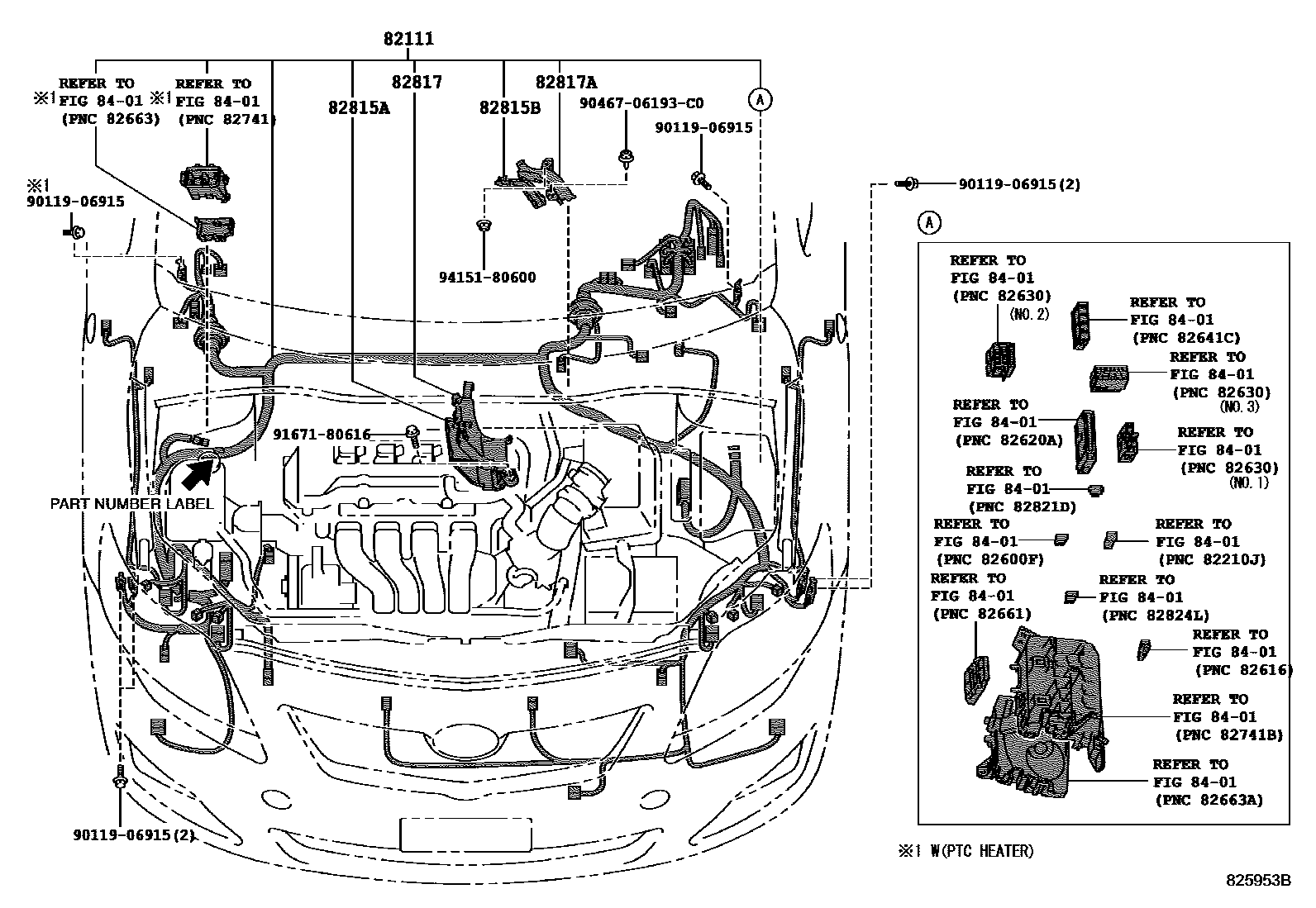

| 82111 | Engine room main wiring harness | 82111-1AF30 · 82111-1AF40 · 82111-1AJ70 · 82111-1AJ80 · 82111-1AK90 · 82111-1AS80 · 82111-1AS90 · 82111-1EJ40 · 82111-1EJ50 |
| 82121 | Engine wiring harness | 82121-12J20 · 82121-12L50 |
| 82123 | Engine No. 3 wiring harness | 82123-12470 |
| 82124 | Engine No. 4 wiring harness | 82124-02090 · 82124-12160 |
| 82125 | Transmission wiring harness | 82125-12510 |

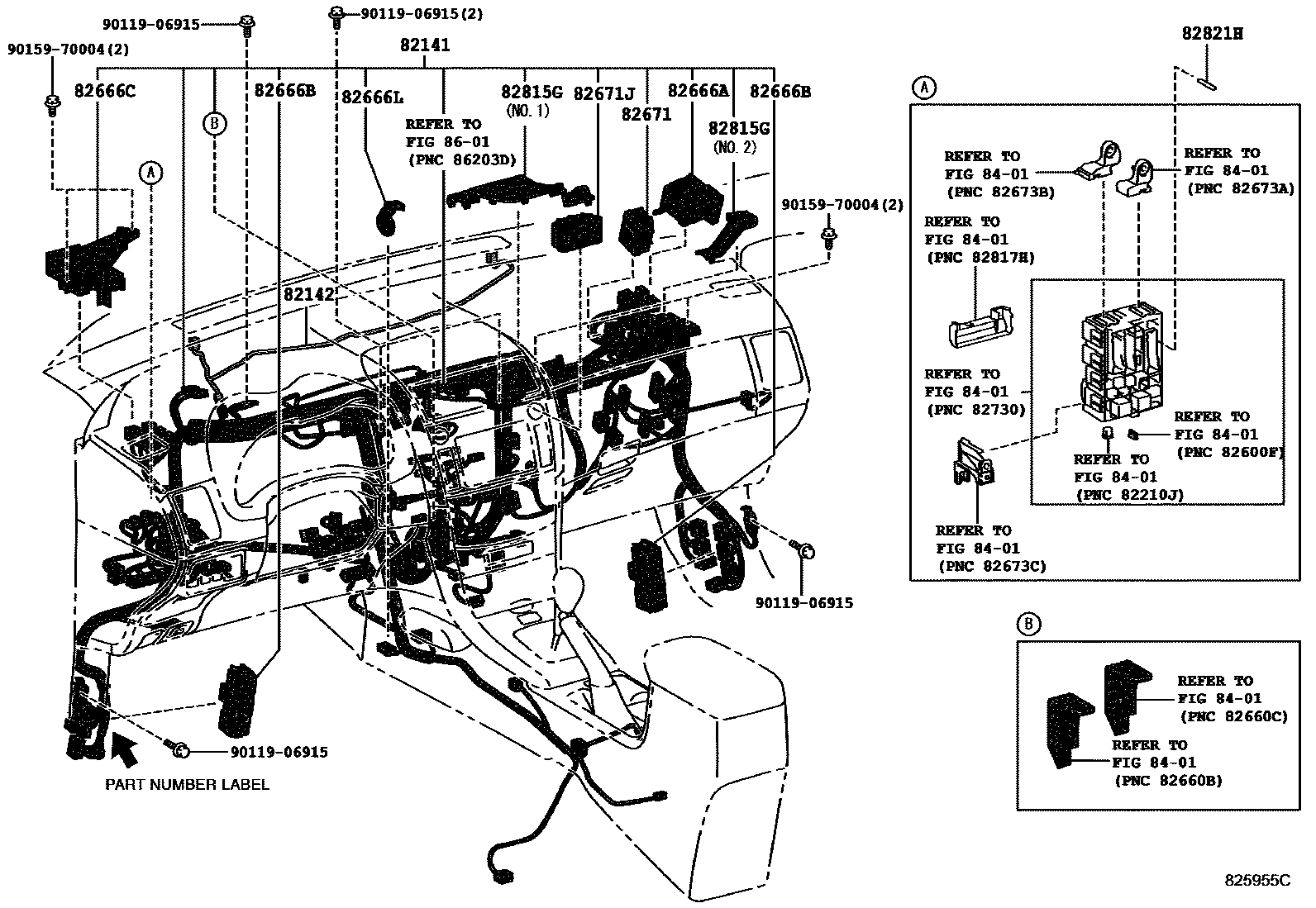

| 82141 | Dashboard wiring harness | 82141-1HP00 · 82141-1HP10 · 82141-1KV20 · 82141-1KV30 · 82141-1KV31 · 82141-1LB30 · 82141-1LB31 · 82141-1LU10 · 82141-1LU11 · 82141-1ND70 · 82141-1NE90 · 82141-1NF00 · 82141-1NU90 · 82141-1TQ50 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12380 · 82142-12400 |
| 82151 | Right front door wiring harness | 82151-12J30 · 82151-12J40 · 82151-12J60 · 82151-12J70 · 82151-12M20 · 82151-12M30 · 82151-12N30 · 82151-12N31 · 82151-12W20 · 82151-12W21 · 82151-12W30 · 82151-12W31 · 82151-12W32 · 82151-12W50 · 82151-1AA70 |
| 82152 | Left front door wiring harness | 82152-12J30 · 82152-12J31 · 82152-12J40 · 82152-12J41 · 82152-12J60 · 82152-12J70 · 82152-12L50 · 82152-12M20 · 82152-12M30 · 82152-12N40 · 82152-12N41 · 82152-12Z70 |
| 82153 | Rear door wiring harness No. 1 | 82153-12690 · 82153-12880 |
| 82154 | Rear door wiring harness No. 2 | 82154-12640 · 82154-12830 |

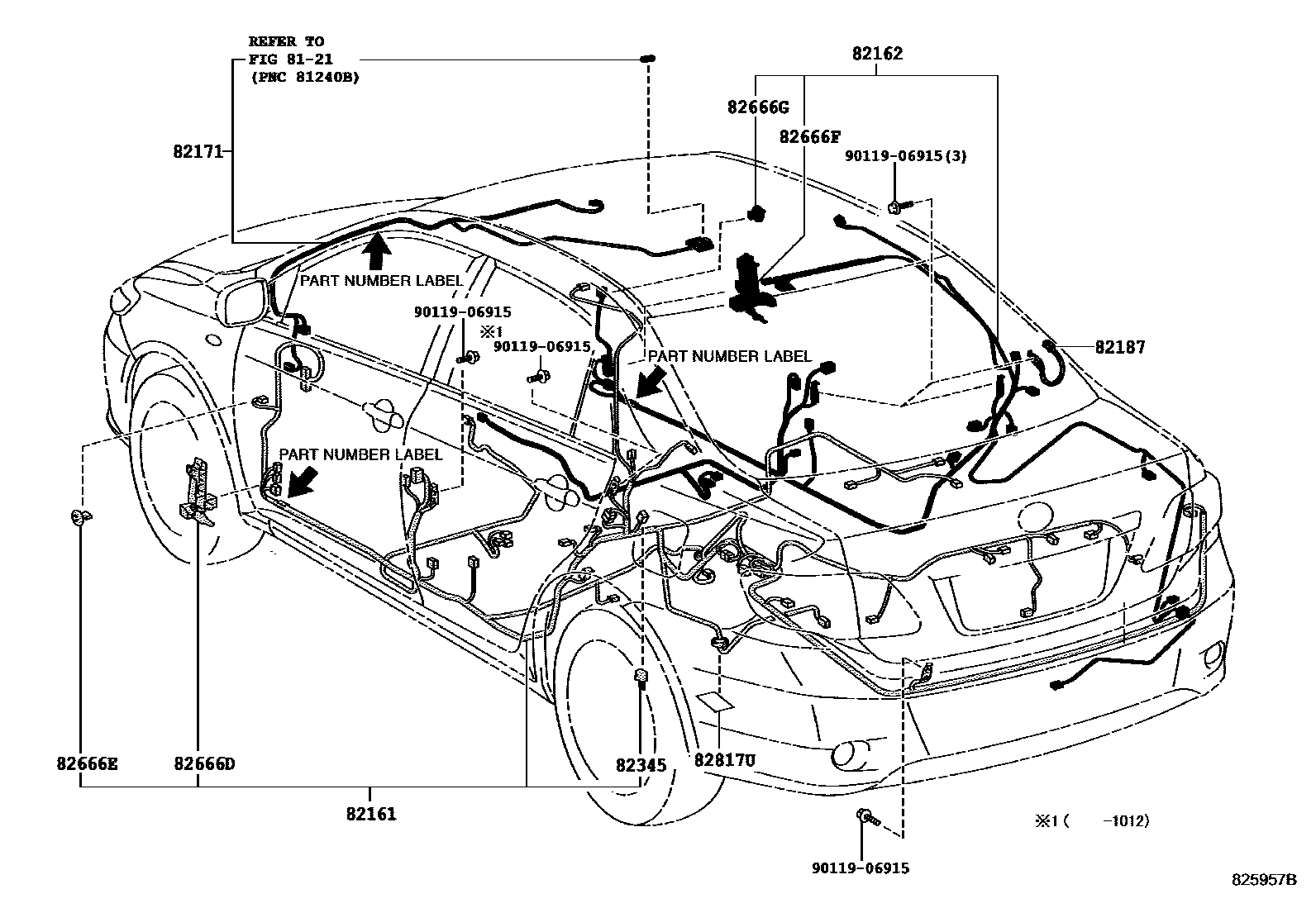

| 82161 | floor wiring harness | 82161-12K20 · 82161-12T80 · 82161-12T81 · 82161-1AE10 |
| 82162 | Floor wiring harness No. 2 | 82162-12D50 · 82162-12F50 · 82162-12N20 · 82162-12Q30 |
| 82171 | Roof No. 1 wiring harness | 82171-12K20 · 82171-12N90 |
| 82187 | Rear window wiring harness No. 2 | 82187-12210 |

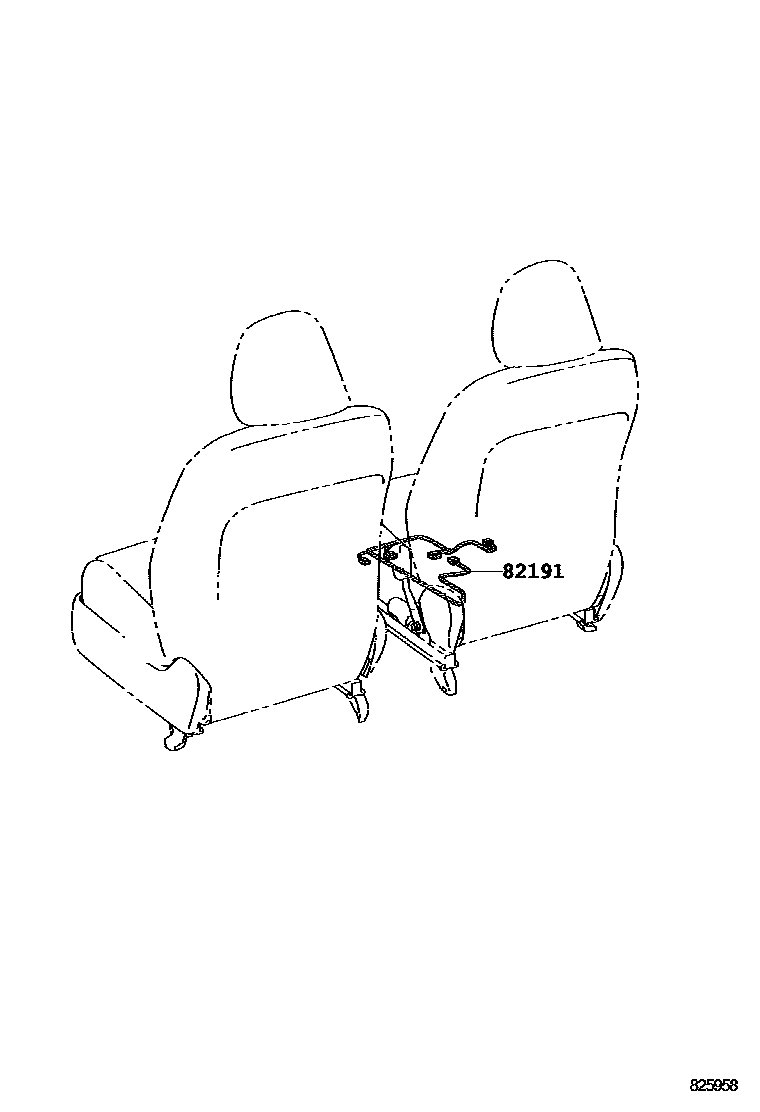

| 82191 | Front right seat wiring harness | 82191-12050 |
| 82345 | diode | 82345-12050 |
| 82661D | No. 1 relay box side cover | 82661-12280 |
| 82666A | Connector holder No. 2 | 82666-12350 |
| 82666B | No. 3 connector holder | 82666-12360 |
| 82666C | No. 4 connector holder | 82666-12440 |
| 82666D | No. 5 connector holder | 82666-12480 |
| 82666E | No. 6 connector holder | 82666-20280 |
| 82666F | No. 7 connector holder | 82666-12470 |
| 82666G | No. 8 connector holder | 82666-20280 |
| 82666L | No. 9 connector holder | 82666-12450 |
| 82671 | junction box | 82671-12260 · 82671-12340 |
| 82671J | No. 2 junction box | 82671-12250 |
| 82815A | Wiring harness protector cover | 82815-12250 |
| 82815B | Wiring harness protector cover | 82815-12270 |
| 82815G | Wiring harness protector cover | 82815-12300 · 82815-12340 |
| 82815J | No. 7 wire harness protector cover | 82815-12180 |
| 82817 | No. 1 wire harness protection device | 82817-12D50 |
| 82817A | No. 2 wire harness protection device | 82817-12D70 |
| 82817B | No. 3 wire harness protection device | 82817-12G60 |
| 82817D | No. 5 wire harness protection device | 82817-12G50 |
| 82817E | No. 6 wire harness protection device | 82817-12B60 · 82817-12J10 |
| 82817T | No. 15 wire harness protection device | 82817-12F30 |
| 82817U | No. 16 wire harness protection device | 82817-1A640 · 82817-52710 |
| 82817X | No. 17 wire harness protection device | 82817-12F40 |
| 82821A | Connector cover | 82821-12560 |
| 82821H | Connector cover | 82821-52020 |
| 82823T | BOUCHON, BORNE ALTERNATEUR | 82823-22050 |
| 82824 | Harness connector | 82824-34100 |
| 82991 | Fuse repair line | 82991-12110 |
