Toyota COROLLA Headlamp — Figure 8101

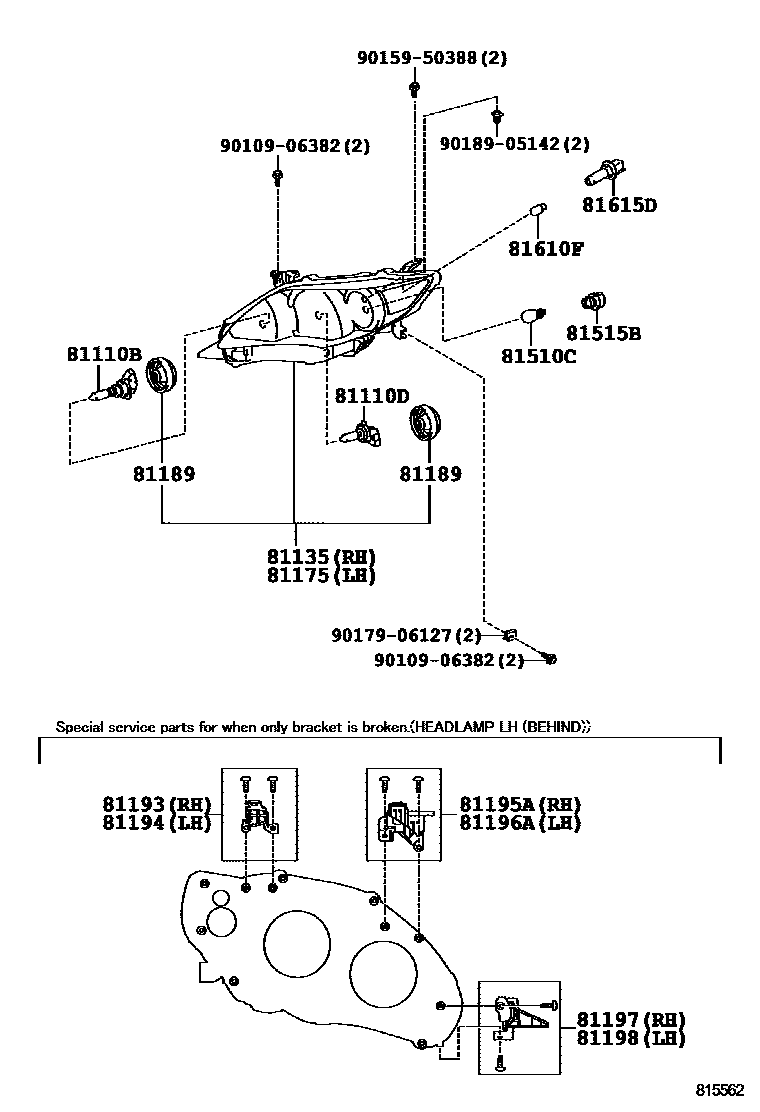

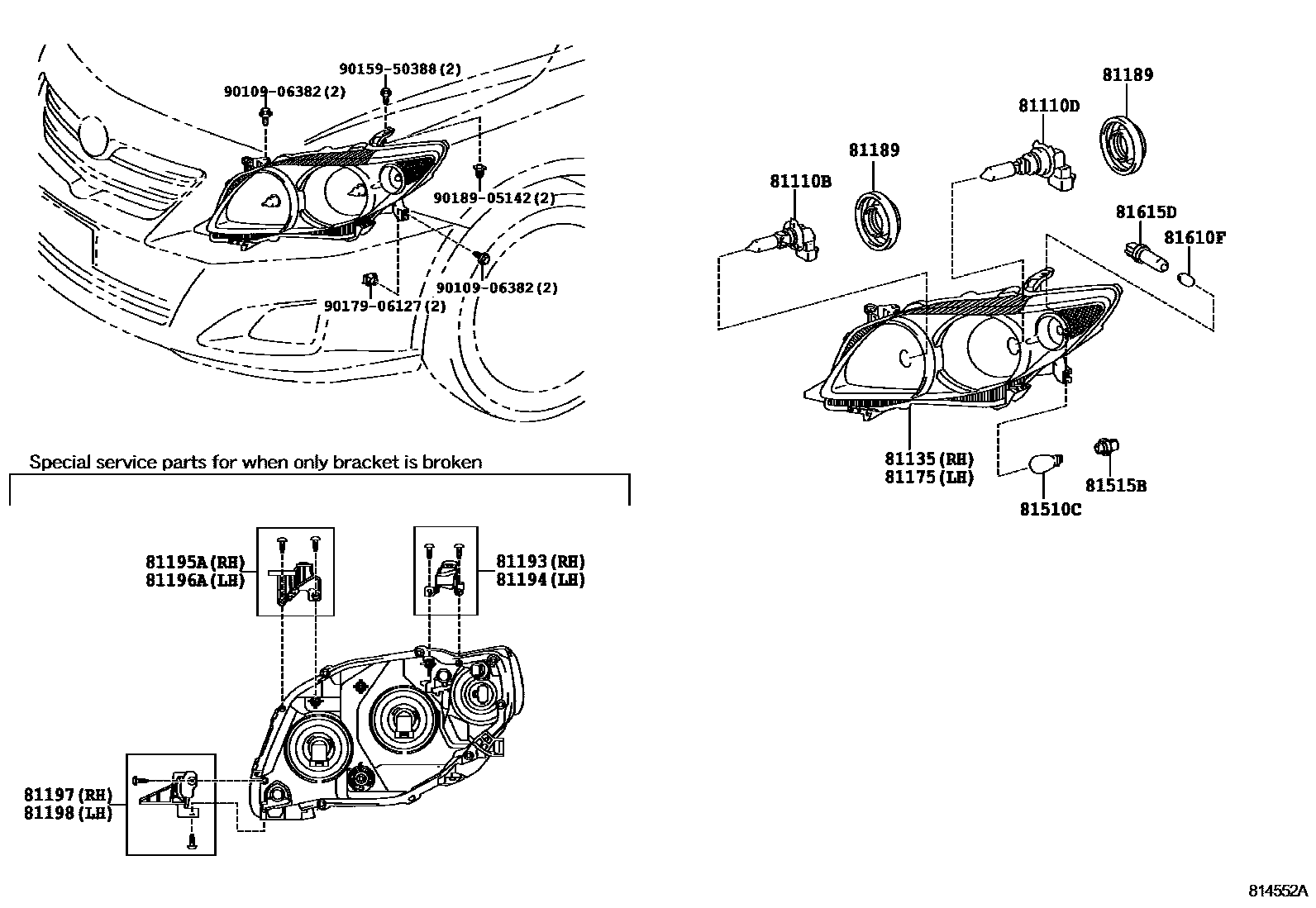

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13047 |
| 81135 | Right headlight assembly | 81130-12C20 · 81130-12F10 |
| 81175 | Left headlight assembly | 81170-12C20 · 81170-12F10 |
| 81189 | headlight cover | 90075-65006 |
| 81193 | Right headlight upper protective ring | 81193-12050 · 81193-12120 |
| 81194 | Left headlight upper protective ring | 81194-12050 · 81194-12110 |
| 81195A | Right headlight lower protection ring | 81195-12060 · 81195-12170 |
| 81196A | Left headlight lower protection ring | 81196-12060 · 81196-12170 |
| 81197 | Right headlight lower bracket | 81197-12060 · 81197-12110 |
| 81198 | Left headlight lower bracket | 81198-12060 · 81198-12120 |
| 81510C | Bulb (for front turn signal lamp) | 90981-AF003 · 90981-AF004 |
| 81515B | Front turn signal lamp holder | 90075-60060 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60077 |
