Toyota COROLLA 挡泥板和扰流板 — Figure 7601

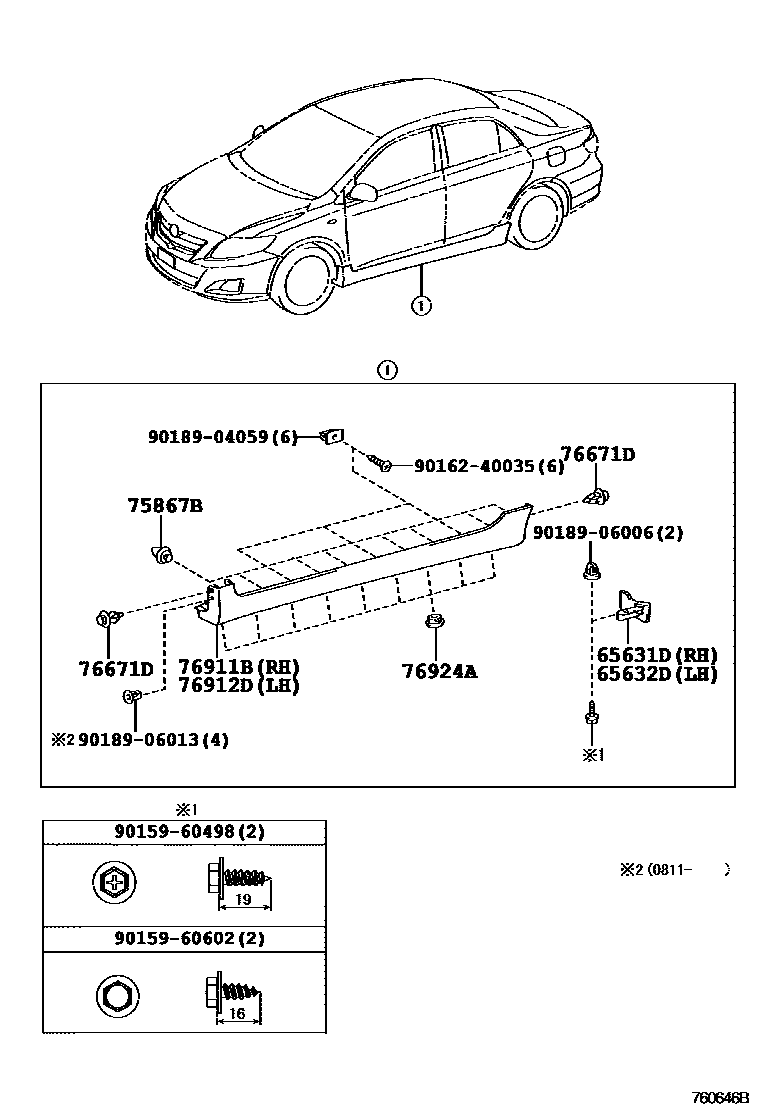

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-12060 |
| 65632D | Left rear wheel house front panel | 65632-12060 |
| 75867B | Door sill panel protective strip clip | 75867-12040 |
| 76671D | Side fender clips | 90467-06165 |
| 76911B | right fender | 76911-12904 · 76911-12905 |
| 76912D | left fender | 76912-12903 · 76912-12904 |
| 76924A | No. 2 side fender fixings | 76924-12040 |
