Toyota COROLLA 后防护条 — Figure 7504

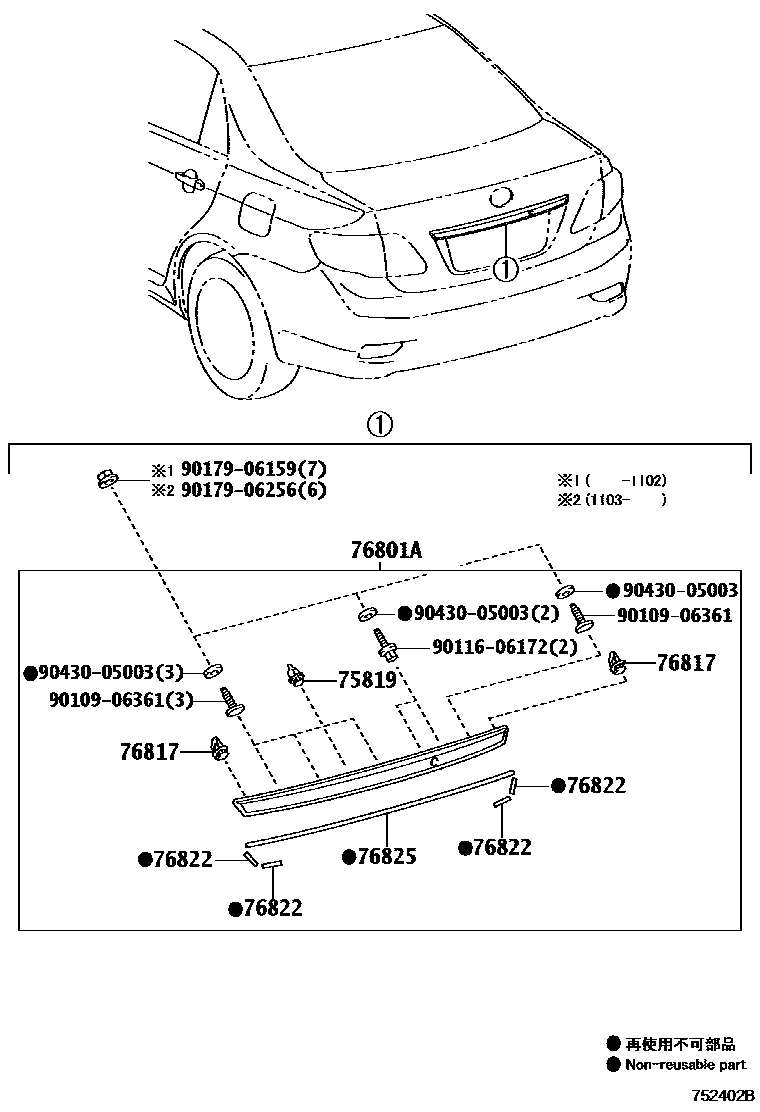

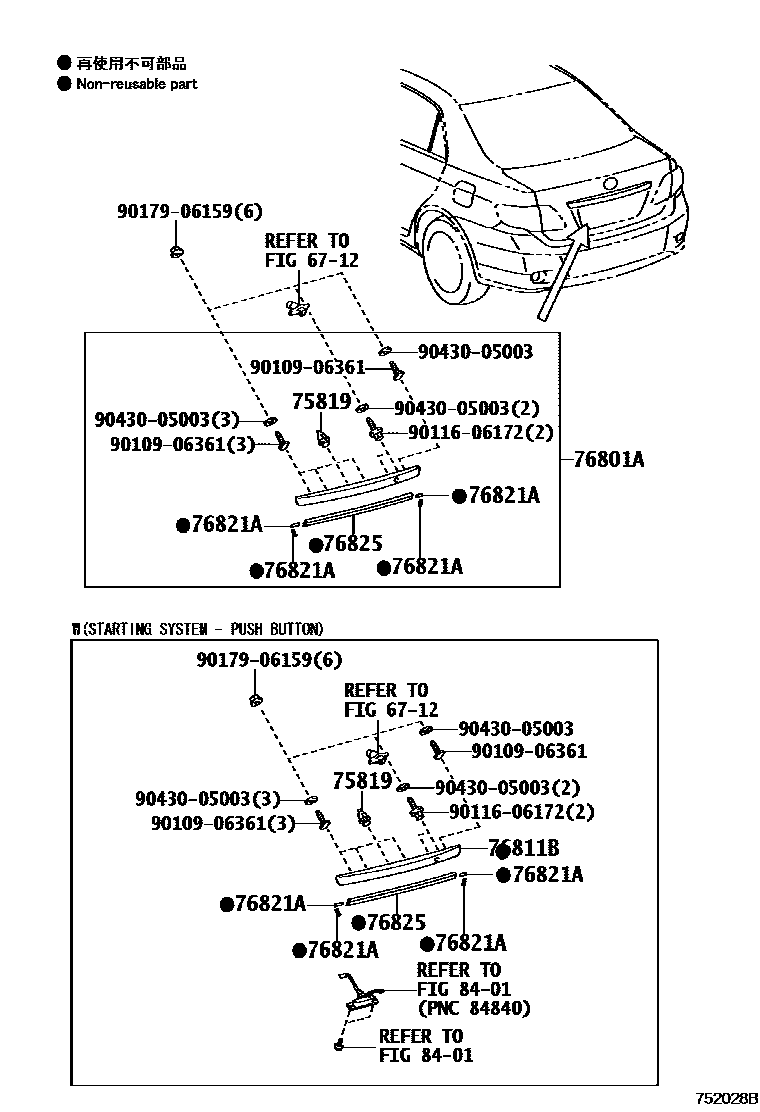

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-12B90 |
| 76817 | Rear door exterior decorative strip clip | 76817-12090 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12210 |
| 76822 | Protective cover under rear door trim strip | 76822-12130 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-12050 · 76825-12120 |
