Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 4 PNC and OE references.

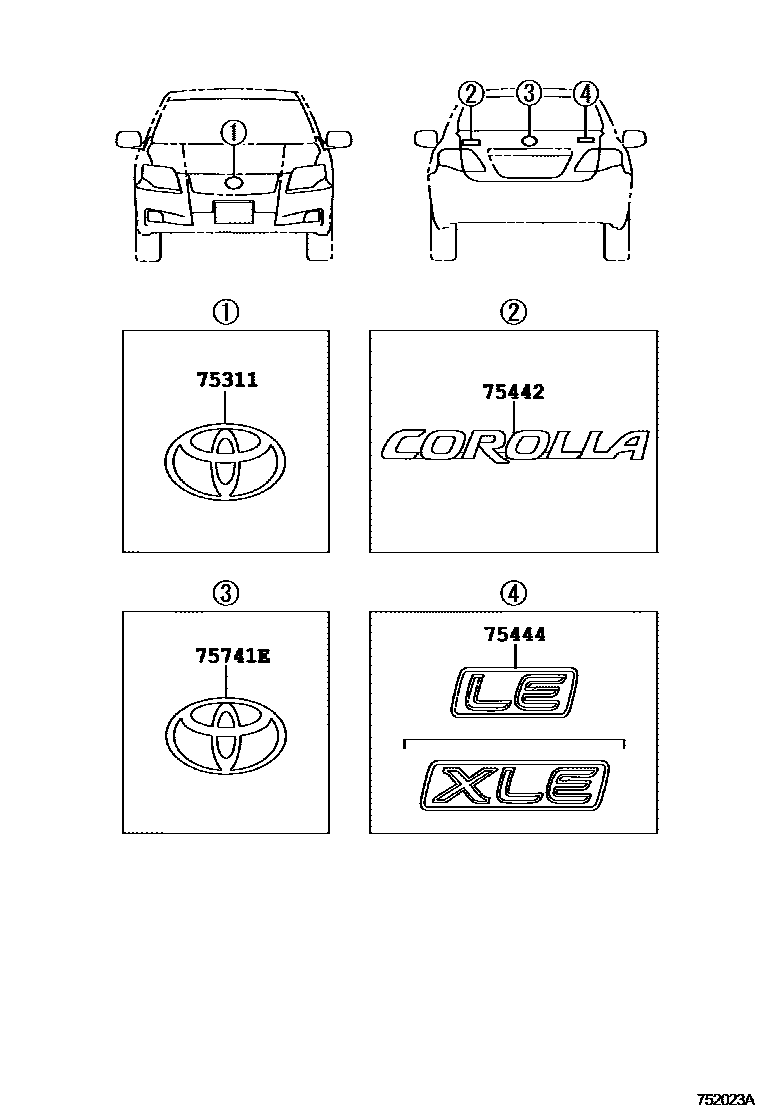

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 752023A
丰田徽标和铭牌(车外和车内) — 752023A (200712 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-12380
75442Trunk door number plate No. 275442-12A11 · 75442-12B10
75444Trunk door No. 4 nameplate75444-12B20 · 75444-12C30
75741Elogo90975-02070 · 90975-02071
