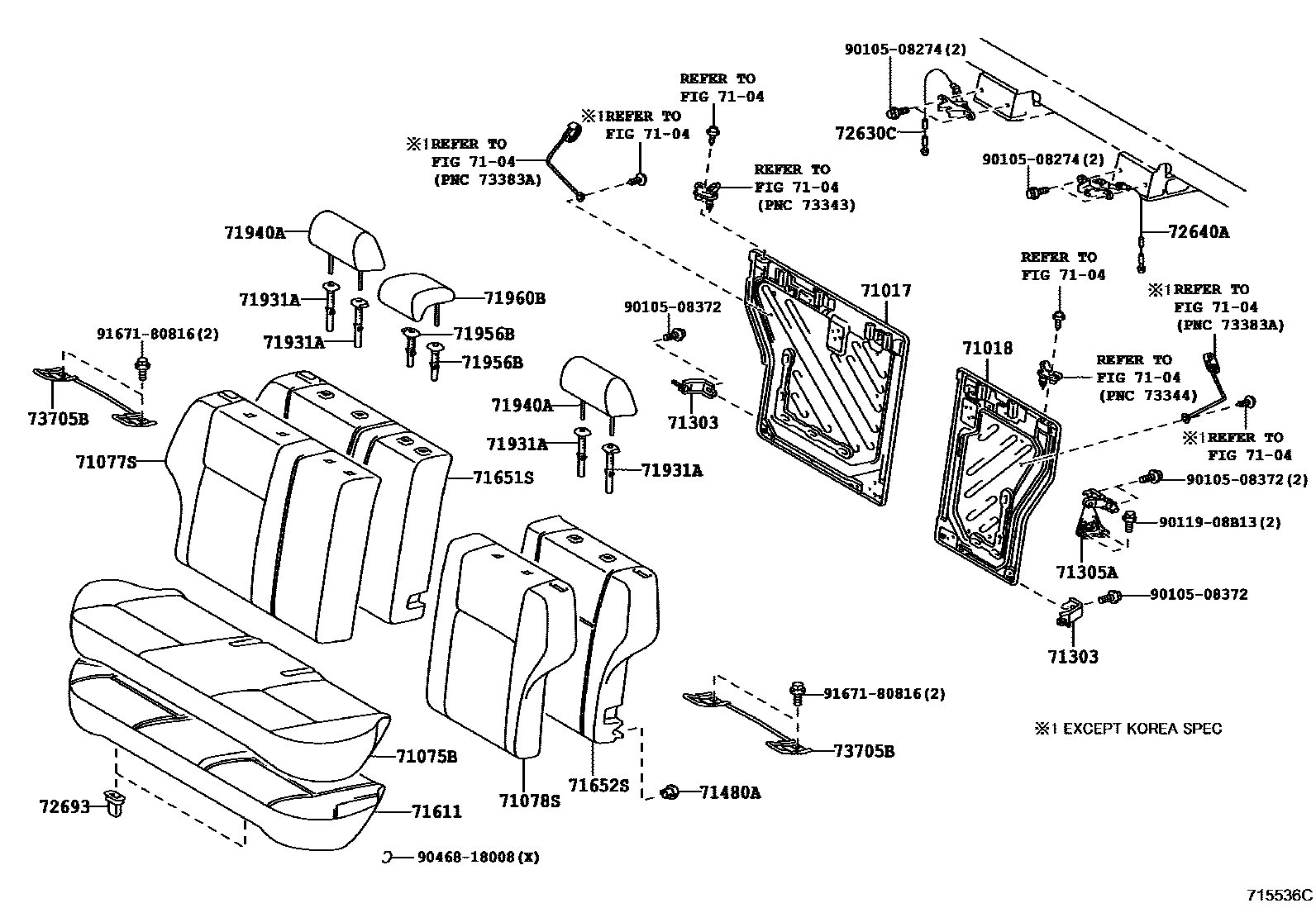

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12A40 · 71017-12A90 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12500 · 71018-12520 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12180 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12220 |
| 71611 | Rear seat cushion cushion | 71503-12190 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12A10 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12750 |
| 72630C | Rear right seat back lock assembly | 72630-12390 |
| 72640A | Rear left seat back lock assembly | 72640-12360 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705B | Cross anchor bracket sub-assembly | 73705-12070 |
