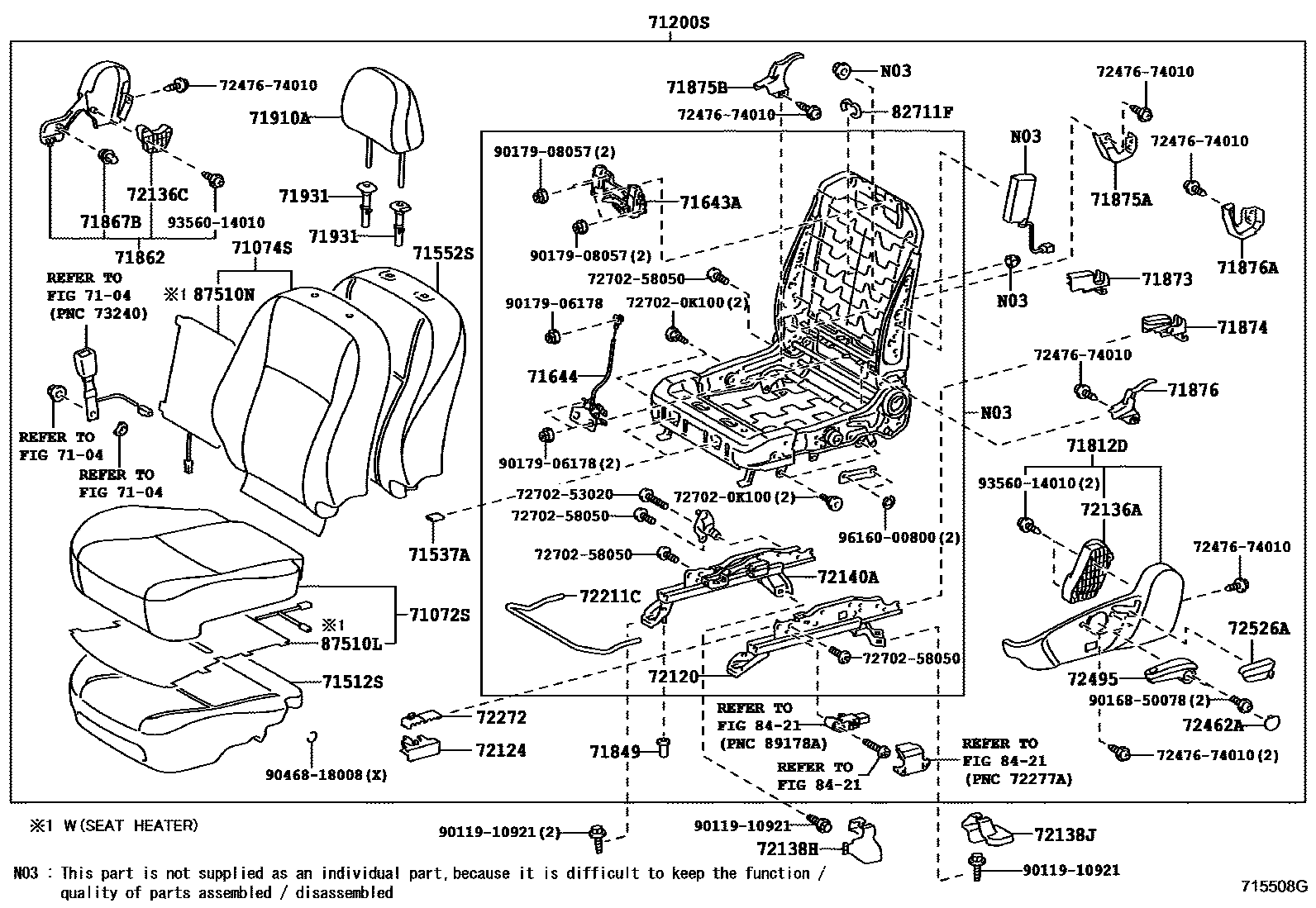

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

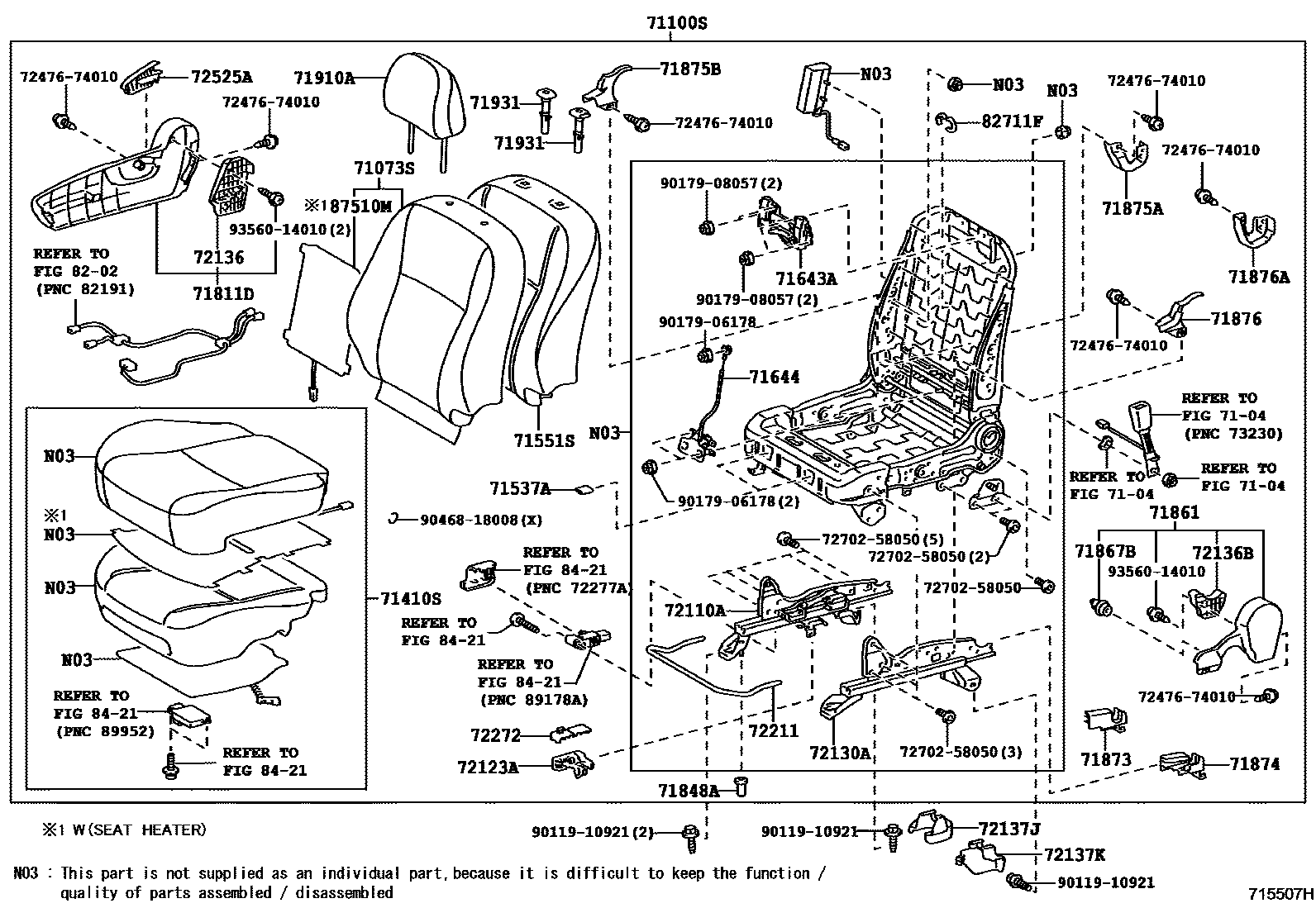

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71512S | Front left seat cushion cushion (for split seats) | 71512-12360 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12B20 · 71551-12C90 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12460 · 71552-12600 |
| 71643A | Active head restraint upper unit | 71643-12011 |
| 71644 | Active head restraint lower unit | 71644-12030 |
| 71848A | Right seat adjuster cover | 71848-26010 |
| 71849 | left seat adjuster cover | 71848-26010 |
| 71867B | Clip (for front seat cushion inner guard) | 71769-33020 |
| 71873 | Front right seat cushion lower guard panel | 71873-12060 |
| 71874 | Front left seat cushion lower guard | 71874-12060 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-58060 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-58060 |
| 72110A | Front right seat outer slide rail assembly | 72110-12240 |
| 72120 | Front left seat outer slide rail assembly | 72120-12210 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-12140 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-12120 |
| 72130A | Front right seat inner slide rail assembly | 72130-12840 |
| 72136 | No. 1 seat slide rail lower rail | 72136-12010 |
| 72136A | No. 2 seat slide rail lower rail | 72136-12020 |
| 72136B | No. 3 seat slide rail lower rail | 72136-12050 |
| 72136C | No. 4 seat slide rail lower rail | 72136-12060 |
| 72140A | Front left seat inner slide rail assembly | 72140-12710 |
| 72211 | Seat slide adjustment handle | 72211-21020 |
| 72211C | Seat slide adjustment handle | 72211-21020 |
| 72272 | Seat rail control cable clip | 72272-12020 |
| 82711F | Wire harness clip | 82711-2B660 |
| 87510L | Front left seat cushion heater assembly | 87510-12270 |
| 87510M | Front right seat back heater assembly | 87510-12280 |
| 87510N | Front left seat back heater assembly | 87510-12280 |
