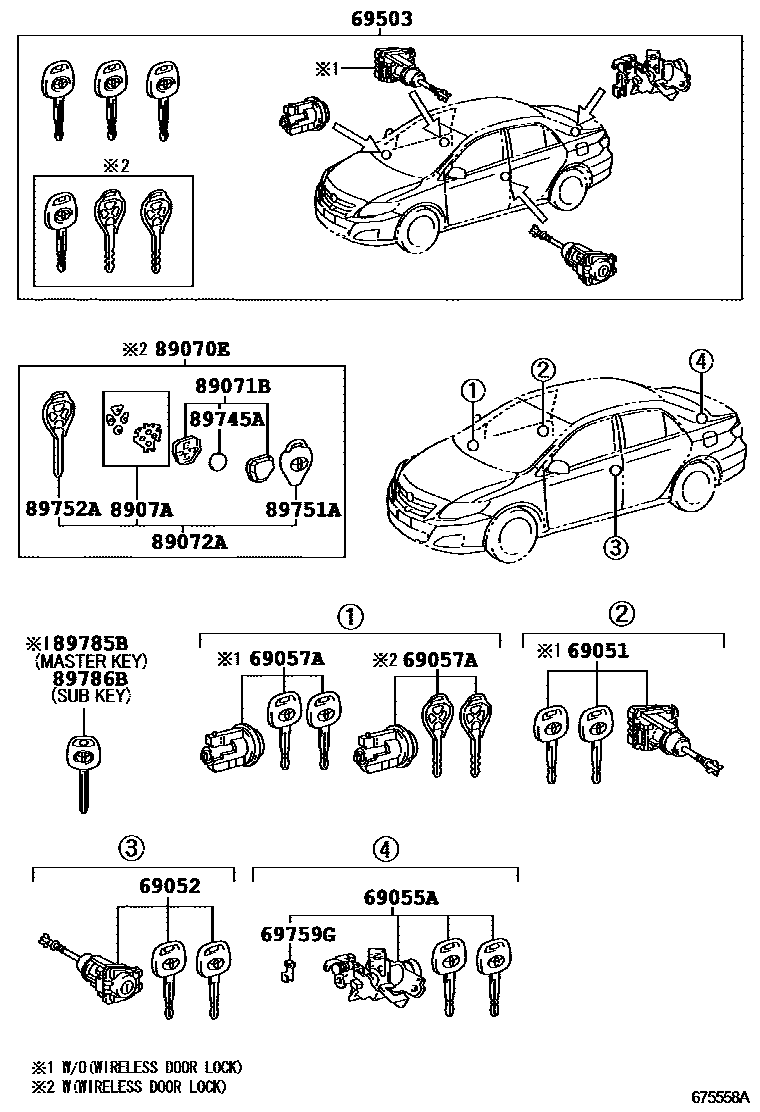

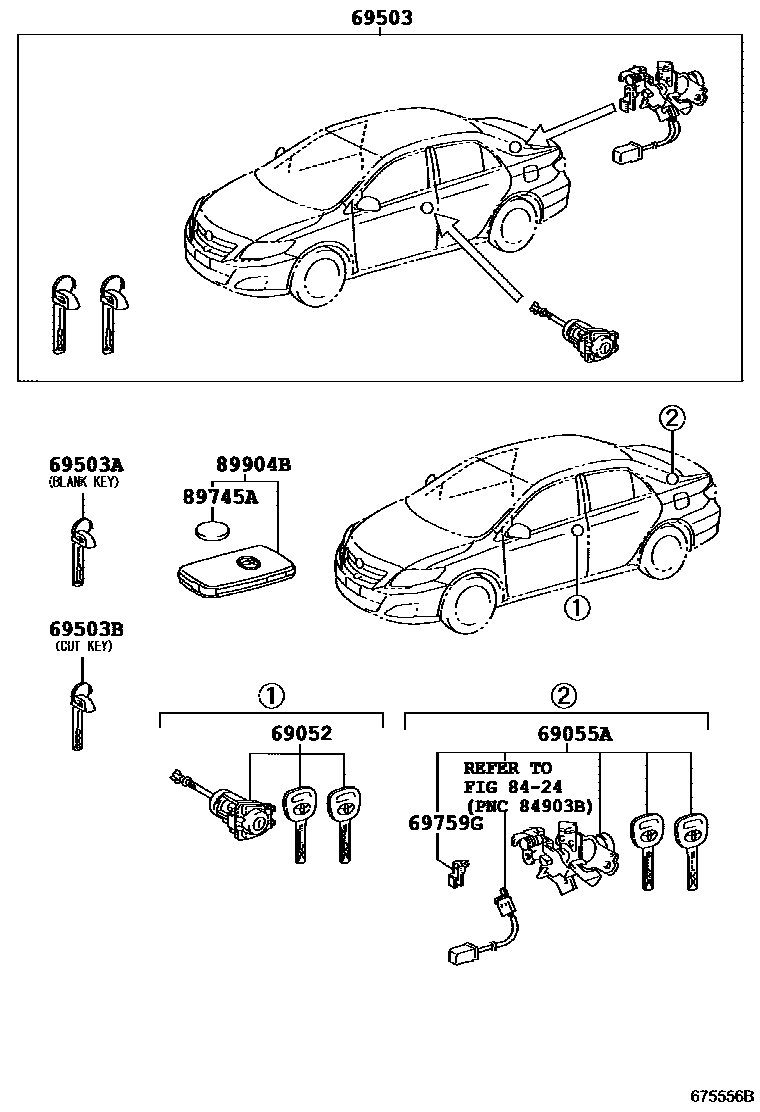

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-21090 |
| 69052 | Left door lock cylinder and key assembly | 69052-12650 · 69052-21090 · 69052-33270 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12A20 · 69055-12A30 · 69055-12A40 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12840 · 69057-33341 · 69057-52510 · 69057-60610 |
| 69503 | Door lock cylinder components | 69005-12D70 · 69005-12D81 · 69005-12E20 · 69005-12E70 · 69005-12E80 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-12540 · 89070-12760 · 89070-12761 · 89070-12820 · 89070-33881 |
| 89071B | Remote key sub-assembly module assembly | 89071-02070 · 89071-02071 · 89071-12180 · 89071-33330 |
| 89072A | Remote key shell assembly | 89072-12260 · 89072-12261 · 89072-12290 · 89072-12340 · 89072-33471 · 89072-33740 |
| 8907A | Transmitter switch assembly | 8907A-33010 |
| 89745A | Transmitter battery | 89745-02040 · 89745-48030 · 89745-52020 |
| 89751A | Transmitter housing cover | 89751-12050 · 89751-12051 · 89751-33070 · 89751-35060 · 89751-52140 |
| 89752A | transmitter housing | 89752-12120 · 89752-28071 |
| 89785B | transceiver key master transmitter | 89785-60160 · 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33181 |
