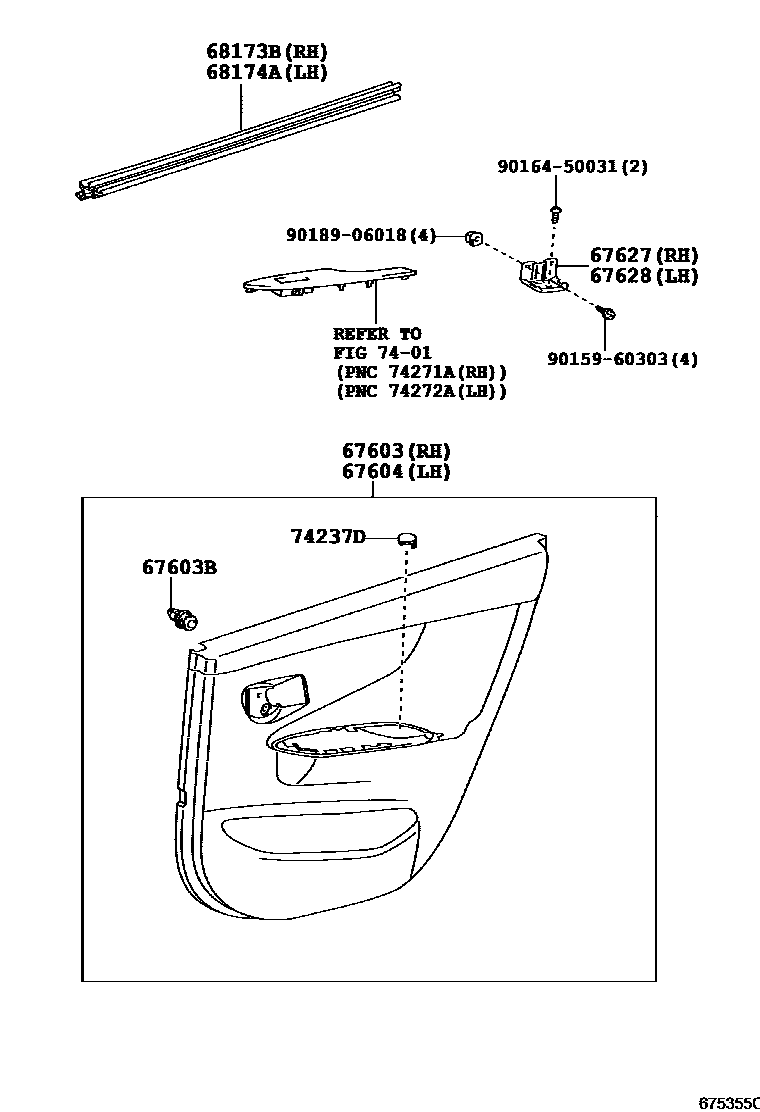

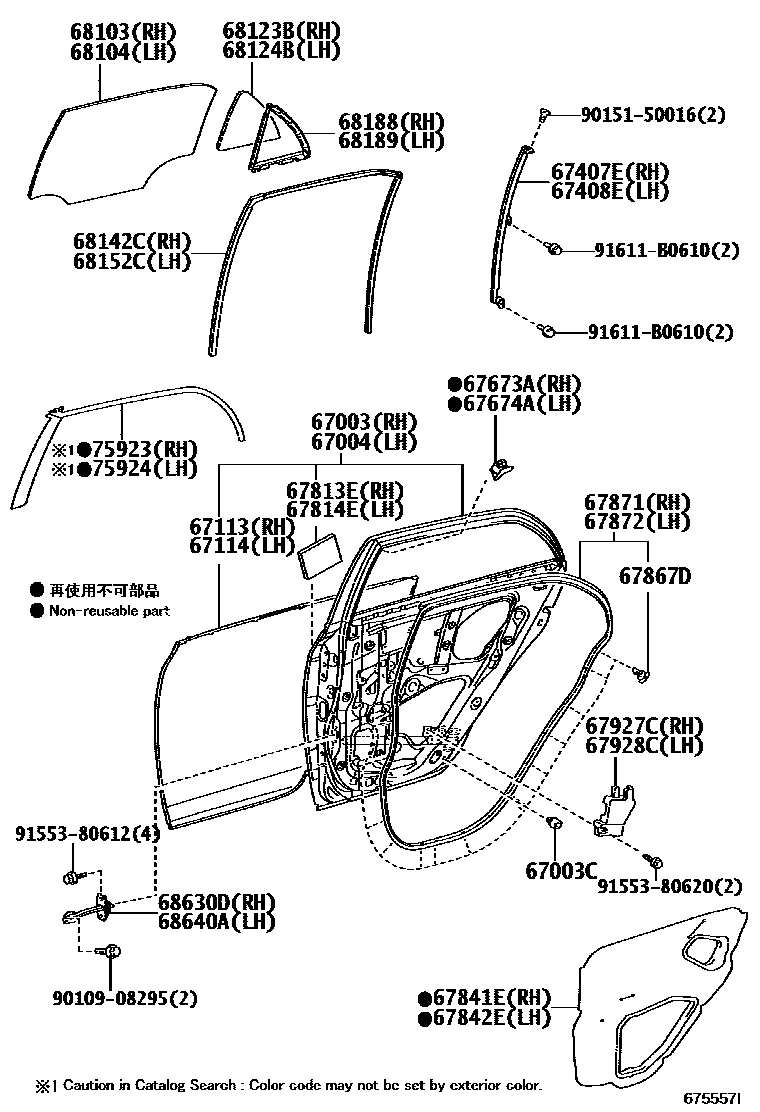

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12A90 · 67003-12A91 · 67003-12B00 · 67003-12B01 |
| 67003C | Rear door panel cushion | 90541-09124 · 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-12A90 · 67004-12A91 · 67004-12B00 · 67004-12B01 |
| 67113 | Right rear door outer panel | 67113-12310 |
| 67114 | Left rear door outer panel | 67114-12300 |
| 67407E | Right rear door window divider sub-assembly | 67407-12290 |
| 67408E | Left rear door window divider sub-assembly | 67408-12290 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67627 | Right rear door trim panel bracket | 67625-12210 |
| 67628 | Left rear door trim panel bracket | 67625-12210 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67813E | Right side enclosure silencer panel | 67817-47010 |
| 67814E | Left side enclosure silencer panel | 67817-47010 |
| 67841E | Right rear door access hole cover | 67841-12360 |
| 67842E | Left rear door access hole cover | 67842-12170 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12530 |
| 67872 | Left rear door sealing strip | 67872-12530 |
| 67927C | Separate door No. 1 reinforcement cushion pad | 67927-12020 · 67927-12040 · 67927-12050 |
| 67928C | Separate door No. 2 reinforcement cushion pad | 67928-12020 · 67928-12040 · 67928-12050 |
| 68103 | Right rear door glass sub-assembly | 68113-12770 |
| 68104 | Left rear door glass sub-assembly | 68114-12770 |
| 68123B | Right rear door corner window glass | 68123-12800 |
| 68124B | Left rear door corner window glass | 68124-12800 |
| 68142C | Right rear door glass lift slot | 68142-12290 |
| 68152C | Left rear door glass lift slot | 68152-12200 |
| 68173B | Right rear door glass inner sealing strip | 68173-12310 |
| 68174A | Left rear door glass inner sealing strip | 68174-12170 |
| 68188 | Right rear door corner window seal | 68188-12330 |
| 68189 | Left rear door corner window seal | 68189-12330 |
| 68630D | Right rear door opening limiter assembly | 68630-12130 · 68630-12131 |
| 68640A | Left rear door opening limiter assembly | 68630-12130 · 68630-12131 |
| 75923 | No. 2 right side light-shielding film | 75923-12060 |
| 75924 | No. 2 left shading film | 75924-12060 |
