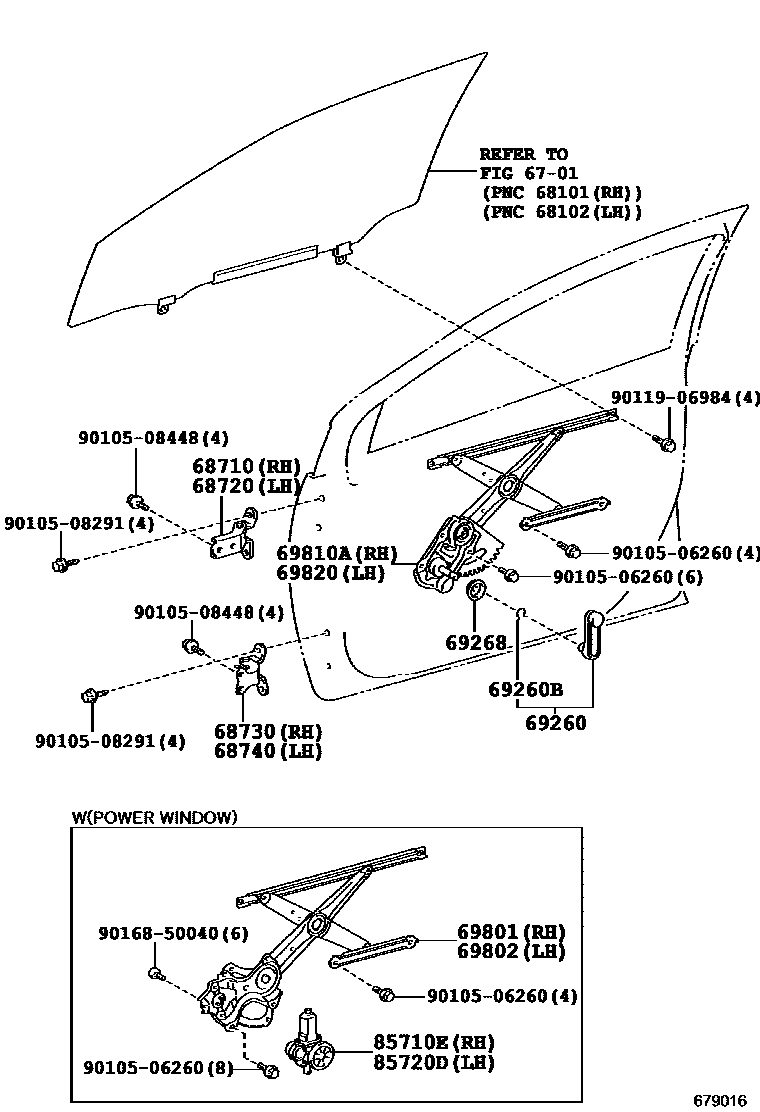

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-12120 |
| 68740 | Left front door lower hinge assembly | 68740-12120 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69268 | Window lift handle plate | 69268-12020 |
| 69801 | Right front door window lifter sub-assembly | 69801-12220 |
| 69802 | Left front door window lifter sub-assembly | 69802-12220 |
| 69810A | Right front door window lift assembly | 69810-12690 |
| 69820 | Left front door window lift assembly | 69820-12670 |
| 85710E | Right power window lift motor assembly | 85710-35180 |
| 85720D | Left electric window lift motor assembly | 85720-35140 |
