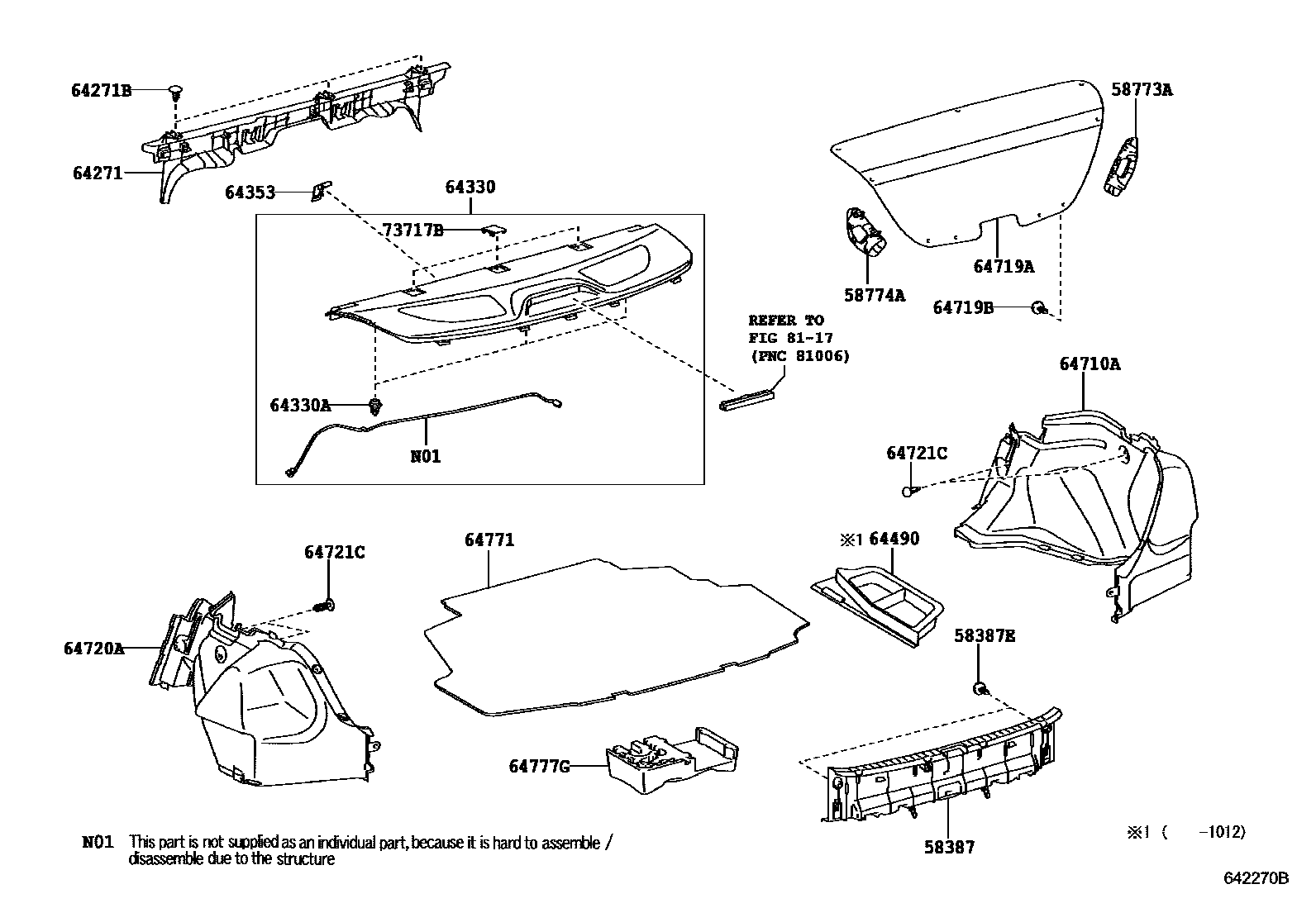

Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403
Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-12090 |
| 58773A | Decorative cover on right side of luggage compartment door | 58773-12130 |
| 58774A | Luggage door left decorative cover | 58774-12120 |
| 64271 | No. 1 compartment partition | 64271-12240 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64490 | Luggage side bracket assembly | 64490-12020 |
| 64777G | Spare tire cushion | 64777-12080 |
