Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

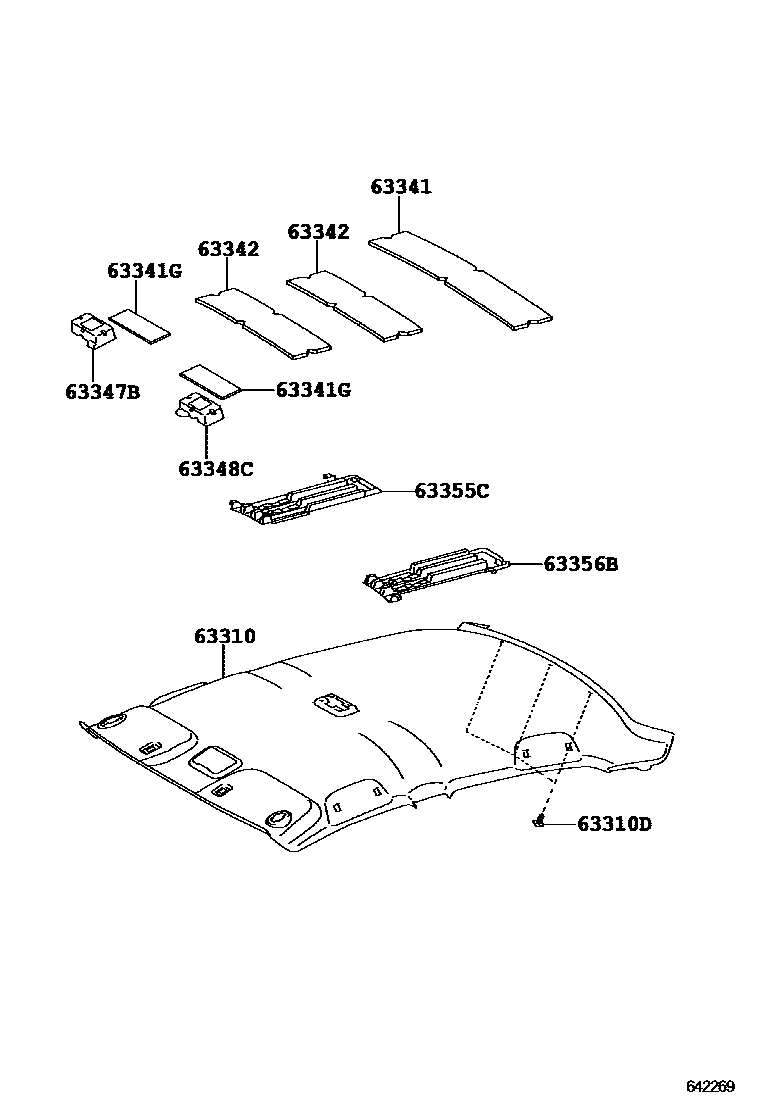

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12250 |
| 63341G | roof muffler mat | 63341-12220 |
| 63342 | No. 2 roof muffler pad | 63342-12220 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-12040 |
| 63348C | Roof left side rail silencer pad | 63348-12020 |
| 63355C | Right side roof lining | 63355-12030 |
| 63356B | Roof left inner lining block | 63356-12020 |
