Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

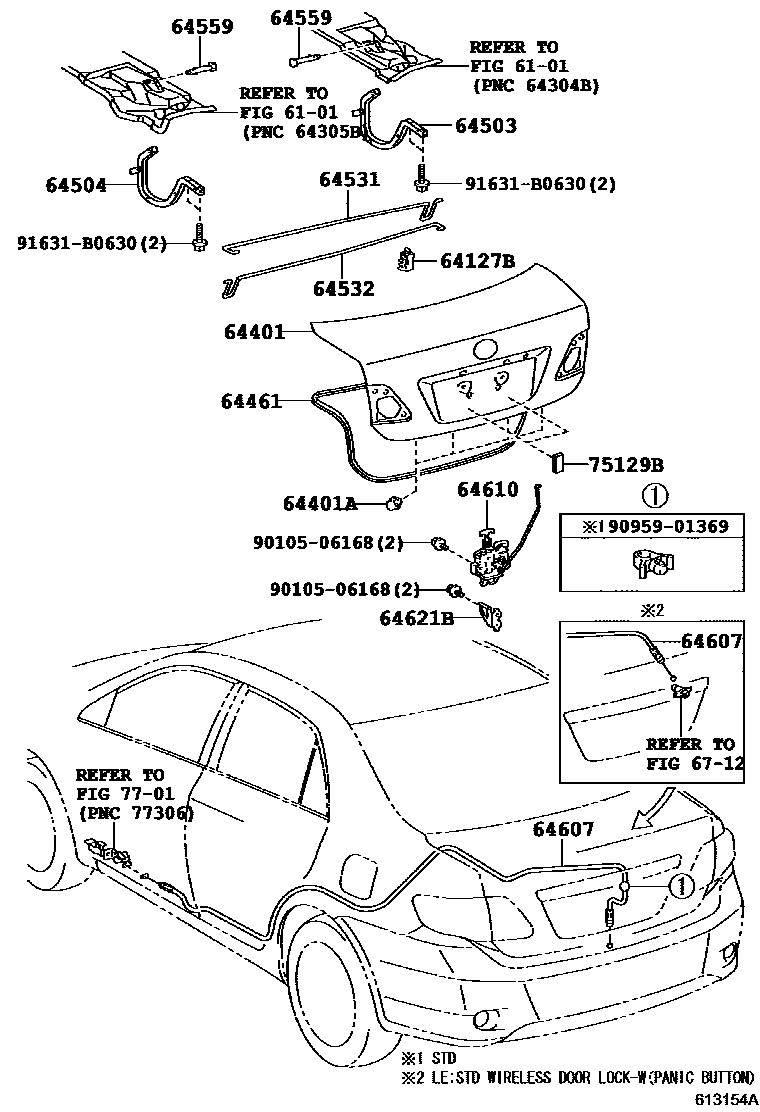

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-12B90 · 64401-12C00 · 64401-12C80 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-12570 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12170 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-12170 |
| 64531 | Trunk door right hinge torsion bar | 64531-12830 · 64531-12831 |
| 64532 | Trunk door left hinge torsion bar | 64532-12810 · 64532-12811 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12860 · 64607-12870 |
| 64610 | Trunk door lock assembly | 64600-12030 · 64600-12031 · 64610-12430 |
| 64621B | Trunk door latch | 64621-33010 |
| 75129B | rear license plate cushion | 75129-21010 |
