Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

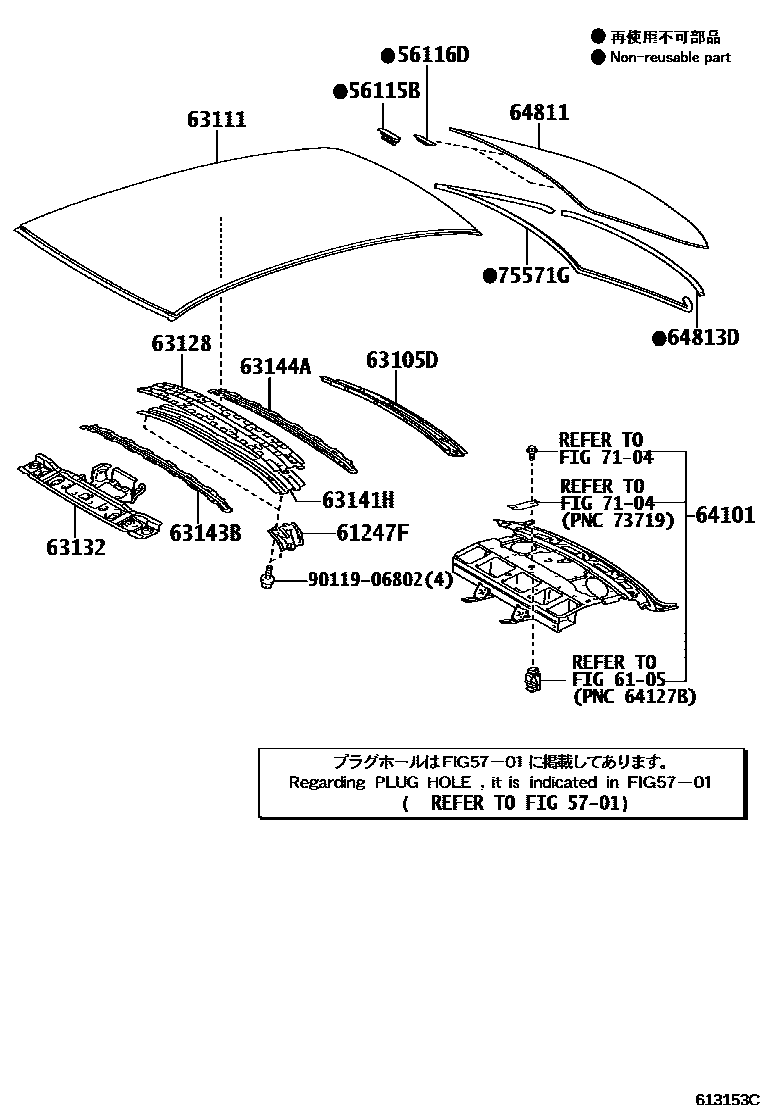

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12080 · 61248-12060 |
| 63105D | Rear window upper frame sub-assembly | 63105-12290 |
| 63111 | roof panel | 63111-12870 · 63111-12A40 |
| 63128 | No. 6 roof panel reinforcement | 63128-12020 |
| 63132 | Windshield inner roof panel | 63102-12300 |
| 63141H | Center roof panel reinforcement | 63141-12330 |
| 63143B | No. 3 roof panel reinforcement | 63143-12130 |
| 63144A | No. 4 roof panel reinforcement | 63144-12110 |
| 64101 | Upper back panel sub-assembly | 64101-12870 |
| 64811 | back window glass | 64811-12A40 |
| 64813D | Back window glass adhesive seal | 64813-12180 |
| 75571G | No. 1 rear window outer upper protective strip | 75571-12A10 |
