Toyota COROLLA 地板垫和地毯 — Figure 5804

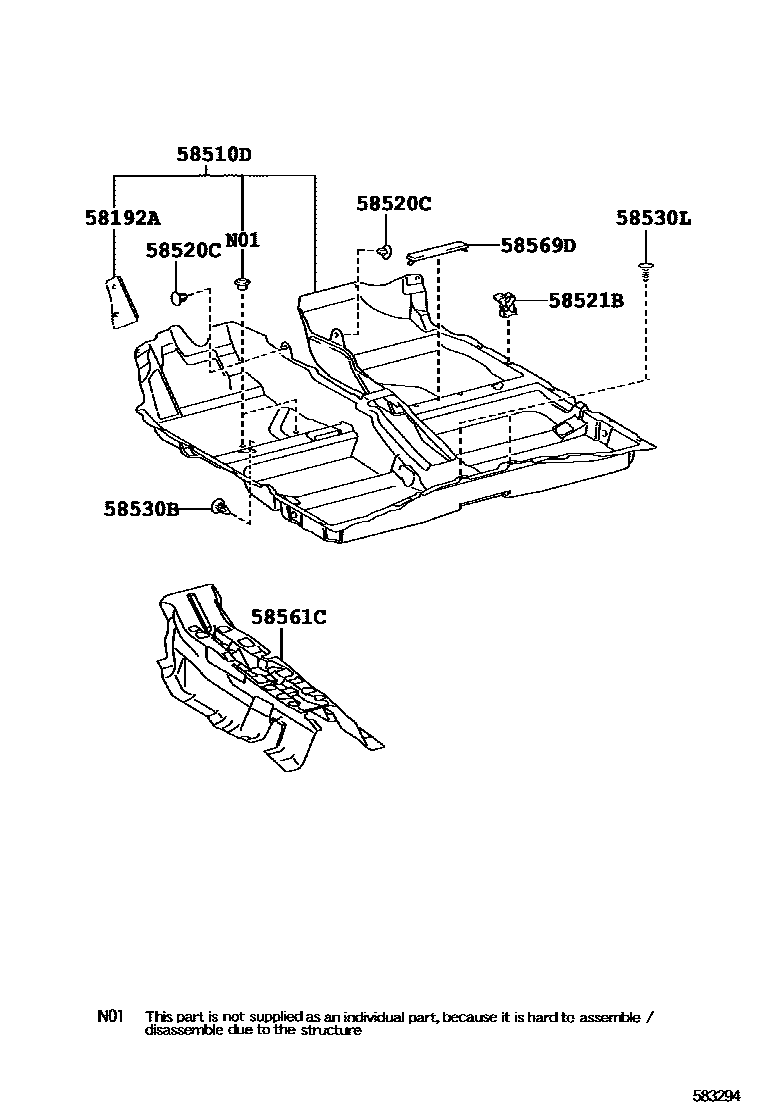

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58192A | Front floor left footrest | 58191-12170 |
| 58521B | carpet hook | 58521-12140 |
| 58561C | Front floor silencer No. 1 | 58561-12060 |
