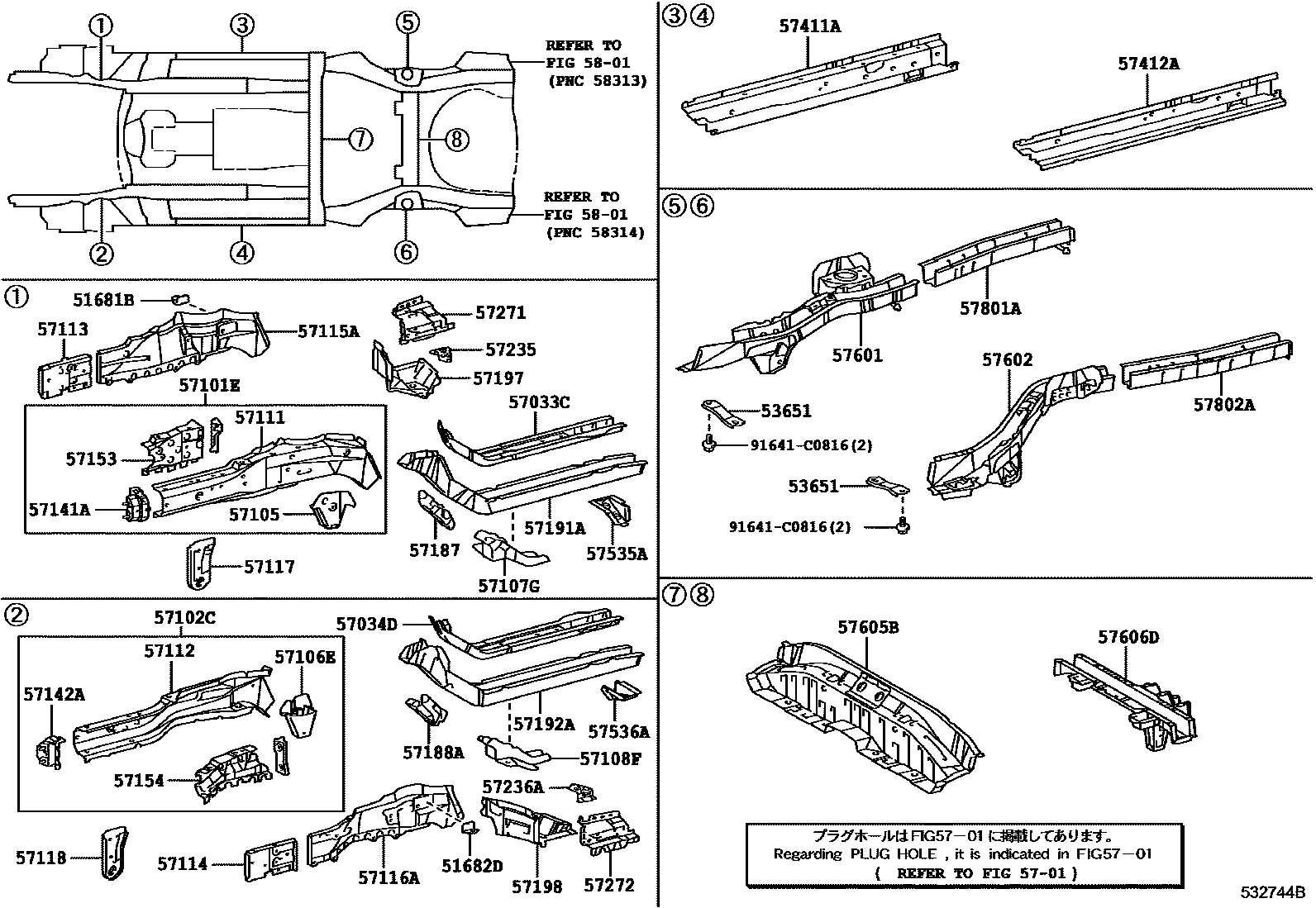

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681B | Right front wheel brake flexible hose support plate | 51681-32050 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-32040 |
| 53651 | Rear floor longitudinal beam bracket | 53651-12020 |
| 57033C | No. 3 right front longitudinal beam reinforcement sub-assembly | 57033-12030 · 57033-12031 |
| 57034D | No. 3 left front longitudinal beam reinforcement sub-assembly | 57034-12030 · 57034-12031 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57111-12903 |
| 57102C | Left front inner longitudinal beam sub-assembly | 57112-12902 |
| 57105 | Right front suspension cross member front mounting bracket sub-assembly | 57105-12140 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-12130 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-12130 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-12150 |
| 57111 | Right front longitudinal beam | 57111-12270 |
| 57112 | Left front longitudinal beam | 57112-12210 |
| 57113 | Right front longitudinal beam extension | 57113-13010 |
| 57114 | Left front longitudinal beam extension | 57114-13010 |
| 57115A | Right front longitudinal beam outer panel | 57115-12080 |
| 57116A | Left front longitudinal beam outer panel | 57116-12080 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-12130 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-12130 |
| 57141A | Front bumper arm right bracket | 57013-12050 |
| 57142A | Front bumper arm left bracket | 57014-12050 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-13020 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-12060 |
| 57187 | No. 6 right front longitudinal beam plate | 57187-12020 |
| 57188A | No. 6 left front longitudinal beam plate | 57188-12020 |
| 57191A | Right rear longitudinal member inside front floor | 57191-13010 |
| 57192A | Left rear longitudinal member inside front floor | 57192-13010 |
| 57197 | Right front torsion box section piece | 57197-12030 |
| 57198 | Left front anti-torsion box section piece | 57198-12030 |
| 57235 | Right steering chassis bracket | 57235-13010 |
| 57236A | Left steering housing bracket | 57236-13010 |
| 57271 | Steering housing support beam right extension | 57271-12100 |
| 57272 | Steering casing support beam left extension | 57272-12100 |
| 57411A | Floor right inner longitudinal beam | 57401-12610 |
| 57412A | Floor left inner longitudinal beam | 57402-12620 |
| 57535A | Front floor right bracket | 57535-12020 |
| 57536A | Front floor left bracket | 57536-12020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12968 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12972 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12331 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-12260 |
| 57801A | Rear floor right longitudinal beam reinforcement sub-assembly | 57801-12110 |
| 57802A | Rear floor left longitudinal beam reinforcement sub-assembly | 57802-12110 |
