Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

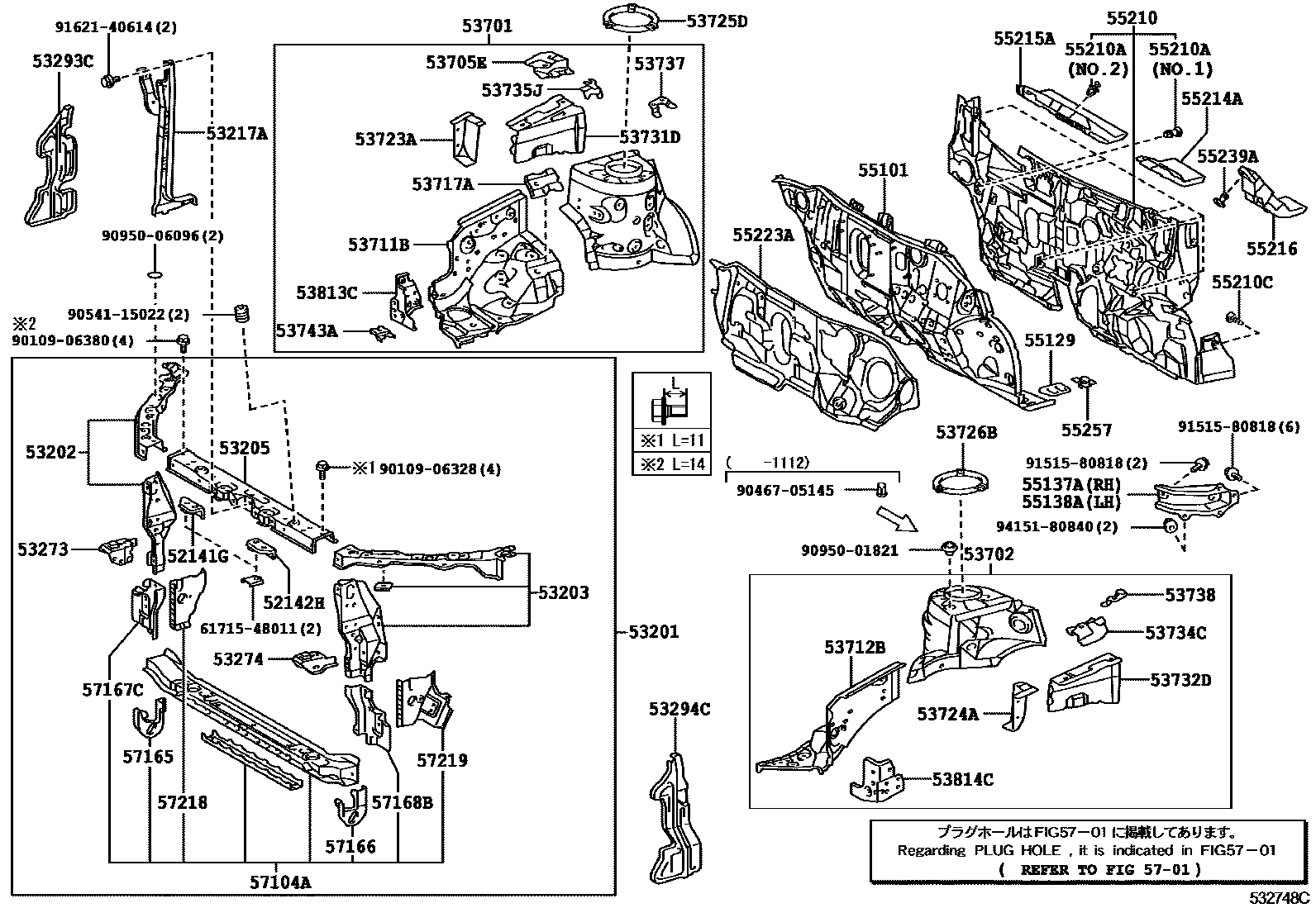

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141G | Front bumper right side stay | 52141-12550 |
| 52142H | Front bumper left stay | 52142-12470 |
| 53201 | Radiator bracket sub-assembly | 53201-12B50 |
| 53202 | Radiator right side bracket sub-assembly | 53202-12540 |
| 53203 | Radiator left bracket sub-assembly | 53203-12470 |
| 53205 | Radiator upper bracket sub-assembly | 53205-12291 |
| 53217A | engine cover lock bracket | 53208-12540 |
| 53273 | Front bumper arm right mounting bracket | 53273-12120 |
| 53274 | Front bumper arm left mounting bracket | 53274-12120 |
| 53293C | Radiator right baffle | 53293-12080 · 53293-12150 |
| 53294C | Radiator left baffle | 53294-12110 · 53294-12170 |
| 53701 | Right front fender fender sub-assembly | 53701-12A20 |
| 53702 | Left front fender fender sub-assembly | 53702-12A30 · 53702-12A31 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-12020 |
| 53711B | Right front fender front fender | 53711-12280 |
| 53712B | Left front fender front fender | 53712-12230 |
| 53717A | fender fender | 53717-12060 |
| 53723A | Front spring bracket right side reinforcement | 53723-12080 |
| 53724A | Front spring bracket left reinforcement | 53724-12070 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53723-12091 · 53723-12110 |
| 53726B | No. 2 front spring bracket left reinforcement | 53723-12091 · 53723-12110 |
| 53731D | Right front fender to cowl side upper beam | 53731-12160 |
| 53732D | Left front fender to cowl side upper beam | 53732-12140 |
| 53734C | Left front fender to cowl side front lower beam | 53706-12040 |
| 53735J | No. 5 front fender fender liner | 53735-12080 |
| 53737 | Right front fender to front wall side sill | 53737-12110 |
| 53738 | Left front fender to front wall side sill | 53738-12070 |
| 53743A | Right front fender fender front reinforcement | 53743-12050 |
| 53813C | Right front fender extension | 53803-12060 |
| 53814C | Left front fender extension | 53814-12090 |
| 55101 | Front apron sub-assembly | 55101-12D40 |
| 55129 | Front panel hole cover | 55129-32030 · 55139-32010 |
| 55137A | Right side bracket (front wall to frame) | 55137-12060 |
| 55138A | Left side bracket (front wall to frame) | 55138-12030 |
| 55210 | Front wall insulation pad assembly | 55210-12590 · 55210-12591 |
| 55210A | clip | 90467-11122 · 90467-11127 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-12050 · 55214-12100 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-12130 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-12030 |
| 55223A | Front wall outer heat insulation pad | 55223-12190 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-48020 |
| 55257 | cowl opening cover | 55257-32010 |
| 57104A | Front cross member sub-assembly | 57104-12291 |
| 57165 | Front cross member lower right reinforcement | 57165-12070 |
| 57166 | Front cross member lower left reinforcement | 57166-12020 |
| 57167C | Front cross member right corner panel | 57167-12130 |
| 57168B | Front cross member left corner panel | 57168-12130 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-12030 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-12030 |
