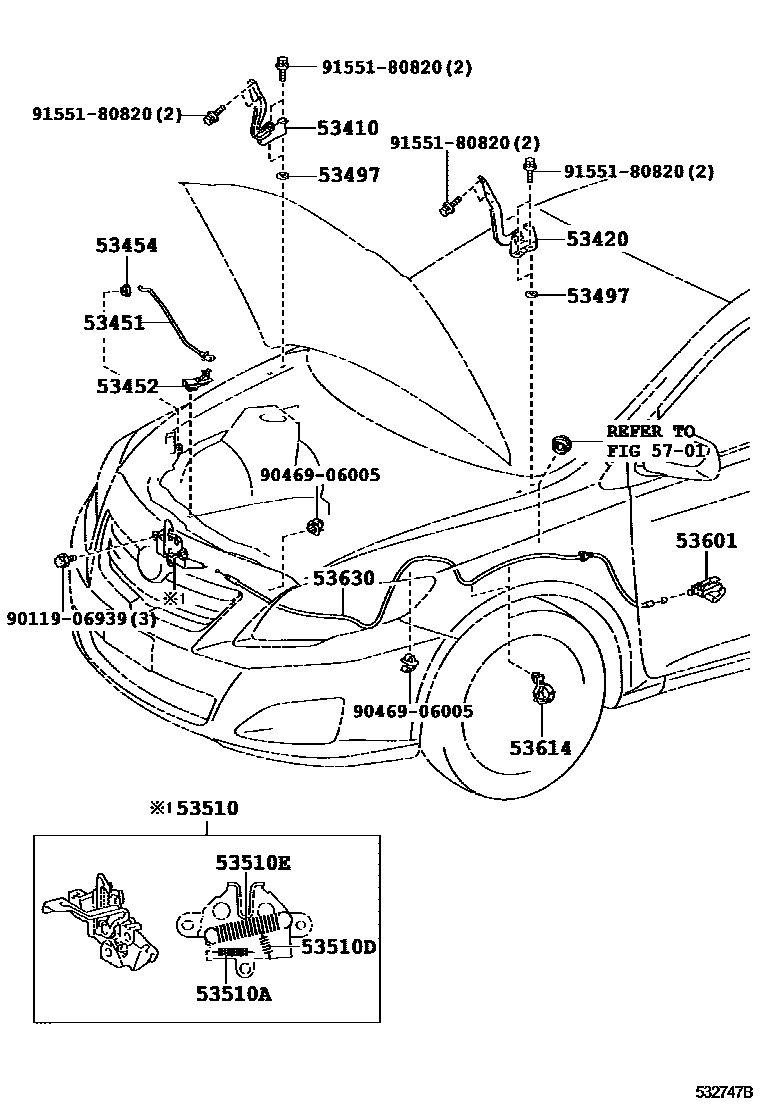

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12550 |
| 53420 | Engine cover left hinge assembly | 53420-12520 |
| 53451 | Engine cover support rod | 53440-12100 |
| 53452 | Engine cover stay rod fixing | 53452-12090 |
| 53454 | Engine cover support rod clip | 53454-12040 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-12A60 · 53510-12A61 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-18067 |
| 53614 | Engine hood lock control cable clip | 53614-12040 |
| 53630 | Engine hood lock control cable assembly | 53630-12610 |
