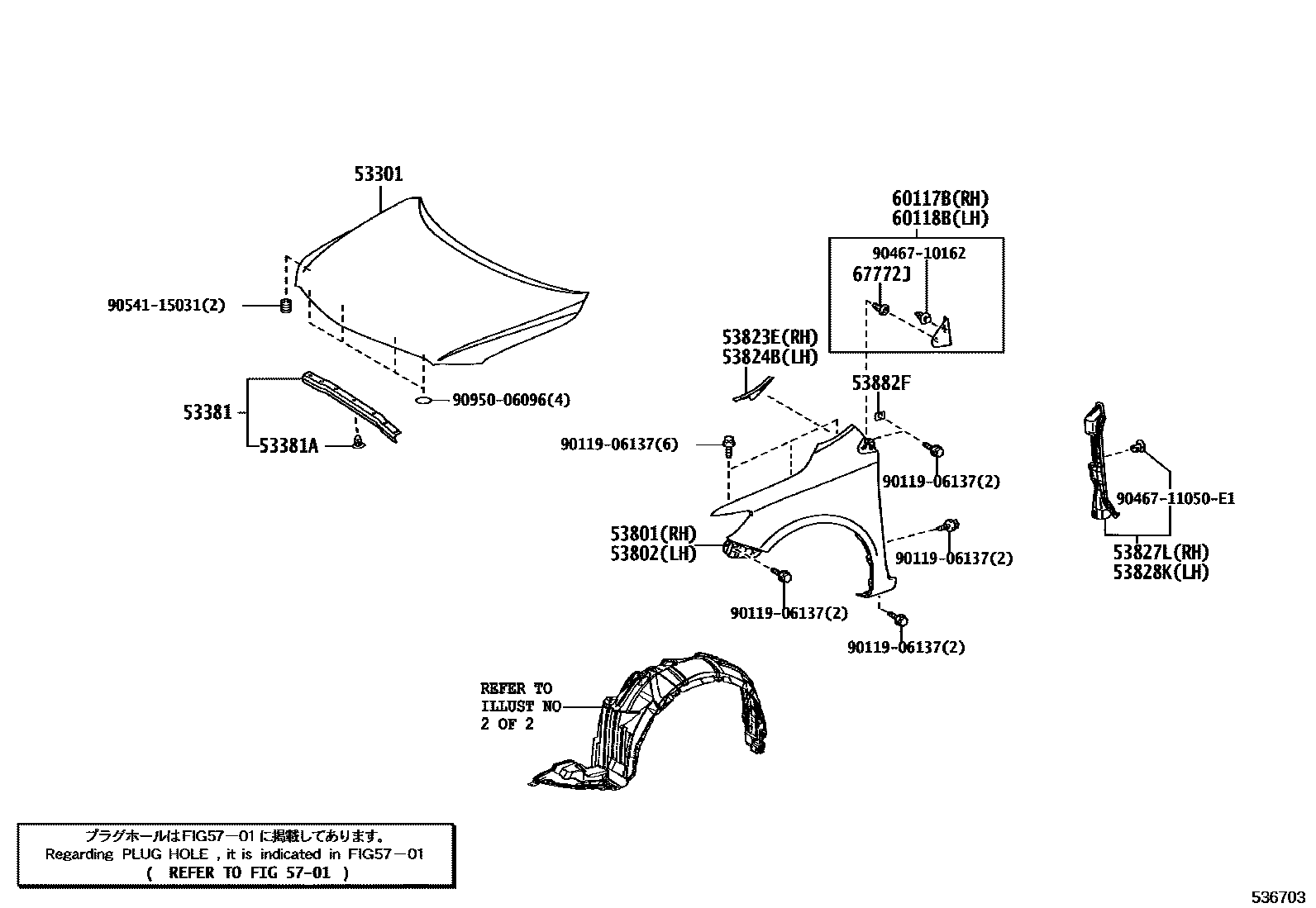

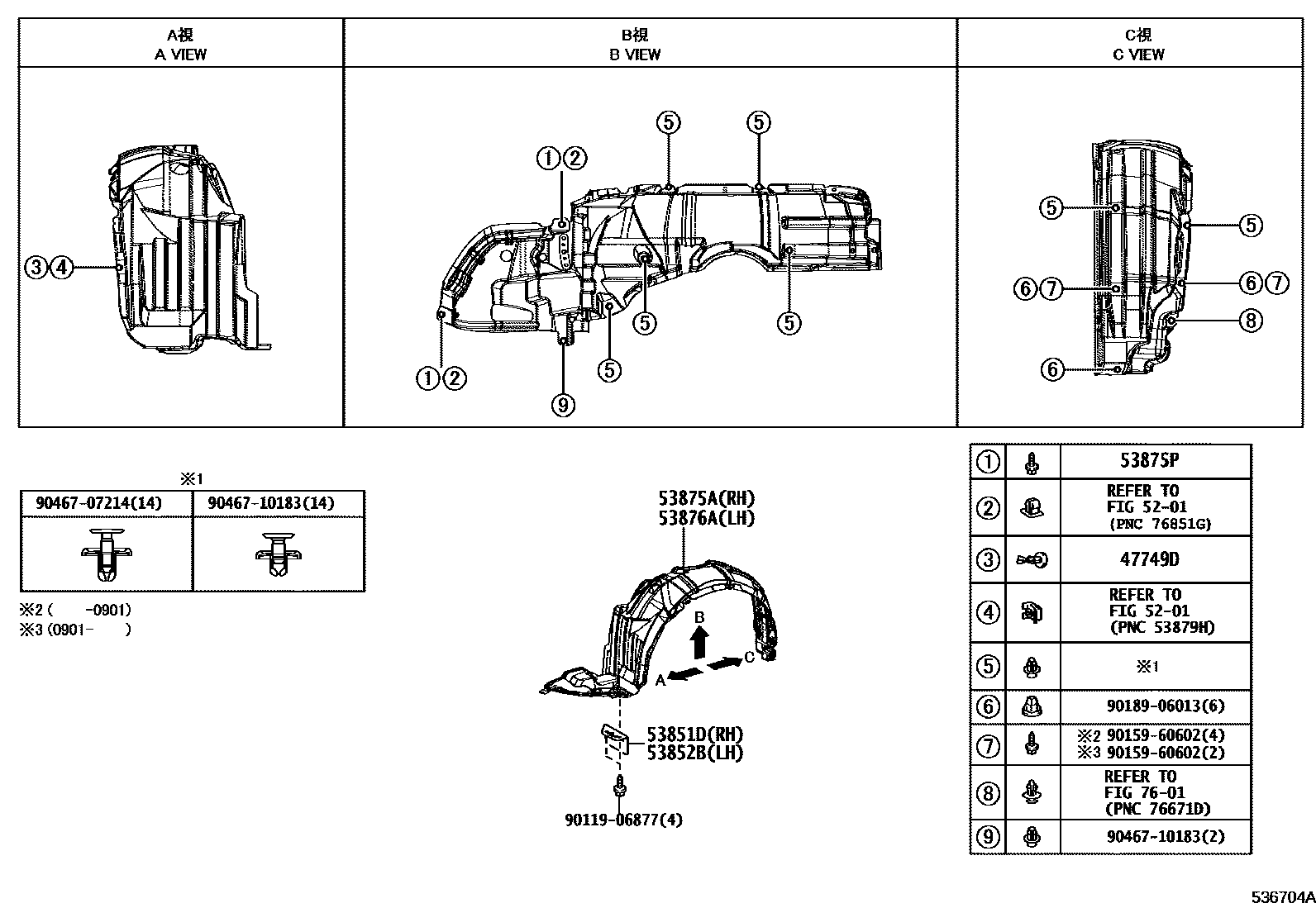

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-58010 |
| 53301 | Engine cover sub-assembly | 53301-12A80 |
| 53381 | Engine cover to radiator bracket seal | 53381-12220 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53801-12A70 |
| 53802 | Left front fender sub-assembly | 53802-12A70 |
| 53823E | No. 2 right front side panel protector | 53823-12030 |
| 53824B | No. 2 left front side panel protector | 53824-12020 |
| 53827L | Right front fender side panel protector | 53827-12100 |
| 53828K | Left front fender side panel protector | 53828-12100 |
| 53851D | Right front fender outer panel pad | 53851-12080 |
| 53852B | Left front fender exterior panel pad | 53852-12070 |
| 53875A | Right front fender lining | 53875-12460 · 53875-12540 |
| 53875P | VIS, NO.1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-12440 · 53876-12520 |
| 53882F | front fender seal | 53882-16030 |
| 60117B | Right front pillar upper cover sub-assembly | 60117-12030 |
| 60118B | Left front pillar upper cover sub-assembly | 60118-12030 |
| 67772J | Front pillar cover fixing cover | 67772-95J03 |
