Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 6 PNC and OE references.

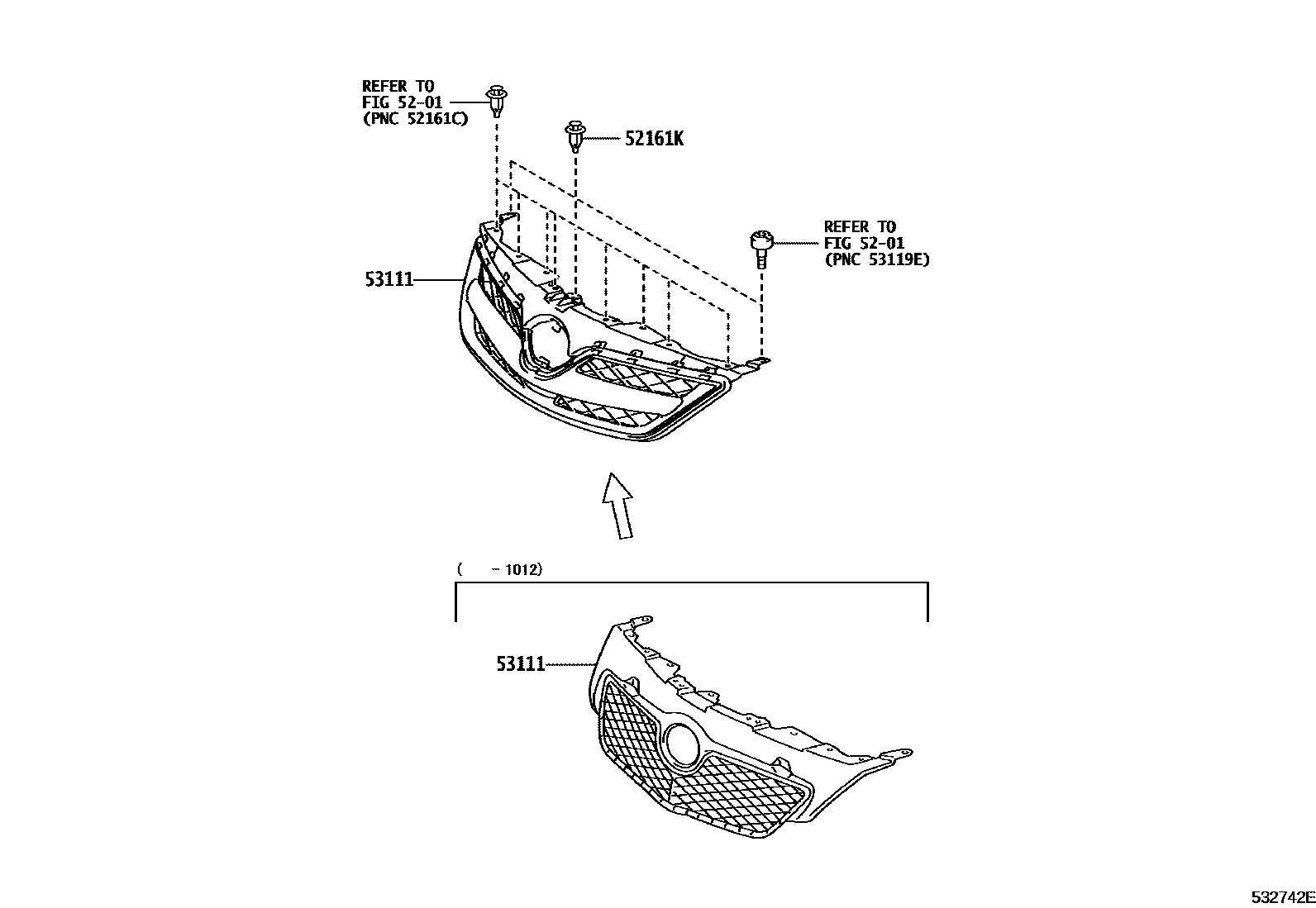

Toyota COROLLA radiator grille EPC diagram — 532742E
radiator grille — 532742E (200712 – 999999)

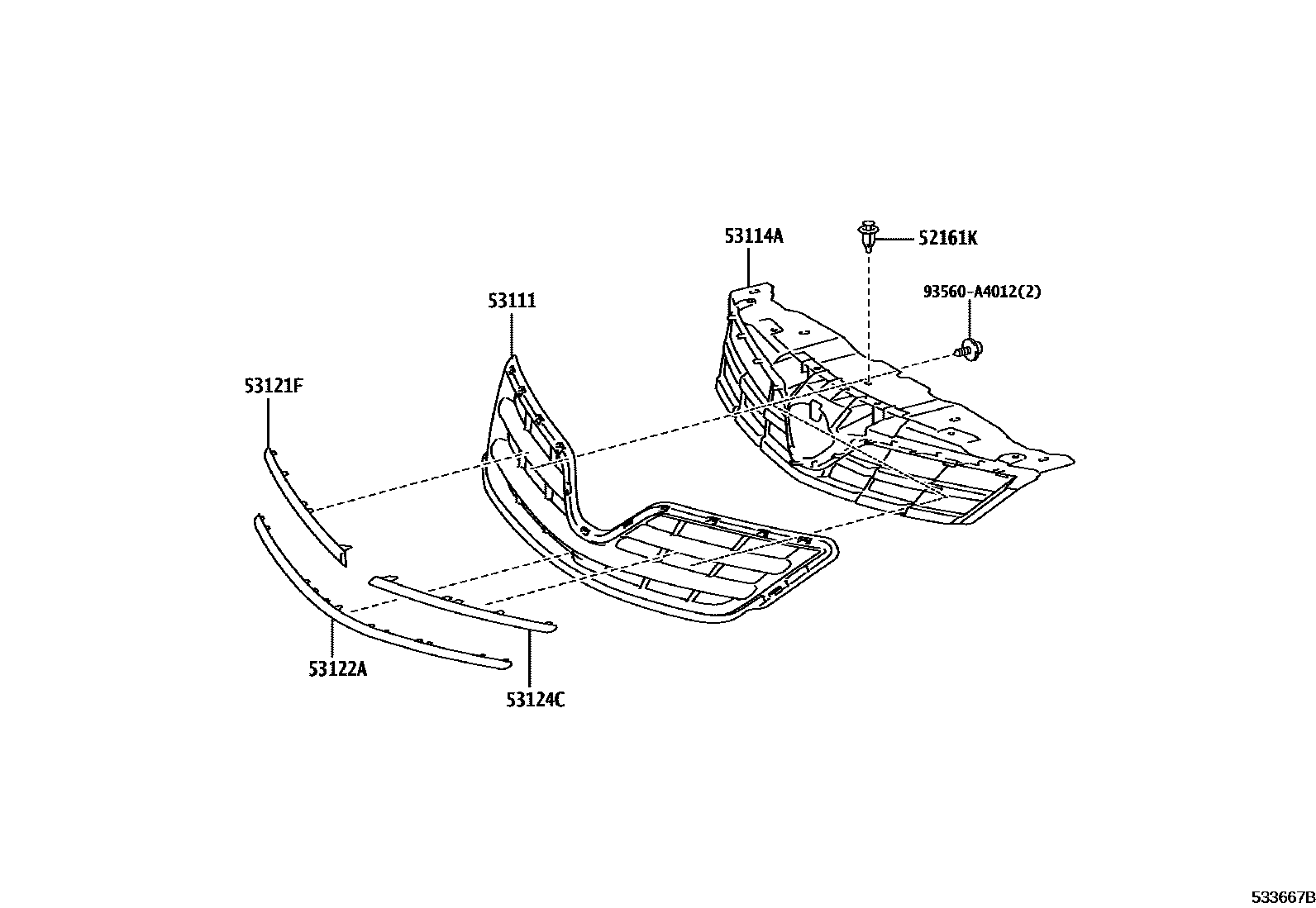

Toyota COROLLA radiator grille EPC diagram — 533667B
radiator grille — 533667B (201207 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-16010
53111radiator grille53111-12B30
53114Ainner radiator grille53114-12160
53121FRadiator grille upper right protective strip53121-12200
53122ARadiator grille lower protective strip53122-12180
53124CRadiator grille upper left protective strip53124-12050
