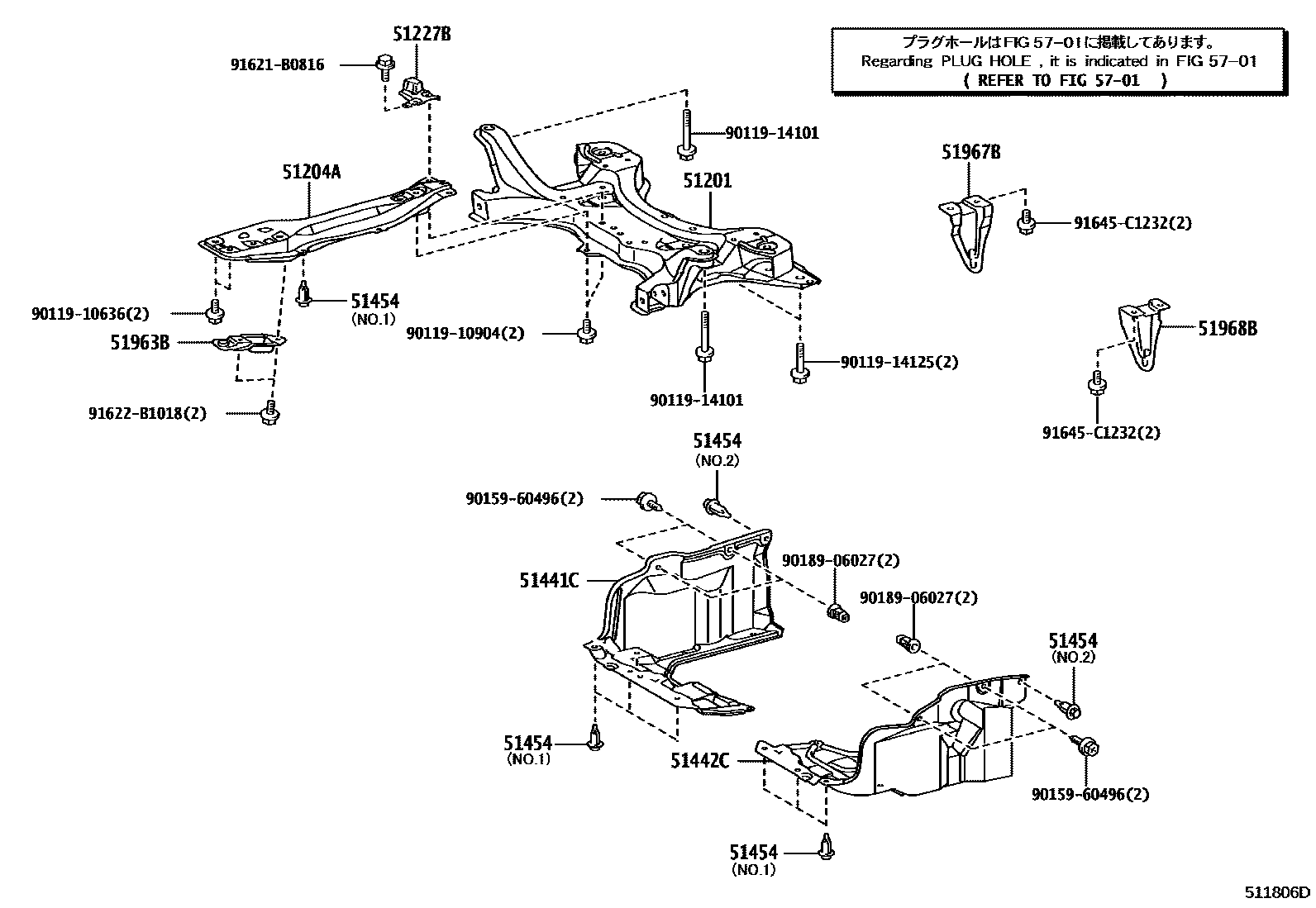

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-20352 |
| 51204A | Engine center mount beam sub-assembly | 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-12081 |
| 51441C | Engine right bottom cover | 51441-12240 |
| 51442C | Engine left bottom cover | 51442-12230 |
| 51454 | engine rear cover | 90467-07201 · 90467-07214 |
| 51963B | Right front transport hook | 51960-12080 |
| 51967B | right rear transport hook | 51967-12270 |
| 51968B | Left rear transport hook | 51968-12200 |
