Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

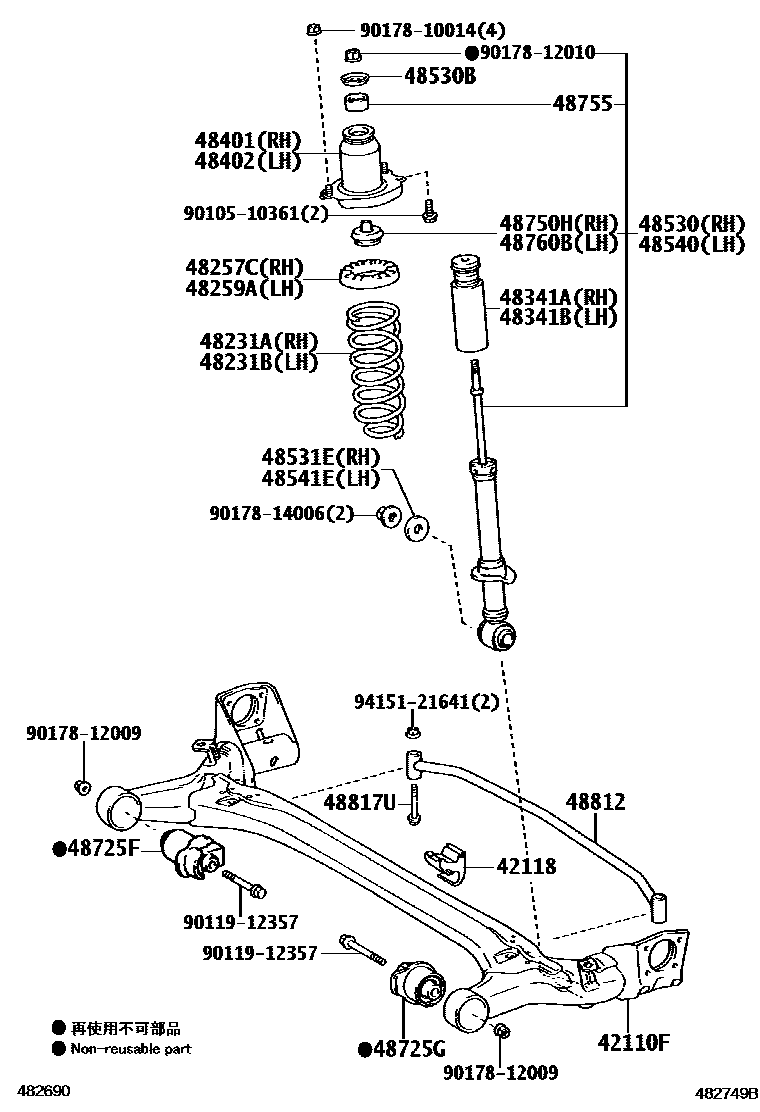

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-12190 |
| 42118 | Rear axle damper | 42118-12020 |
| 48231A | Right rear coil spring | 48231-12B70 |
| 48231B | Left rear coil spring | 48231-12B70 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-32090 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-32090 |
| 48341A | No. 1 right rear spring buffer block | 48341-12230 |
| 48341B | No. 1 left rear spring buffer block | 48341-12230 |
| 48401 | Rear spring right front bracket sub-assembly | 48401-12020 |
| 48402 | Rear spring left front bracket sub-assembly | 48403-12020 |
| 48530 | Right rear shock absorber assembly | 48530-80443 · 48530-80562 · 48530-80626 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90201-14034 |
| 48540 | Left rear shock absorber assembly | 48530-80443 · 48530-80562 · 48530-80626 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90201-14034 |
| 48725F | Right rear axle bracket bushing | 48725-02250 · 48725-12630 |
| 48725G | Left rear axle bracket bushing | 48725-02250 · 48725-12630 |
| 48750H | Right rear suspension support assembly | 48750-47010 |
| 48755 | rear suspension mount | 48755-63010 |
| 48760B | Left rear suspension support assembly | 48750-47010 |
| 48812 | rear stabilizer bar | 48812-12430 |
| 48817U | Bolt (for rear stabilizer bar) | 90105-16085 |
