Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

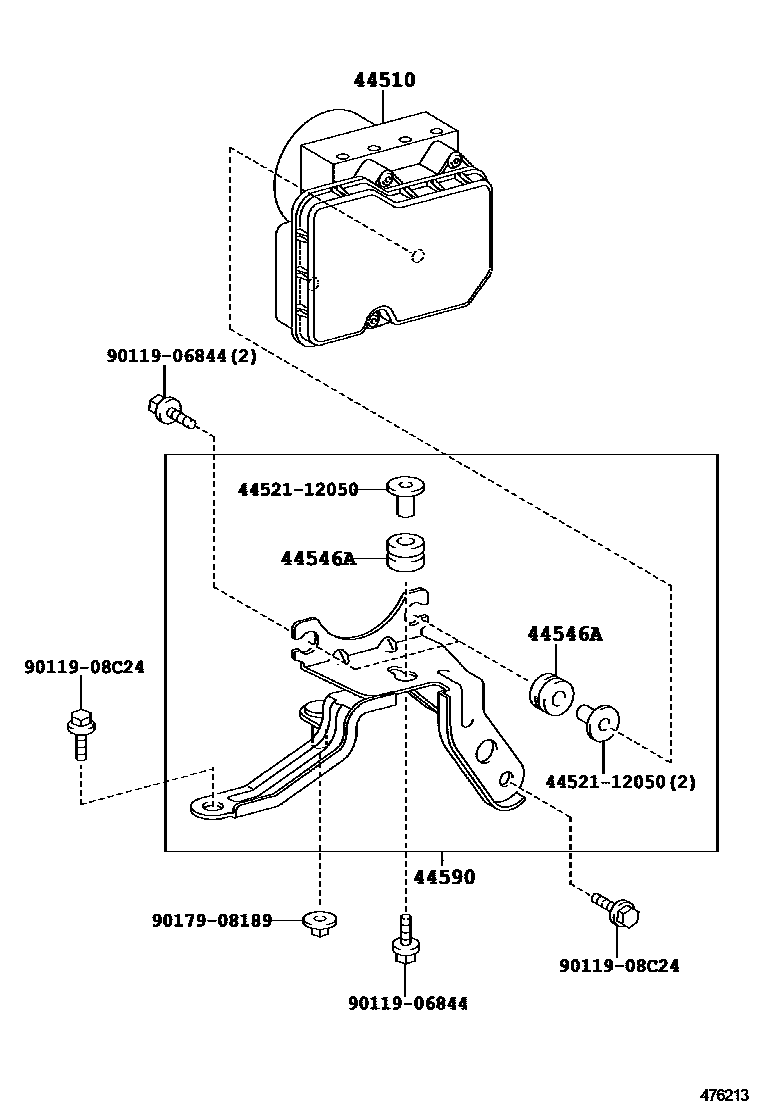

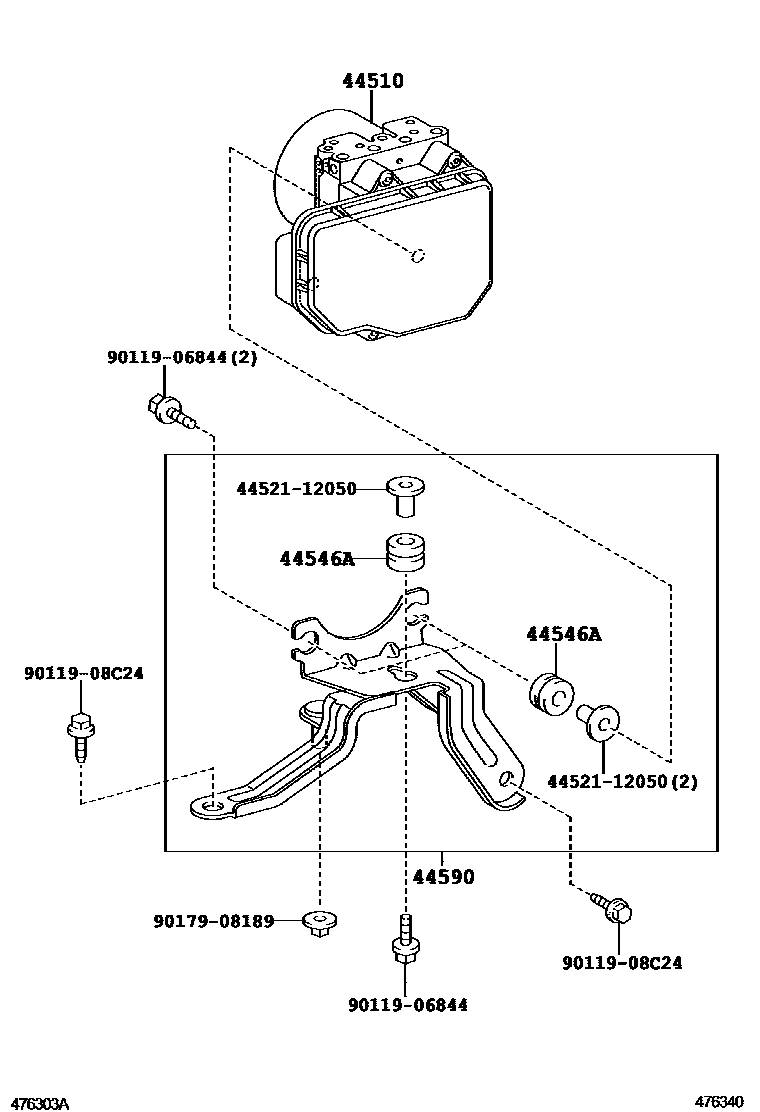

| 44510 | brake actuator assembly | 44050-12540 · 44050-12620 · 44050-12730 · 44050-12840 · 44050-12841 · 44050-12842 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-12160 · 44590-12170 · 44590-12190 |

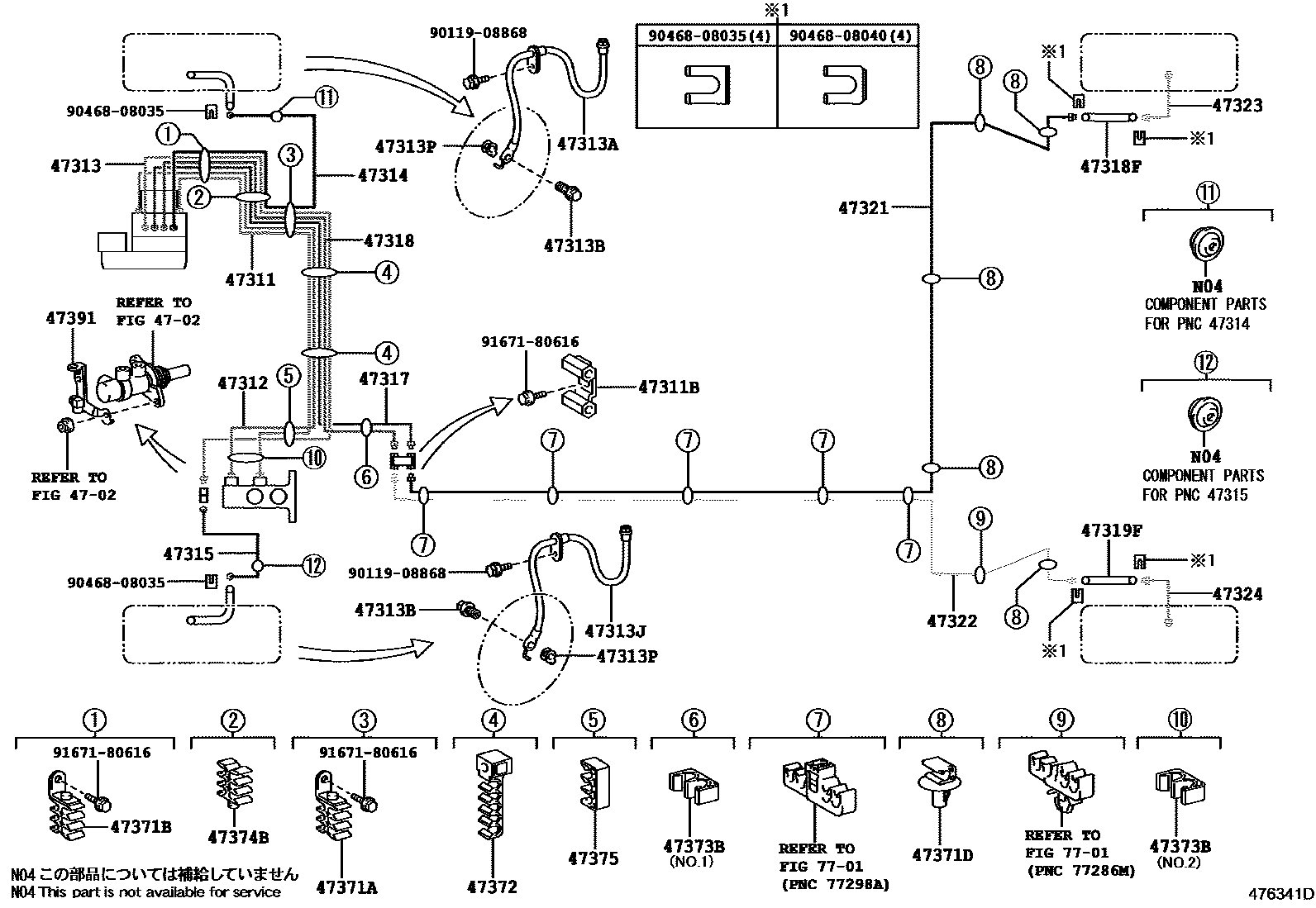

| 47311 | No. 1 front brake pipe | 47311-12A80 · 47311-12A90 · 47311-12B60 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-12610 · 47312-12620 · 47312-12690 |
| 47313 | No. 3 front brake pipe | 47313-12780 · 47313-12790 · 47313-12860 |
| 47313A | No. 1 front flexible hose | 90947-02E76 · 90947-02G77 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E78 · 90947-02G78 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12660 · 47314-12670 · 47314-12720 |
| 47315 | No. 5 front brake pipe | 47315-12620 |
| 47317 | No. 7 front brake pipe | 47317-12420 · 47317-12430 · 47317-12480 · 47317-12490 |
| 47318 | No. 8 front brake pipe | 47318-12560 · 47318-12570 · 47318-12620 · 47318-12630 |
| 47318F | Right rear flexible hose | 90947-02E75 |
| 47319F | Left rear flexible hose | 90947-02E75 |
| 47321 | No. 1 rear brake pipe | 47321-12360 |
| 47322 | No. 2 rear brake pipe | 47322-12520 |
| 47323 | No. 3 rear brake pipe | 47323-12290 · 47323-12310 |
| 47324 | No. 4 rear brake pipe | 47324-12250 · 47324-12270 |
| 47371A | No. 1 brake pipe clamp | 90949-04050 · 90949-04054 |
| 47371B | No. 6 brake pipe clamp | 47371-12240 · 90949-04053 |
| 47371D | No. 8 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90949-01D28 · 90949-01D73 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 · 90464-00920 |
| 47374B | No. 4 brake pipe clamp | 90949-01C51 · 90949-01D33 |
| 47375 | No. 5 brake pipe clamp | 90464-00857 · 90464-00914 |
| 47391 | Brake pipe joint | 47391-12050 |
