Toyota COROLLA Front Drive Shaft — Figure 4302

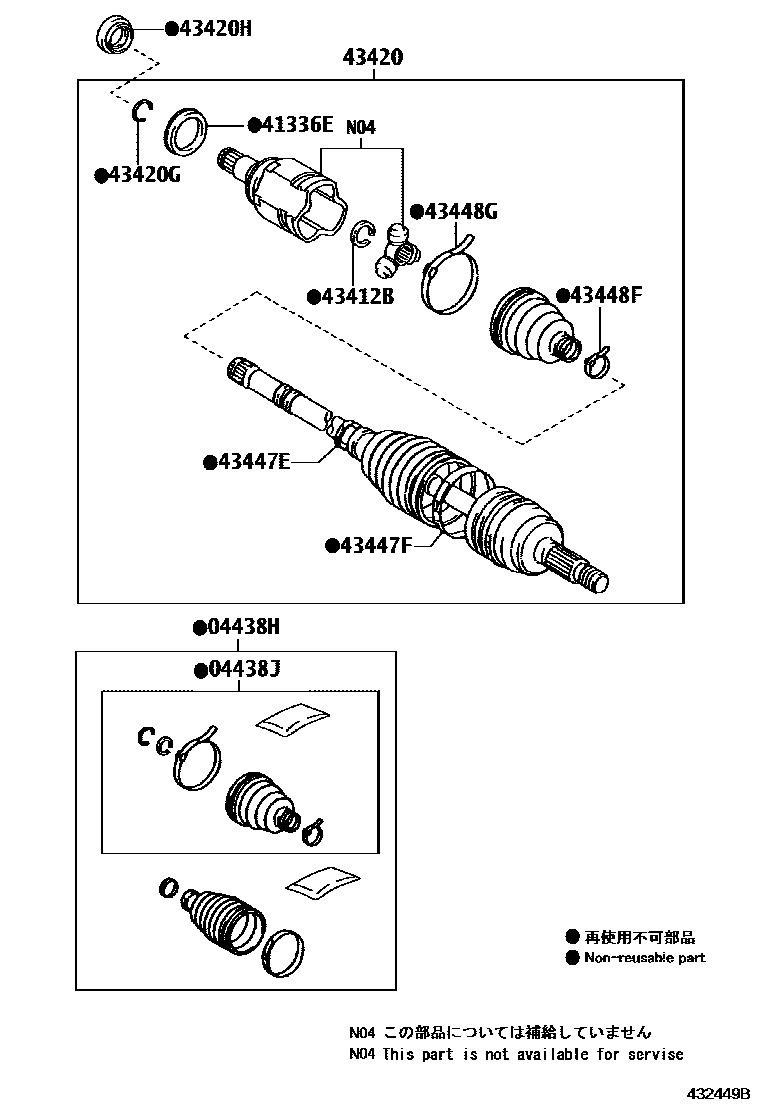

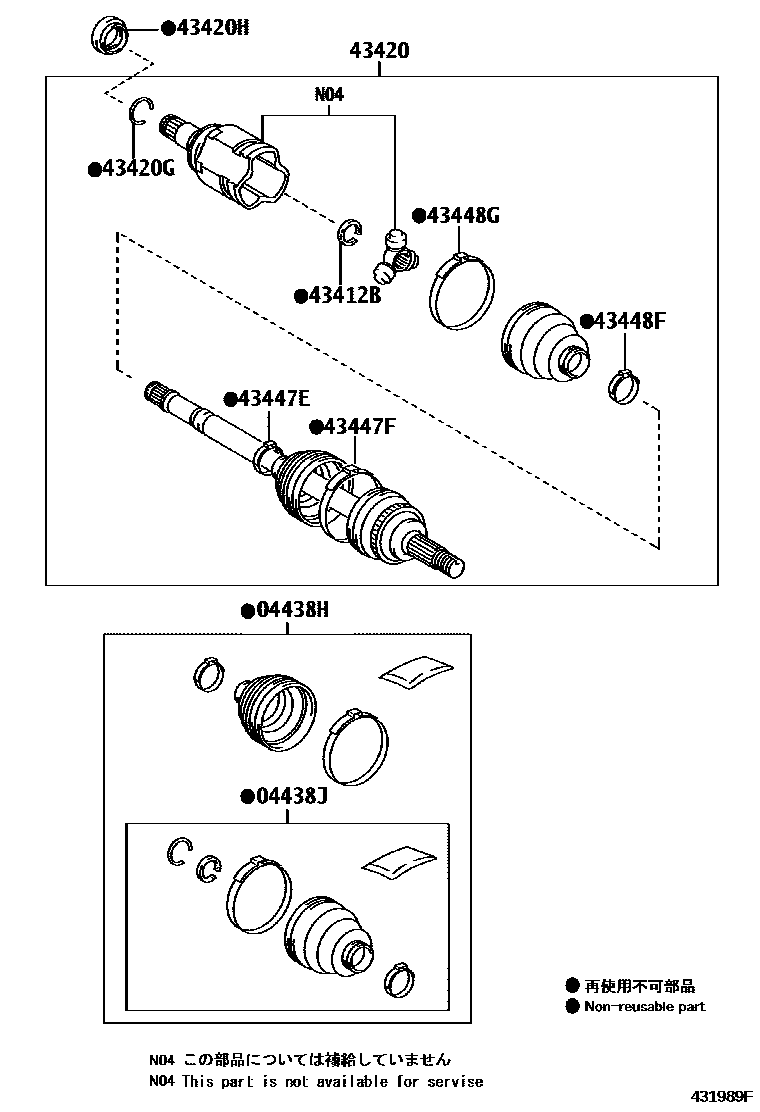

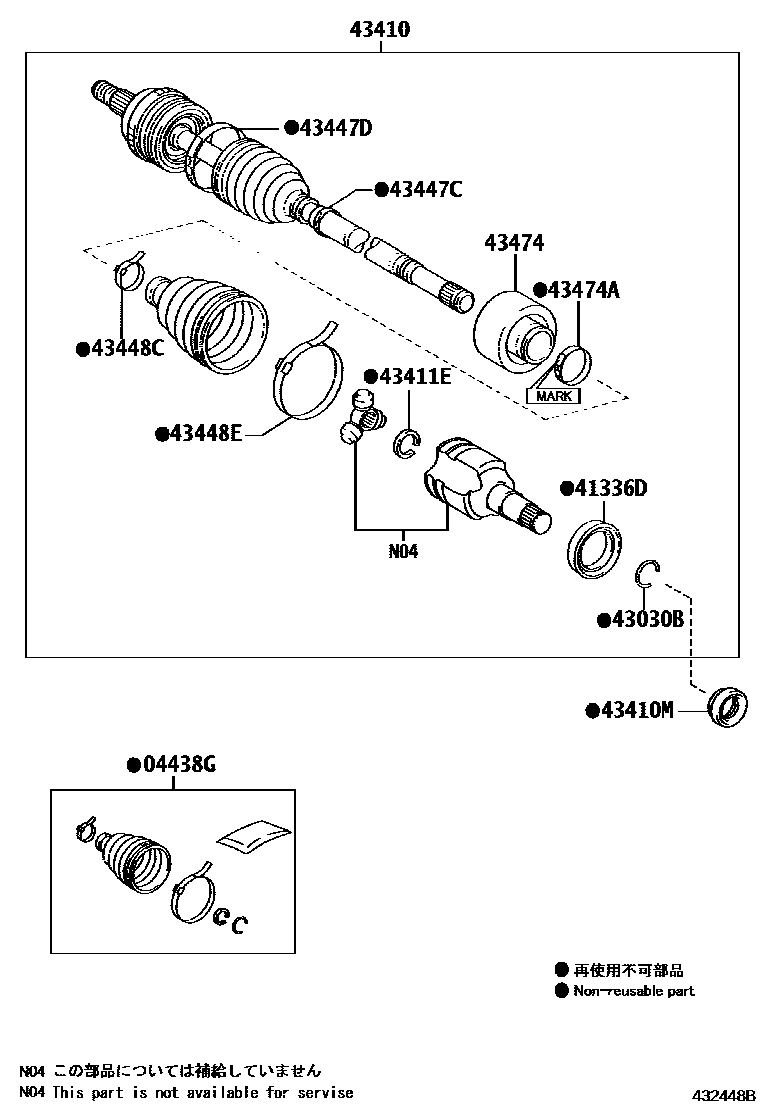

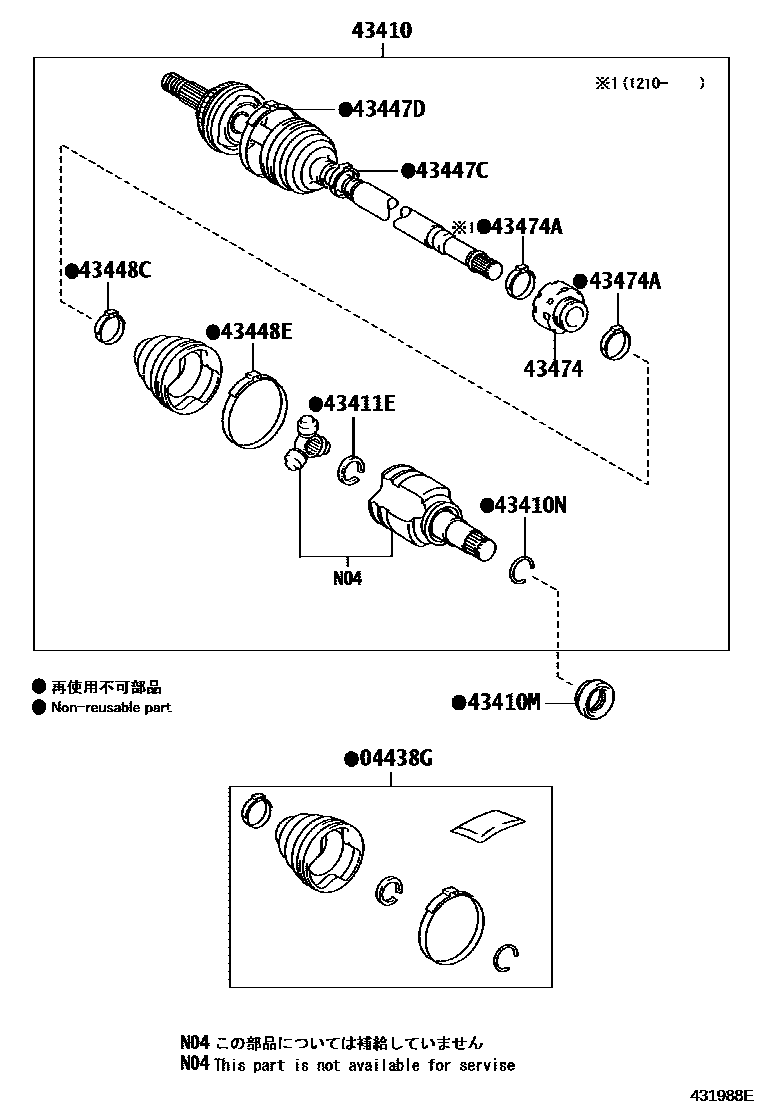

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-01020 · 04438-42201 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-01040 · 04428-02610 · 04428-42101 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-01020 · 04438-42201 |
| 41336D | Right front driveshaft dust cover | 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-12060 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-27005 |
| 43410 | Right front driveshaft assembly | 43410-01130 · 43410-01131 · 43410-02760 · 43410-02A00 · 43410-02A01 · 43410-12B00 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-35055 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-01030 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-01040 · 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-01040 · 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-01110 · 43420-02820 · 43420-02B10 · 43420-42091 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-01030 · 90521-27005 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-35054 · 90311-35068 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-01060 · 42345-0R080 · 42345-12190 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-01070 · 42345-0R070 · 42345-12180 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-01060 · 42345-0R080 · 42345-12190 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-01070 · 42345-0R070 · 42345-12180 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-01040 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-01030 · 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-01040 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-01030 · 42345-12160 |
| 43474 | drive shaft damper | 43474-01020 · 43474-01021 · 43474-12120 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02871 · 42345-07090 · 42345-14010 · 90949-01947 |
