Toyota COROLLA 车轮和车轮盖 — Figure 4103

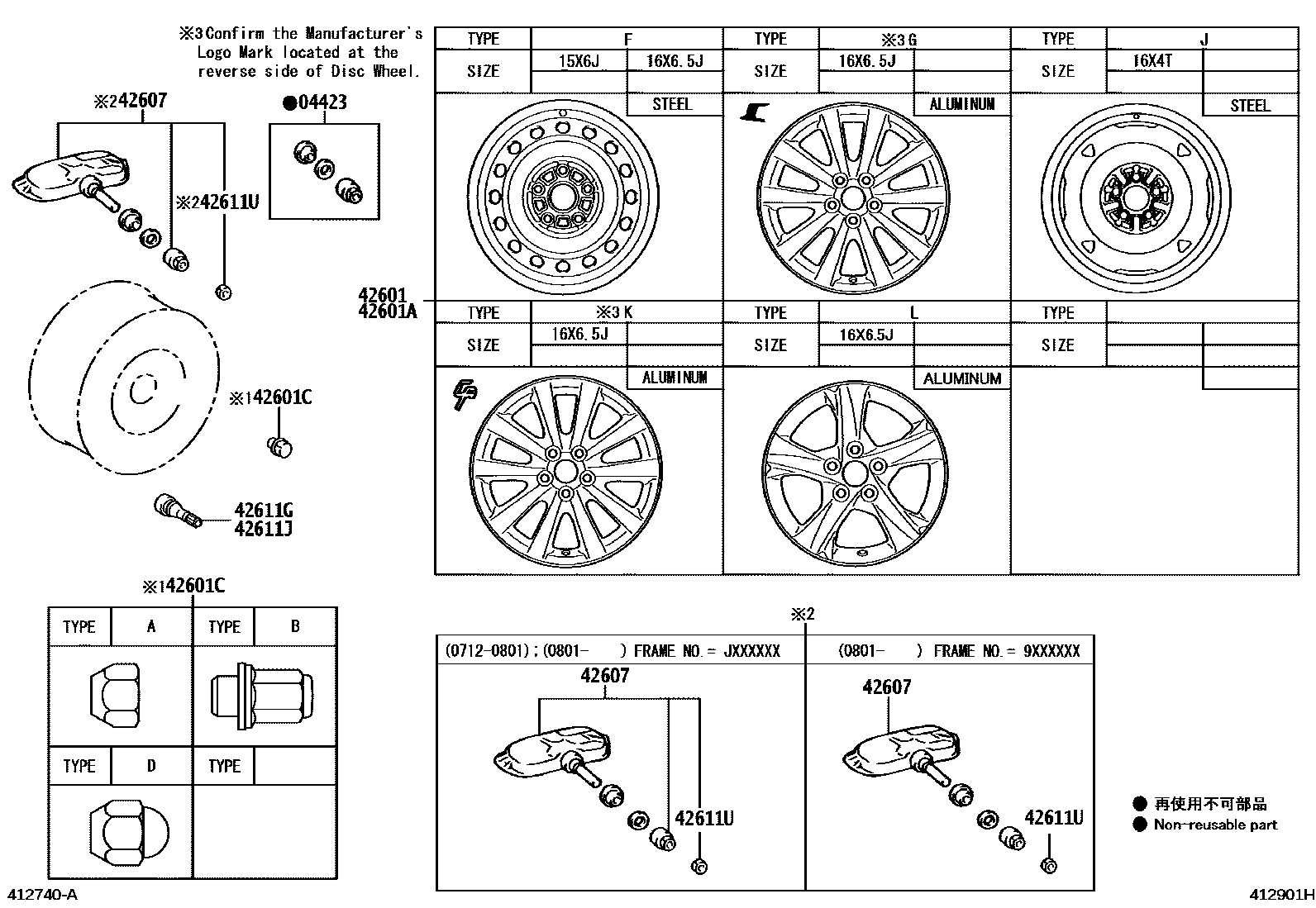

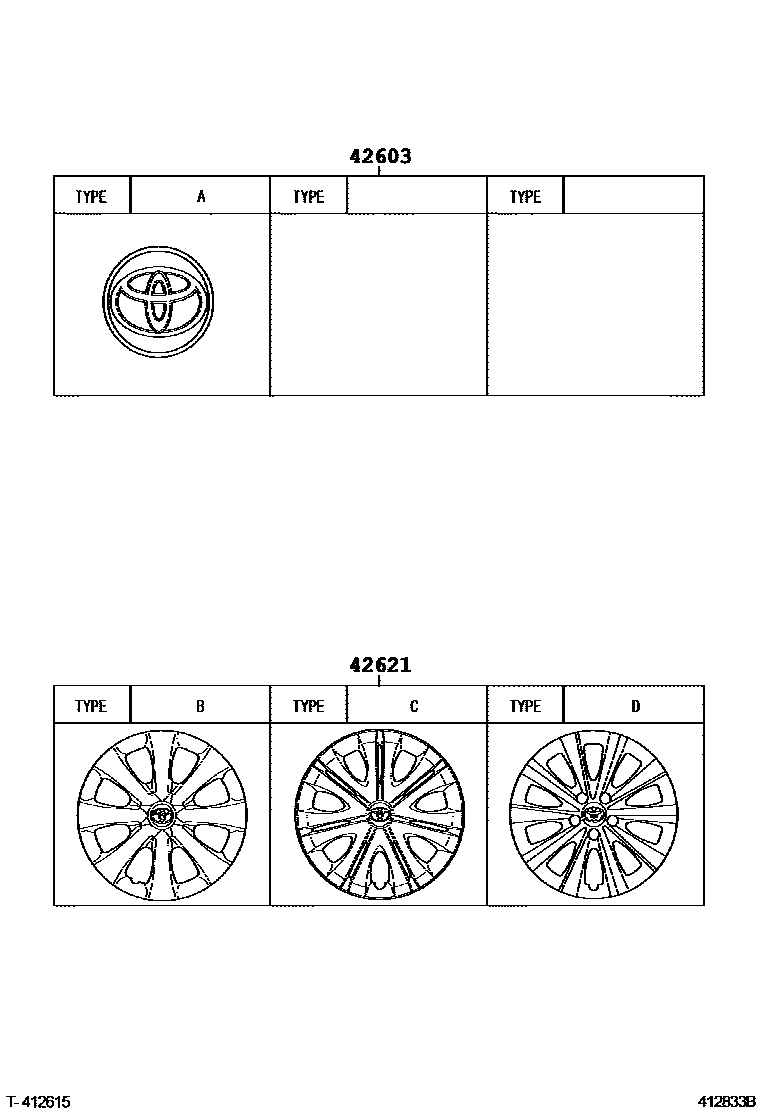

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33030 |
| 42601 | spoke wheel | 42611-02A10 · 42611-12B70 · 42611-12B80 · 42611-12C00 · 42611-12C10 |
| 42601A | Spoke wheel (for spare tire) | 42611-20840 · 42611-20A50 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01058 · 90942-01082 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-52110 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-33011 · 42607-33021 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-12720 · 42602-12790 · 42602-12860 · 42621-02110 · 42621-02130 |
