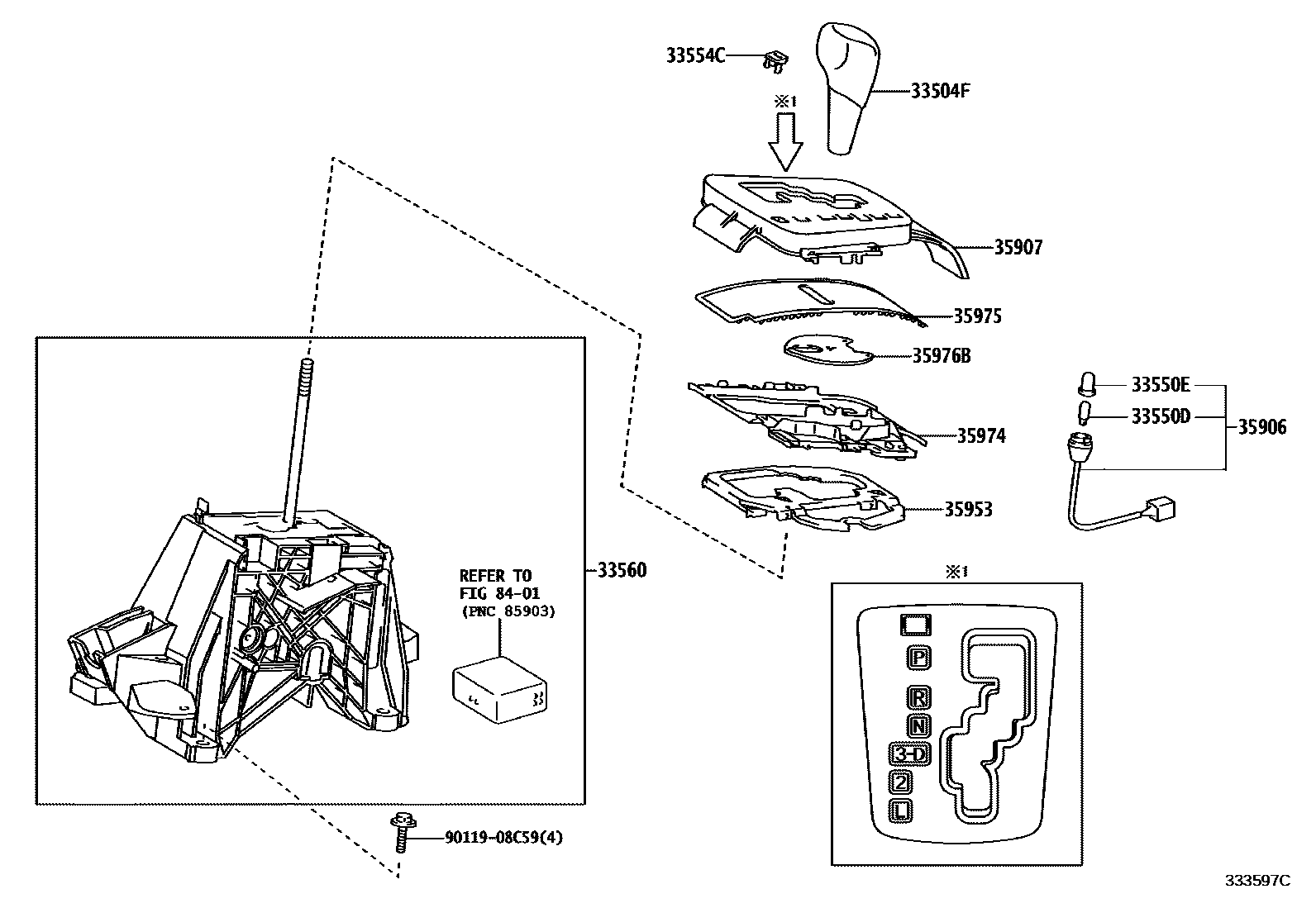

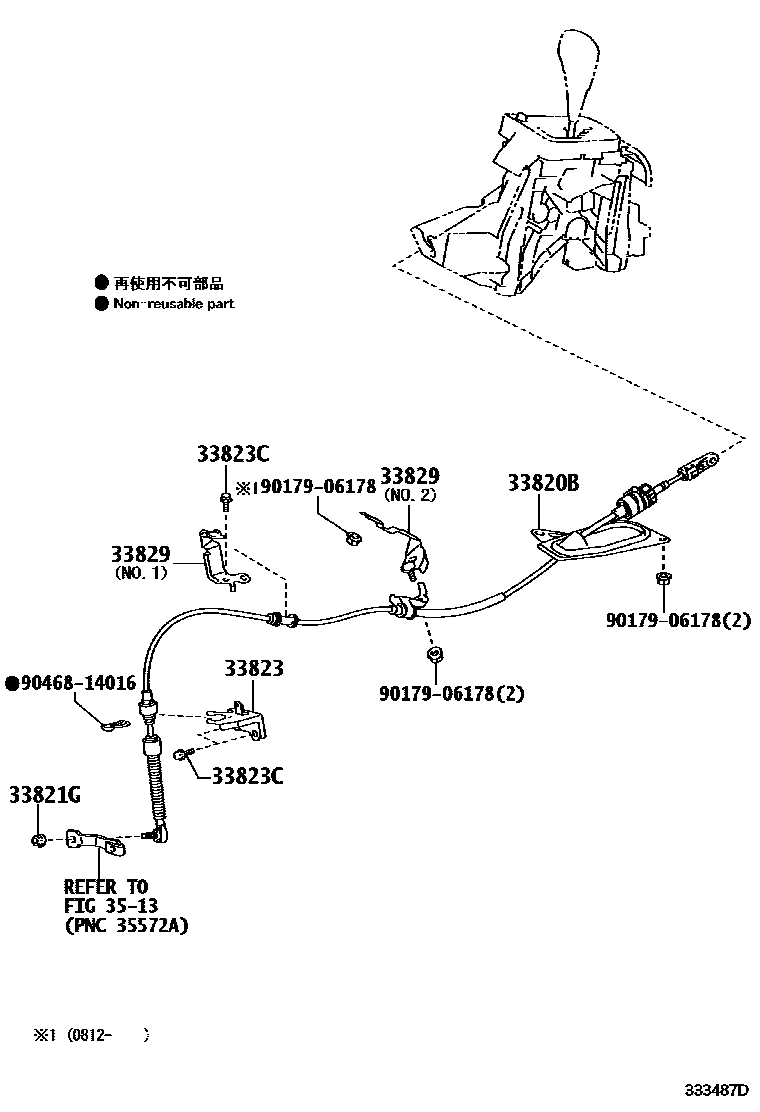

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04071 |
| 33554C | Shift lock release button cover | 33554-12120 · 33554-12130 |
| 33560 | Shift lock control unit assembly | 33560-12340 |
| 33820B | Transmission control cable assembly | 33820-12D30 |
| 33821G | Nut (for transmission control cable) | 90179-08061 |
| 33823 | No. 1 transmission control cable bracket | 33823-12280 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-B0816 |
| 33829 | Transmission control cable bracket | 33829-12120 · 33829-12130 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12270 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-12280 · 35907-12281 · 35907-12290 · 35907-12291 |
| 35953 | Position indicator light guide | 35953-12140 |
| 35974 | Position indicator light lower shell | 35974-12310 |
| 35975 | Slide cover (for position indicator light) | 35975-12400 |
| 35976B | Shift lever handle cover (for floor shift) | 35976-12160 |
