Toyota COROLLA Alternator — Figure 1903

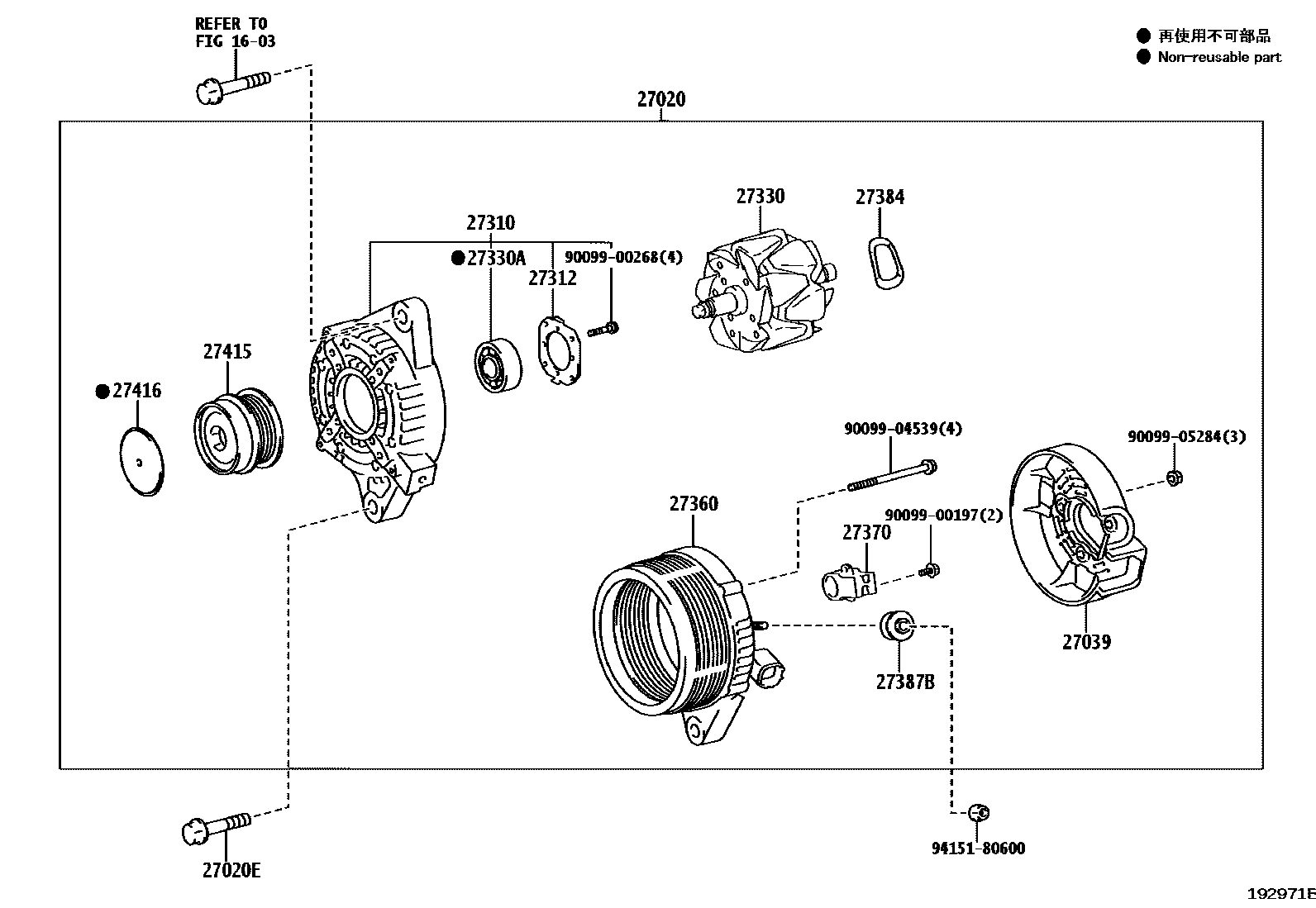

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.

Toyota COROLLA Alternator EPC diagram — 192971B
Alternator — 192971B (200712 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-37040 · 27060-37041 · 27060-37081
27020EBolts (for generator)90105-10307
27039Alternator Rear End Cover27039-26170 · 27039-31390
27310Alternator Drive End Frame Assembly27310-37030 · 27310-37100
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-30070
27330ABearings (for generator rotor)90099-10223
27360Alternator Stator Coil Assembly27360-37050
27370Alternator Brush Holder Assembly27370-31220
27384Washer27384-50030
27387BGenerator terminal insulation pad27387-20130
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T010 · 27415-0T011
27416Generator pulley cover27416-0W020
