Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 6 PNC and OE references.

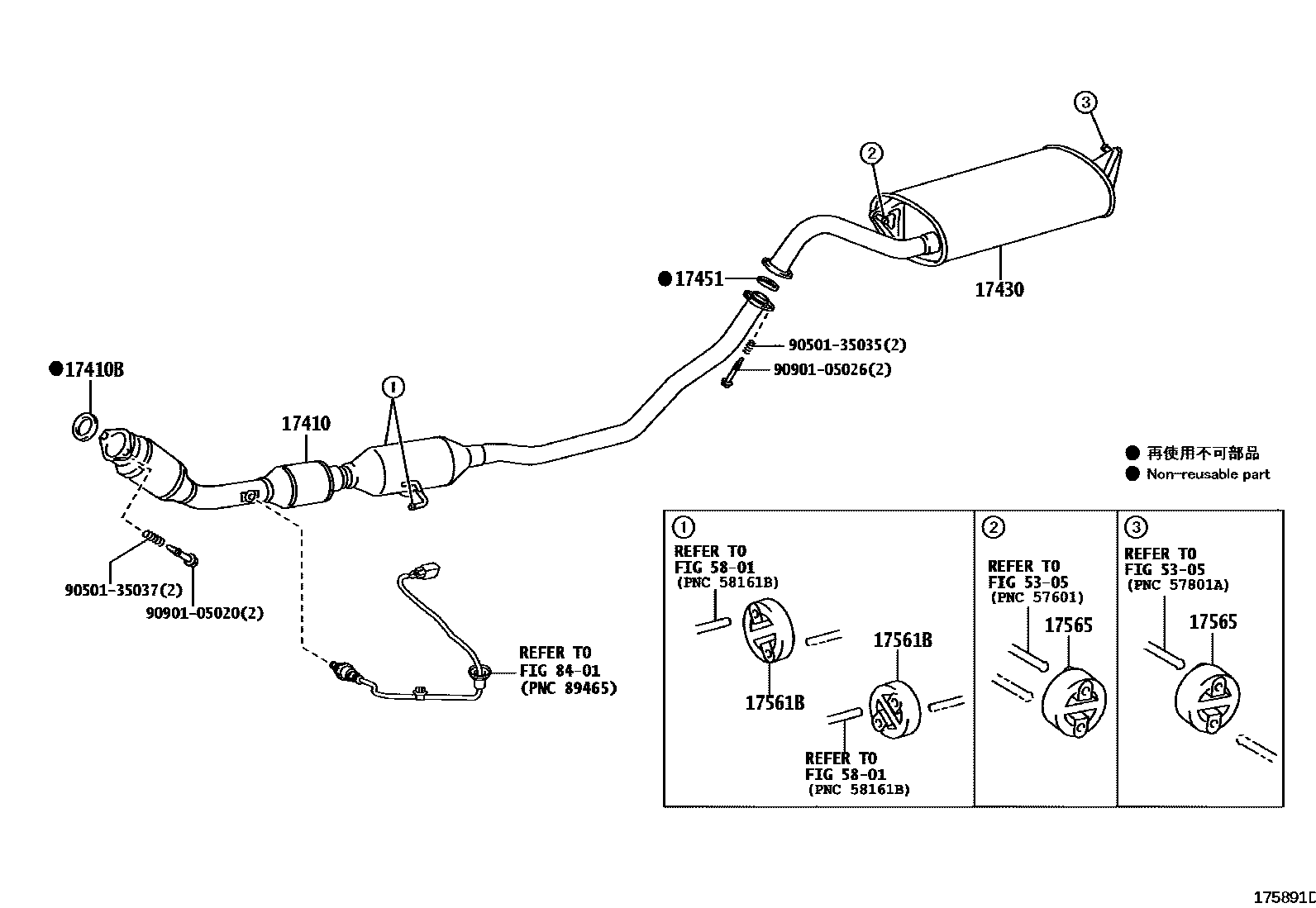

Toyota COROLLA Exhaust Pipe EPC diagram — 175891D — Exhaust Pipe — 175891D (200712 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-37260 · 17410-37420
17410B	Exhaust pipe gasket	17451-28040
17430	Exhaust tailpipe assembly	17430-37280
17451	Exhaust pipe gasket	17451-28030 · 17451-28031 · 17451-28032
17561B	No. 1 exhaust pipe lifting lug	17565-22030
17565	No. 5 exhaust pipe lifting lug	17565-22040
