Toyota COROLLA Engine Mounting — Figure 1107

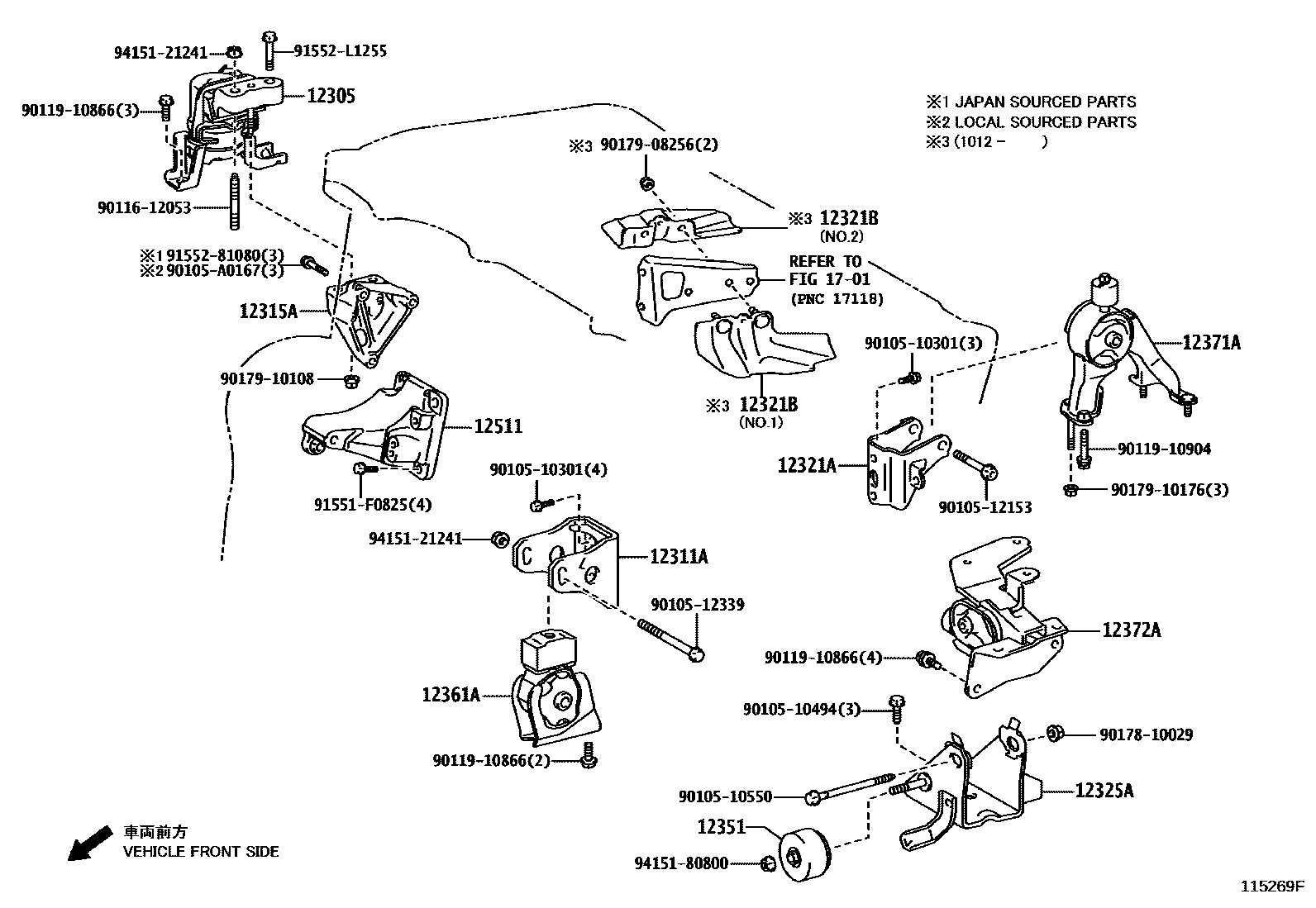

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-37070 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-37060 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-22130 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-22320 |
| 12351 | engine mount shock absorber | 12351-27050 · 12351-37120 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-37050 |
| 12371A | Engine rear mount vibration isolation pad | 12371-37060 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-22200 |
| 12511 | No. 1 generator bracket | 12511-0T030 · 12511-37010 |
