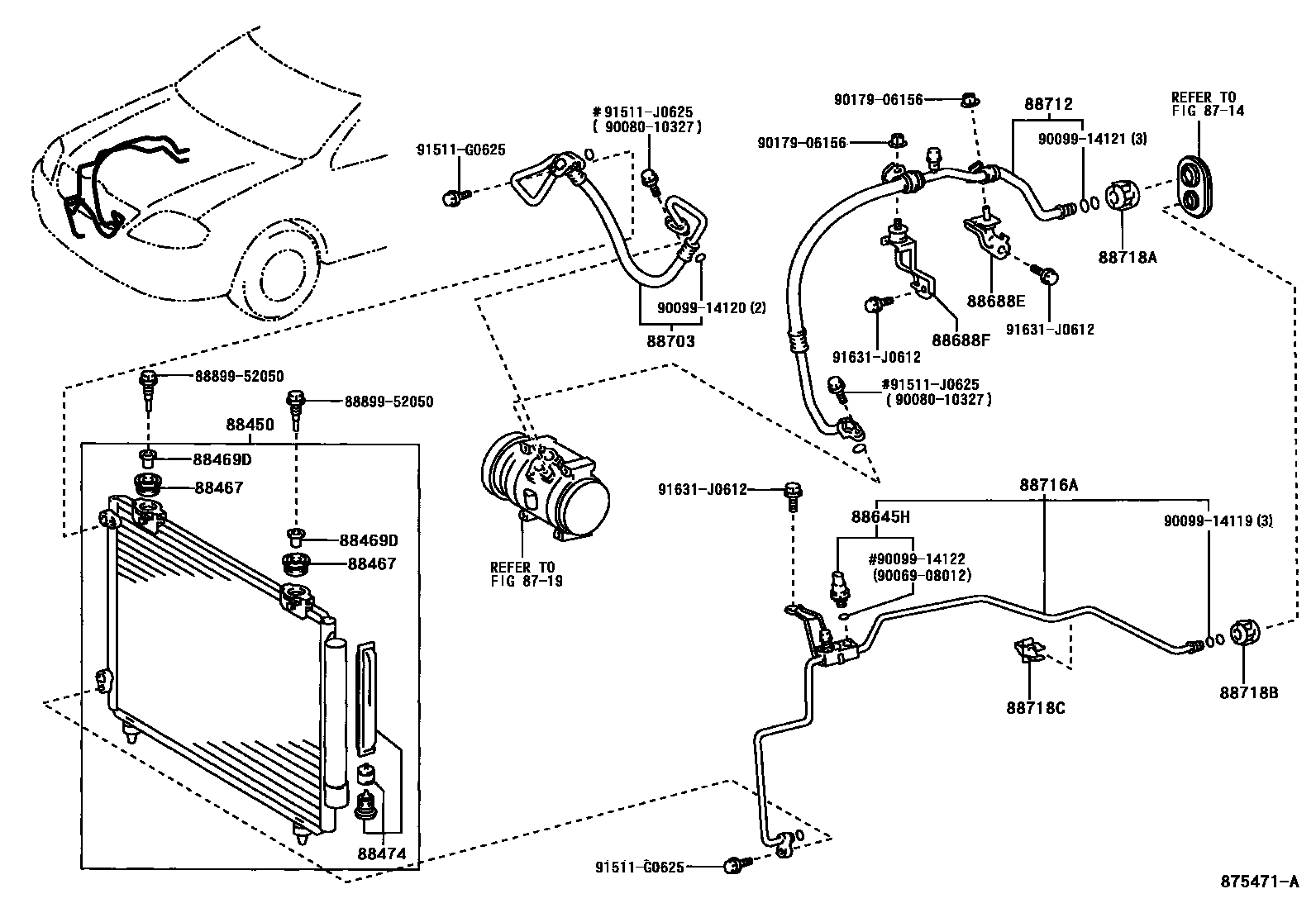

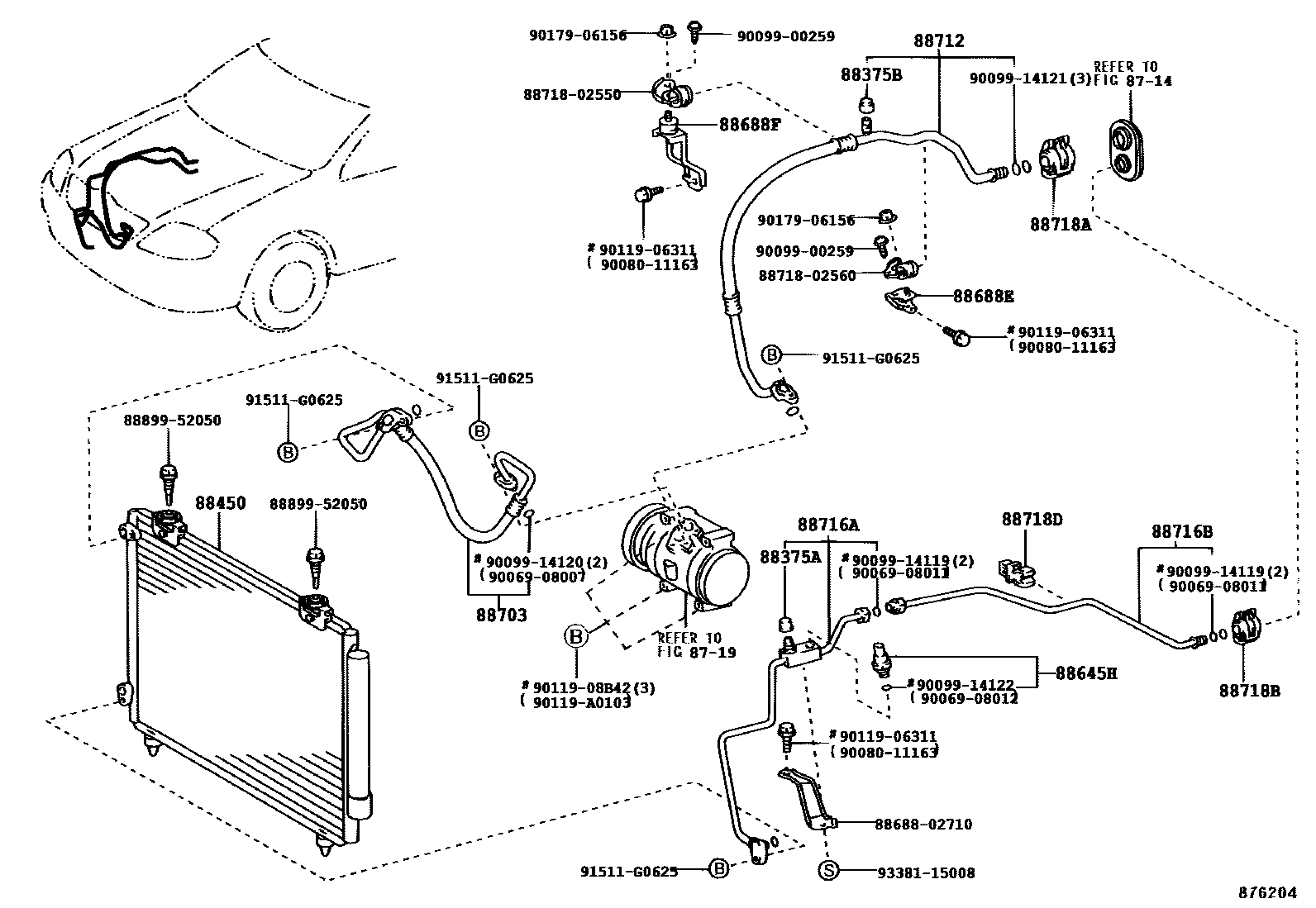

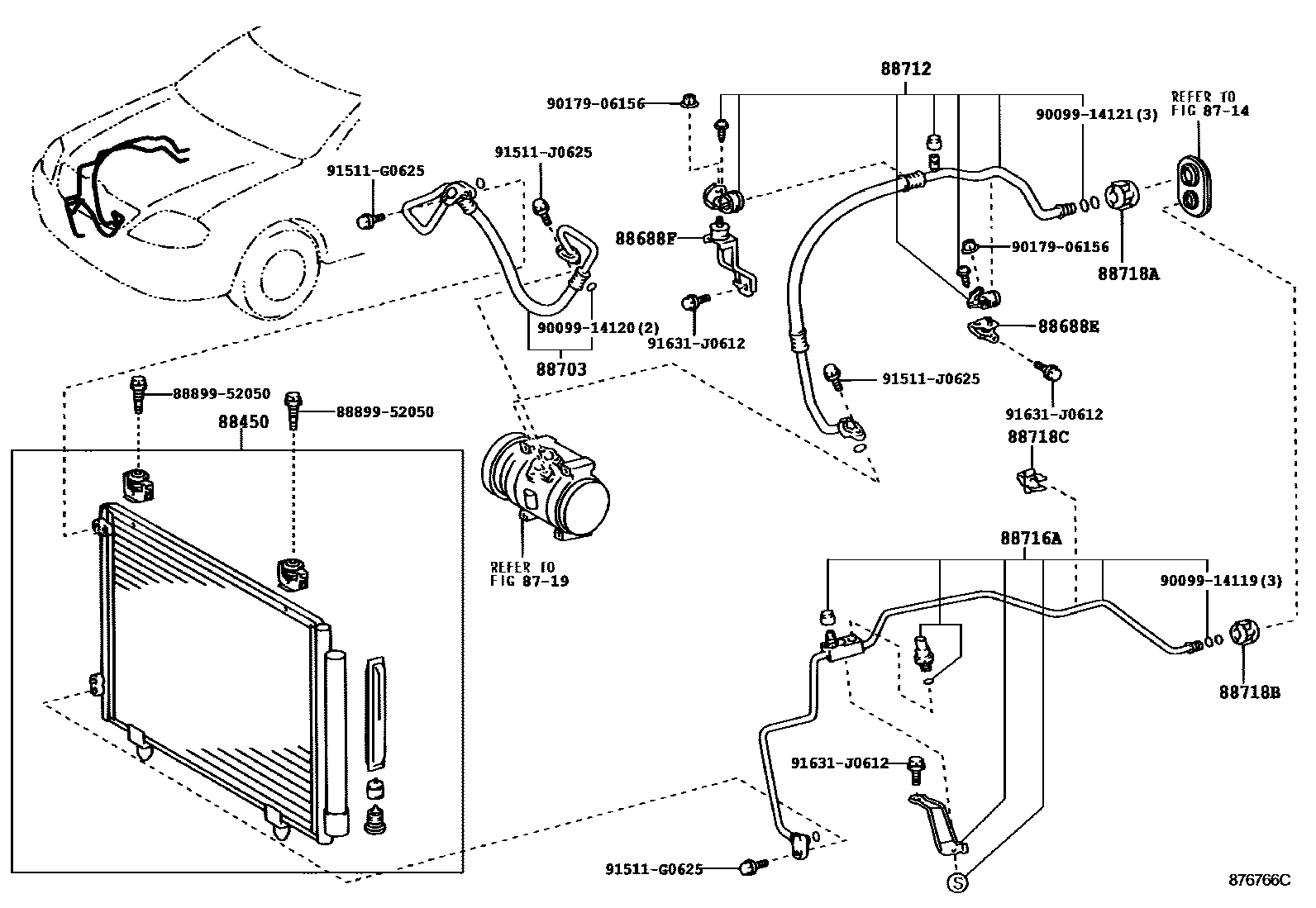

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-02060 |
| 88375B | No. 1 maintenance valve cover | 88375-02070 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02170 · 88450-12230 · 88450-12231 · 88450-12270 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02620 · 88688-1E050 · 88688-1E310 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02630 · 88688-1E060 |
| 88703 | Discharge hose sub-assembly | 88703-02112 · 88703-12591 · 88703-12670 · 88703-12741 · 88703-12742 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-1A030 · 88704-1A110 · 88704-1A111 · 88712-02220 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12620 · 88710-12680 · 88710-12720 · 88710-12721 · 88716-02390 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-02380 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-02160 · 88718-2D140 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-02170 · 88718-2D150 |
| 88718C | Clamp No. 3 (for cooler refrigerant pipe) | 88718-2A230 |
| 88718D | No. 4 clamp (for cooler refrigerant pipe) | 88718-02600 |
