Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

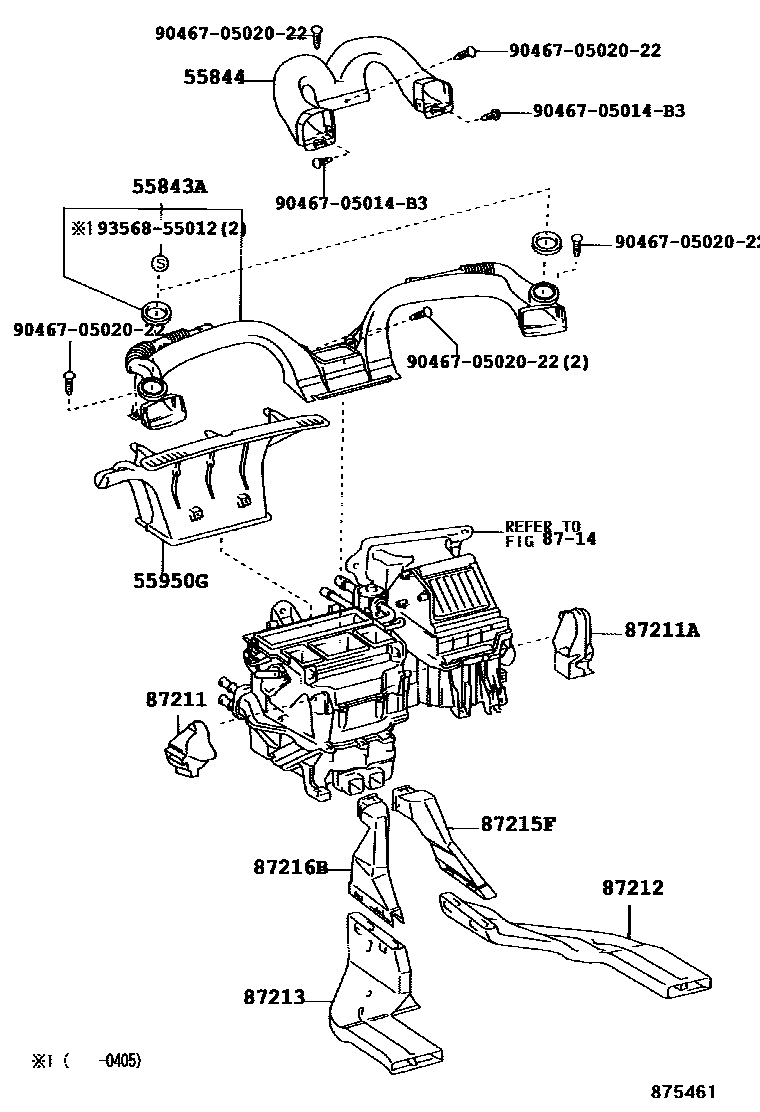

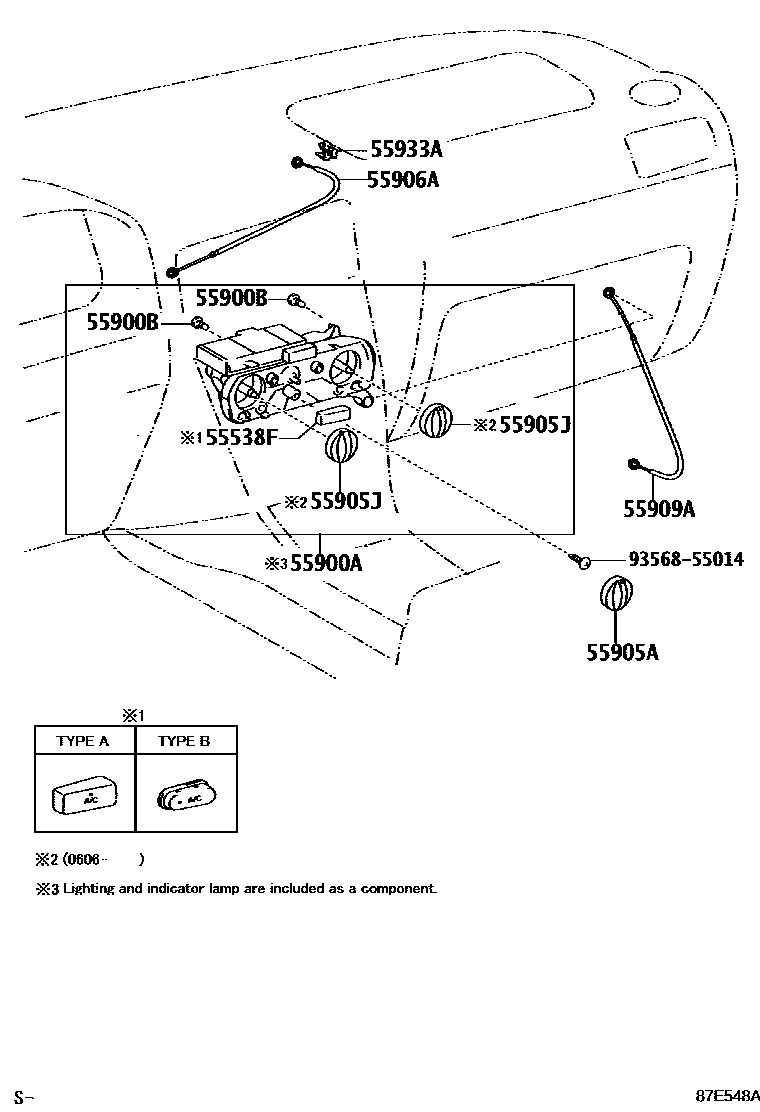

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55538F | Cooler switch hole cover | 55538-02040 · 55538-02050 · 55538-02060 |
| 55843A | Air duct No. 1 from heater to air register | 55843-02130 · 55843-12320 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12470 |
| 55900A | Heater control and accessory assembly | 55900-02190 · 55900-02191 · 55900-02200 · 55900-02201 |
| 55900B | air conditioning control light bulb | 90011-01019 · 90011-01020 |
| 55905A | Heater control button | 55905-02170 |
| 55905J | Control button sub-assembly | 55905-02290 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12400 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12320 |
| 55933A | Heater control cable clip | 55933-52010 |
| 55950G | Defroster nozzle assembly | 55950-12250 |
| 87211 | No. 1 air duct | 87211-02090 |
| 87211A | Duct No. 2 | 87211-02100 |
| 87212 | No. 1 rear air duct | 87212-12120 |
| 87213 | No. 2 rear air duct | 87213-12080 |
| 87215F | No. 3 rear air duct | 87215-12040 |
| 87216B | No. 4 rear air duct | 87216-12020 |
