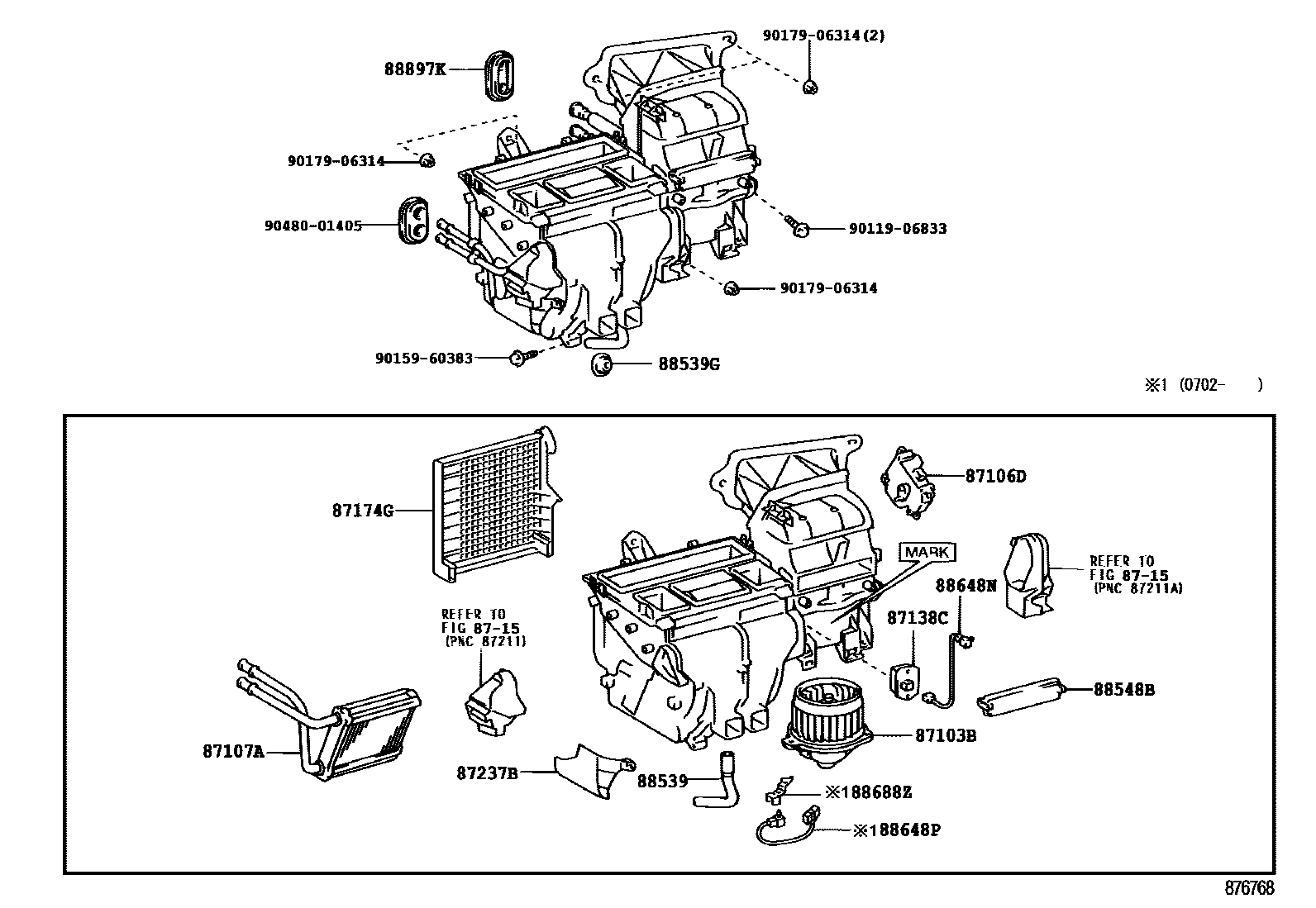

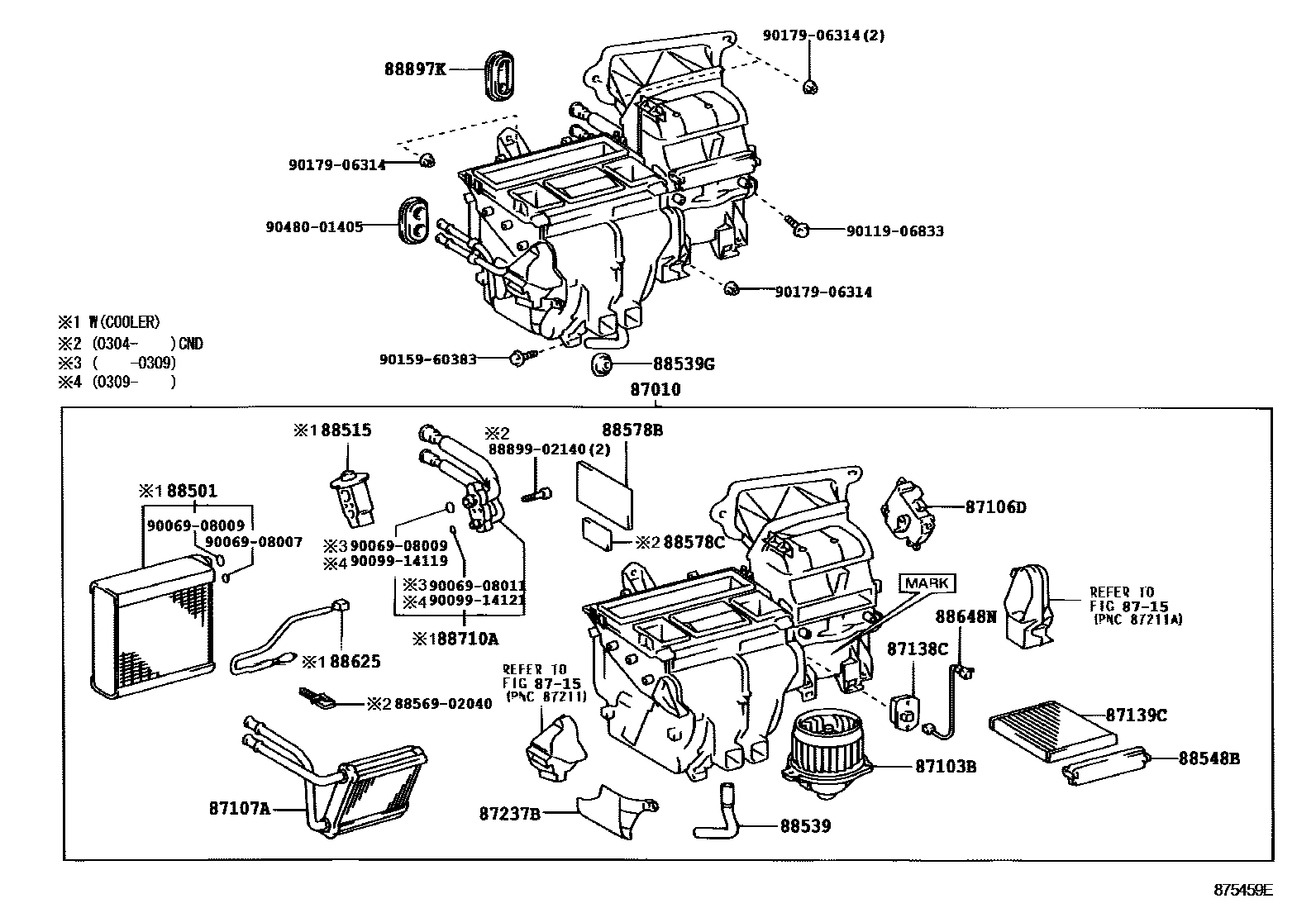

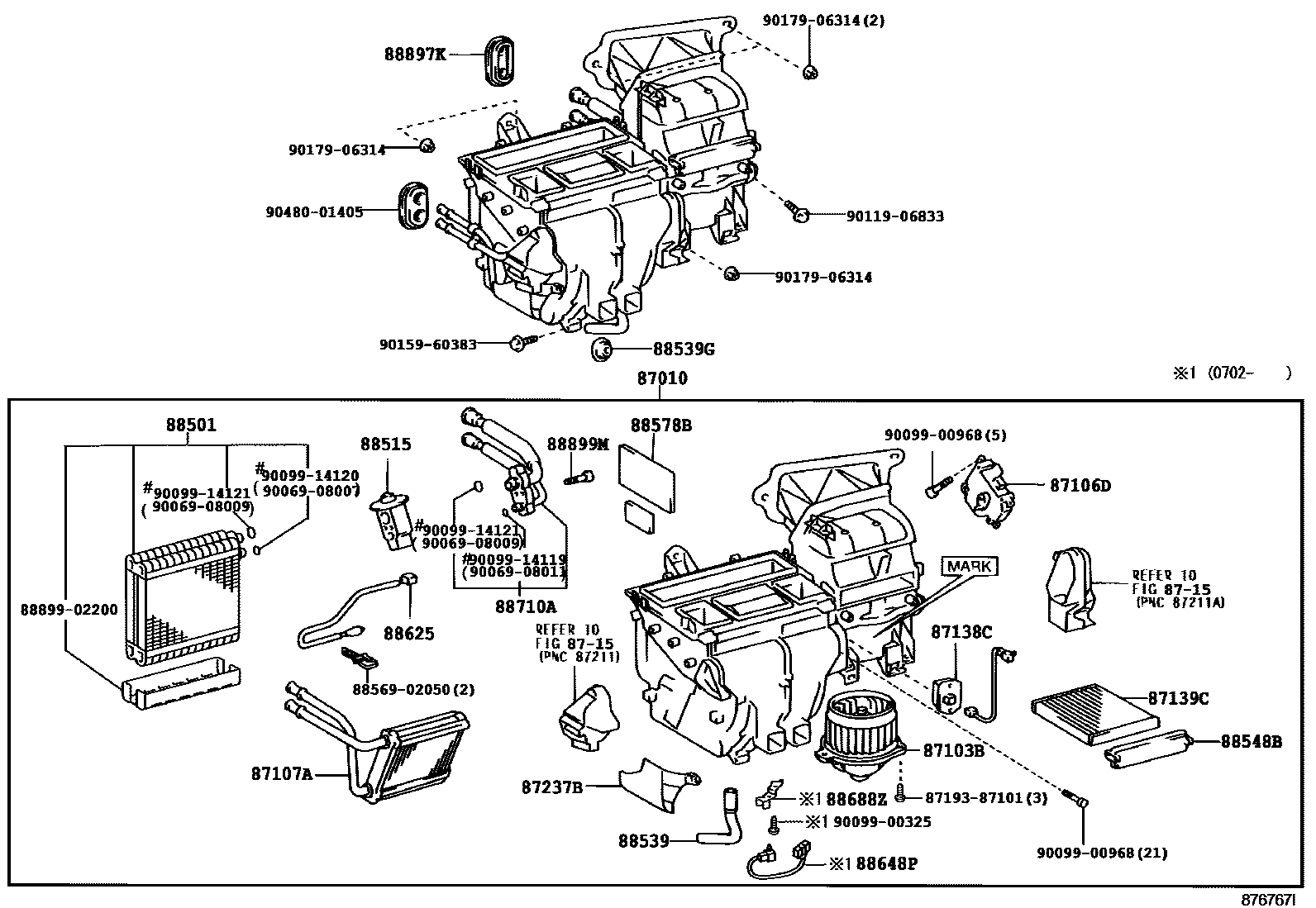

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-02230 · 87010-02240 · 87010-02250 · 87010-02260 · 87010-02720 · 87010-02721 |
| 87103B | Blower motor sub-assembly with fan | 87103-02050 · 87103-02320 |
| 87106D | No. 1 damper servo mechanism sub-assembly | 87106-02020 |
| 87107A | Heater radiator device sub-assembly | 87107-02100 · 87107-02200 |
| 87138C | Blower resistor | 87138-02030 · 87138-02080 |
| 87139C | air purification filter | 88568-02020 |
| 87174G | Air heater deflector | 87174-02040 |
| 87237B | Heater connection cover | 87237-02010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02080 · 88501-02180 |
| 88515 | Cooler expansion valve | 88515-02100 · 88515-02110 · 88515-07020 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-02060 |
| 88539G | Seal (for cooler unit drain hose) | 90099-32129 |
| 88548B | air filter housing | 88548-02030 |
| 88578B | Cooling unit seal No. 1 | 88578-02050 |
| 88578C | No. 2 cooling unit seal | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88625-02050 · 88625-02051 · 88625-02100 |
| 88648N | No. 2 cooler wiring harness | 88648-02180 |
| 88648P | Air conditioner No. 1 wiring harness | 88648-02360 |
| 88688Z | Bracket | 88688-0Z470 |
| 88710A | Air conditioning pipe assembly | 88710-02250 · 88710-02720 |
| 88897K | Seals (for cooler tubes) | 90480-01434 |
| 88899M | cover (for air cleaner) | 88899-02140 |
