Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.

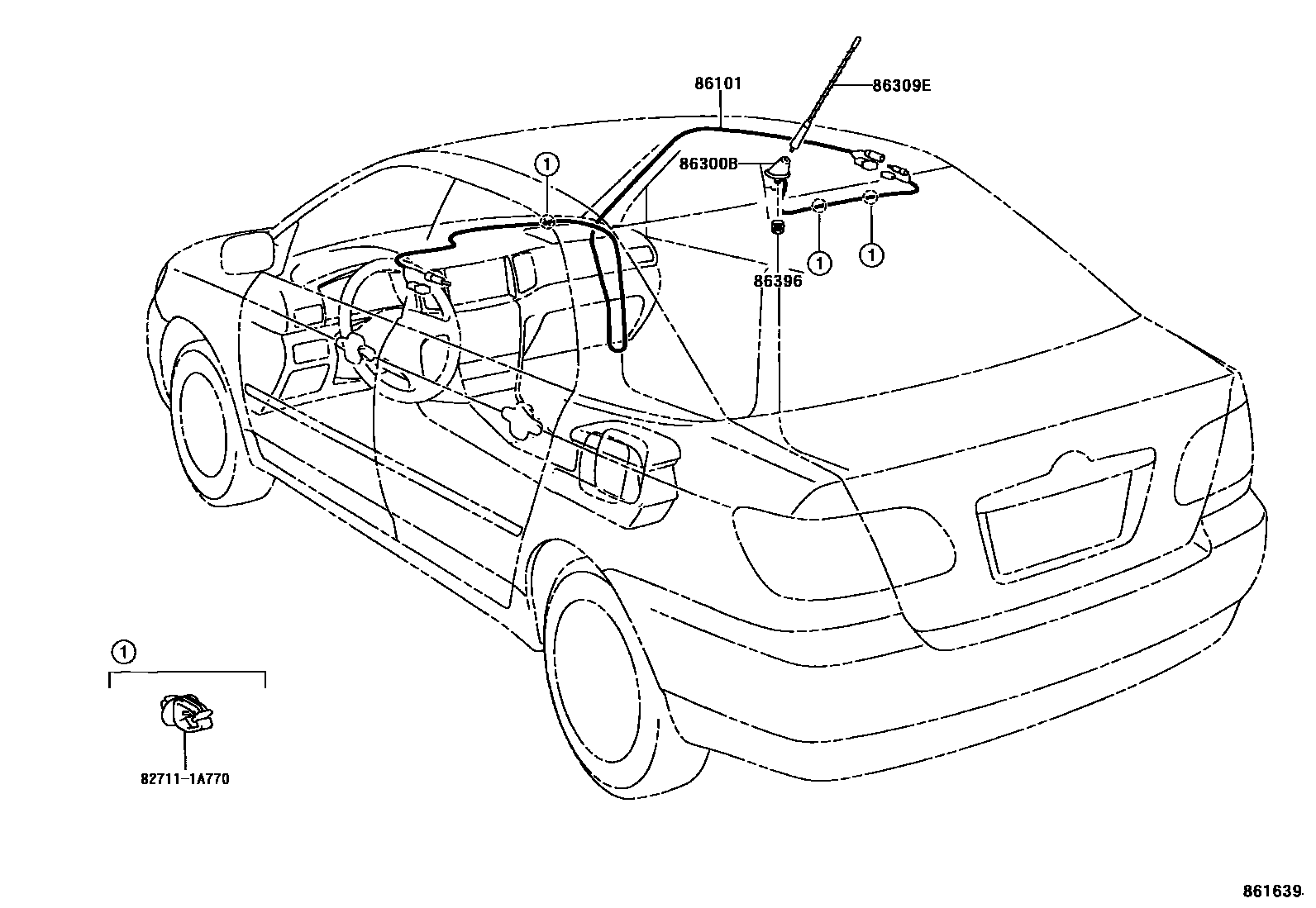

Toyota COROLLA antenna EPC diagram — 861639
antenna — 861639 (200204 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-02080
86300BAmplifier antenna assembly86300-02090
86309ERoof antenna sub-assembly86309-02050
86396Antenna nut86396-02030
