Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

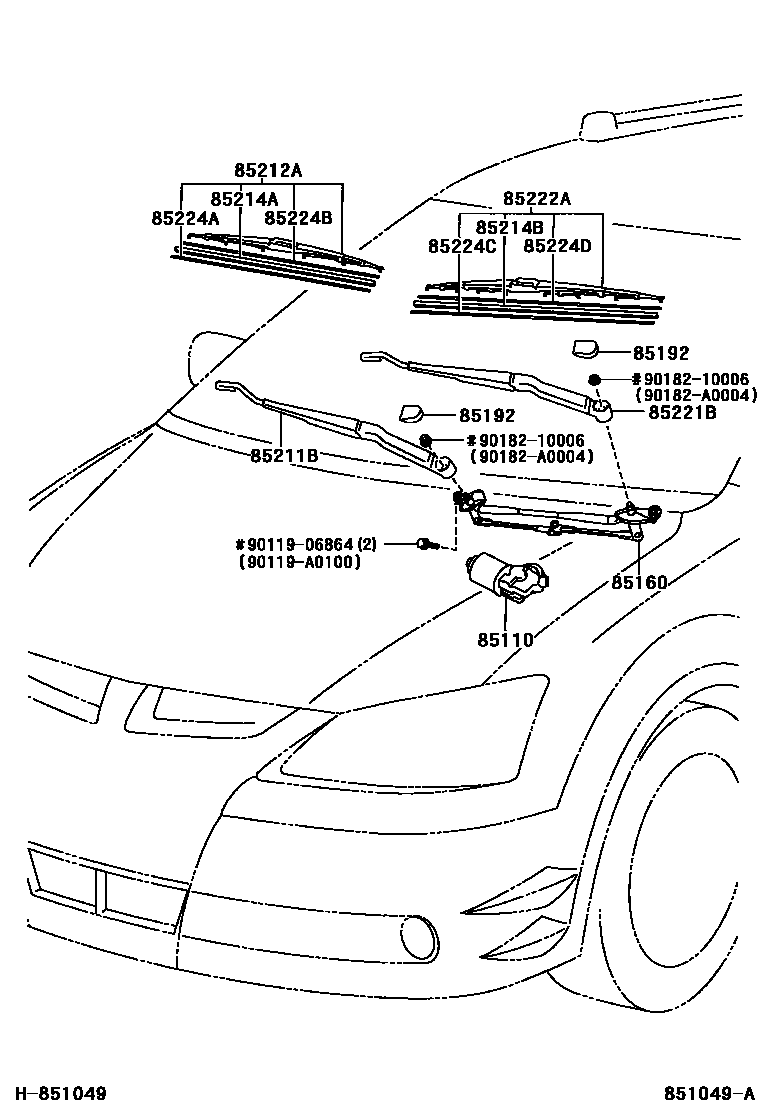

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02110 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02090 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-02120 |
| 85212A | Right front wiper blade | 85212-02120 · 85212-02121 |
| 85214A | Right wiper rubber strip | 85214-02140 · 85214-02141 |
| 85214B | Left wiper rubber strip | 85214-02150 |
| 85221B | Left front wiper arm | 85221-02130 |
| 85222A | Left front wiper blade | 85222-02130 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-08010 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-08010 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-08020 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-08020 |
