Toyota COROLLA 电子燃油喷射系统 — Figure 8404

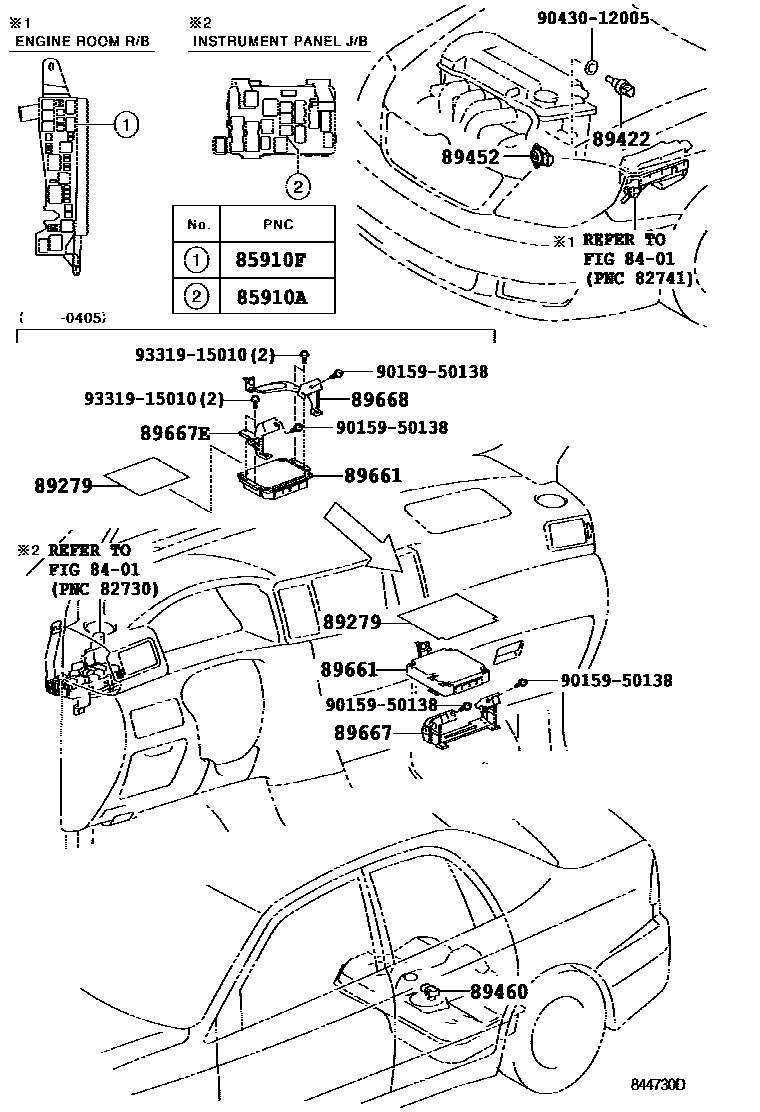

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02020 · 90987-02027 |
| 85910F | ECU relay (for EFI) | 90987-02020 · 90987-02027 |
| 89279 | Engine control ECU cover | 89279-02060 · 89279-02080 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20130 |
| 89460 | Steam pressure sensor assembly | 89461-02030 |
| 89661 | Engine control ECU | 89661-02C10 · 89661-02C11 · 89661-02C12 · 89661-02C13 · 89661-02D01 · 89661-02D02 · 89661-02K20 · 89661-0Z080 · 89661-0Z081 · 89661-0Z090 · 89661-0Z091 · 89661-0Z092 · 89666-02141 |
| 89667 | Engine control ECU bracket | 89667-02110 |
| 89667E | No. 1 engine control ECU bracket | 89667-02060 |
| 89668 | No. 2 engine control ECU bracket | 89668-02060 |
