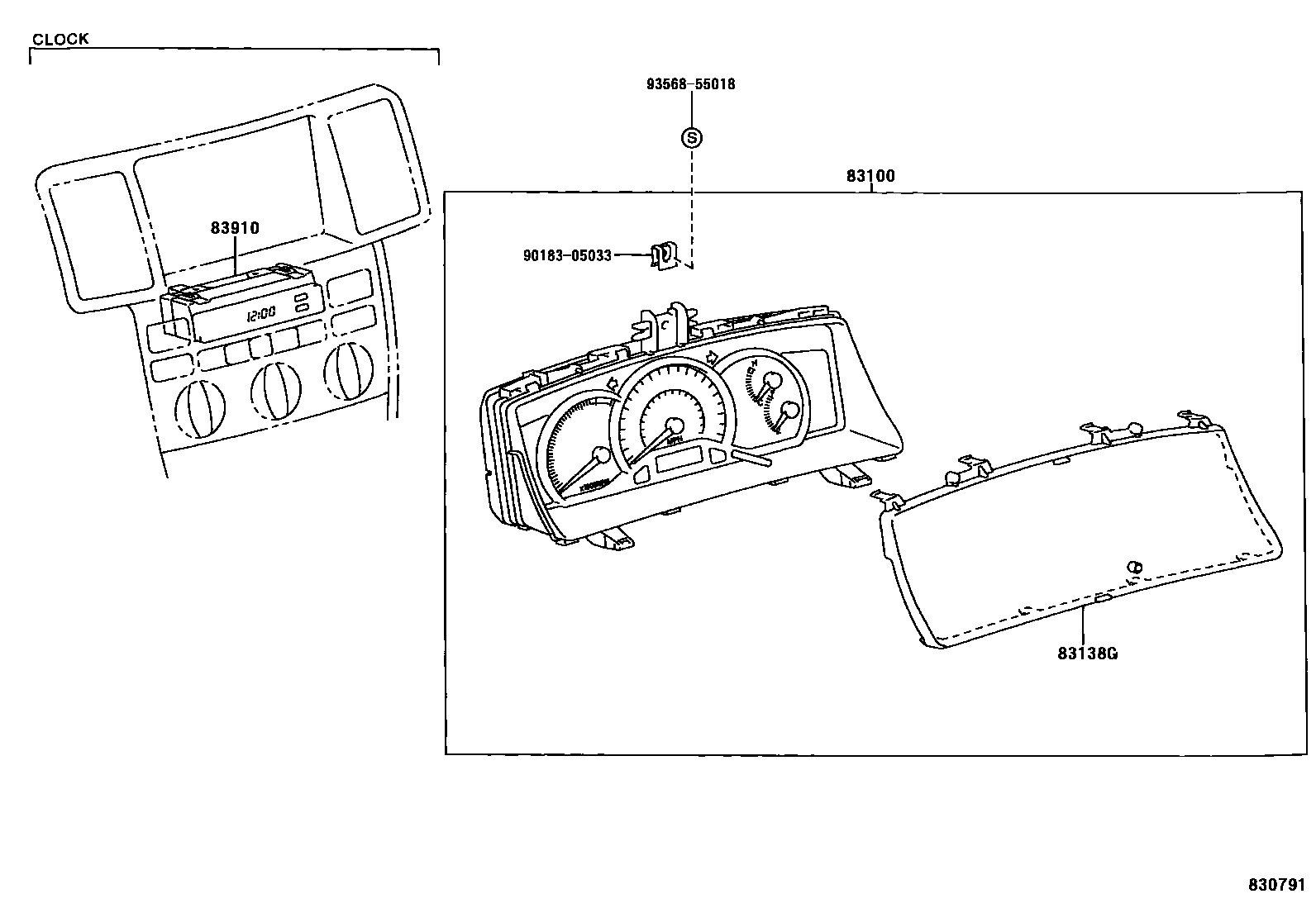

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-02680 · 83800-02690 · 83800-02710 · 83800-02720 · 83800-02D40 · 83800-02D90 |
| 83138G | Instrument cluster glass | 83852-02680 · 83852-02D90 |
| 83910 | clock assembly | 83910-02070 |
