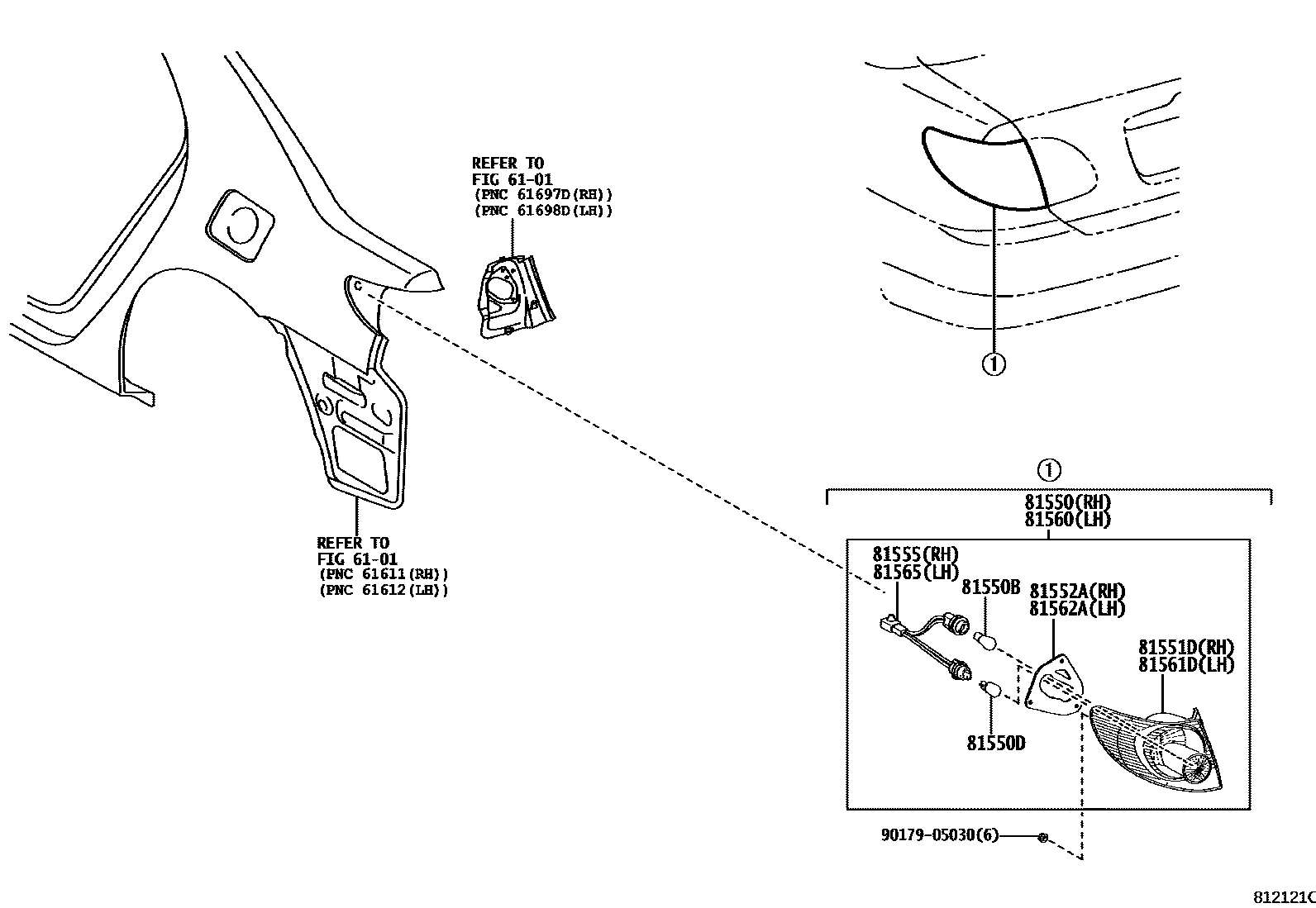

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-02200 · 81550-02290 |
| 81550B | Bulb (for rear combination lights) | 90084-98027 · 90084-98036 |
| 81550D | Bulb (for rear combination lights) | 90084-98037 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02200 · 81551-02290 |
| 81552A | Right rear combination light gasket | 81552-02200 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02200 |
| 81560 | Left rear combination light assembly | 81560-02200 · 81560-02290 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02200 · 81561-02290 |
| 81562A | Left rear combination light gasket | 81552-02200 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02200 |
