Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 6 PNC and OE references.

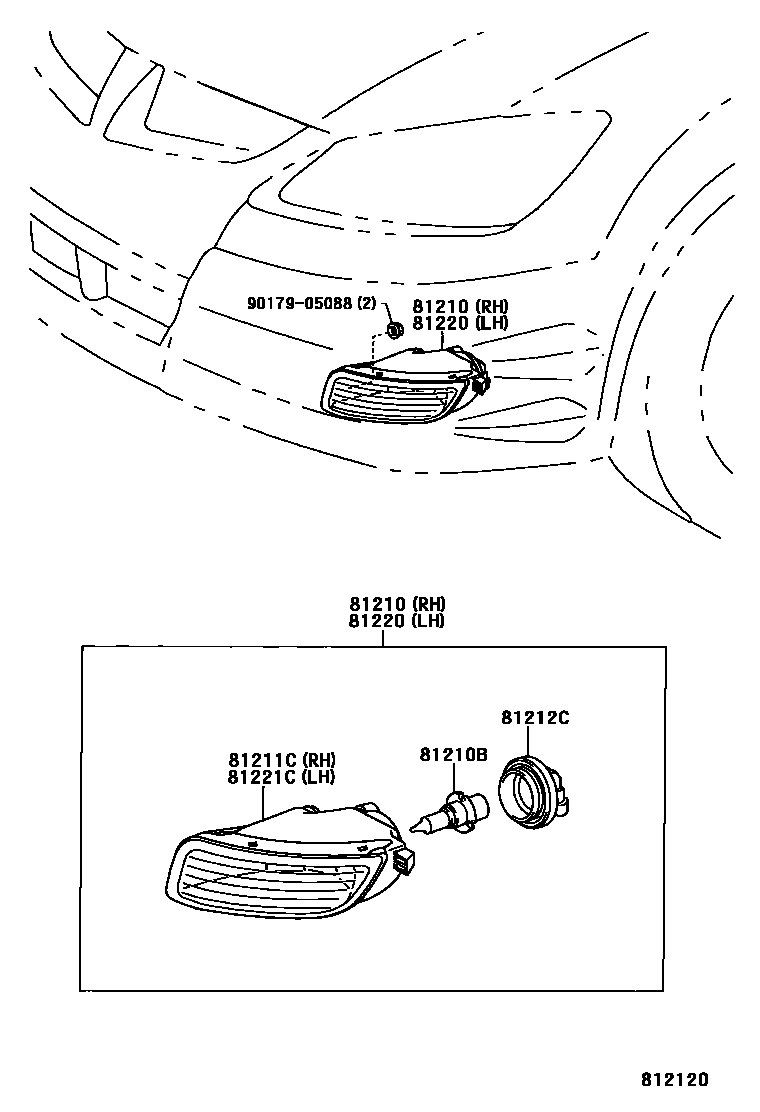

Toyota COROLLA Fog Lamp EPC diagram — 812120
Fog Lamp — 812120 (200204 – 999999)

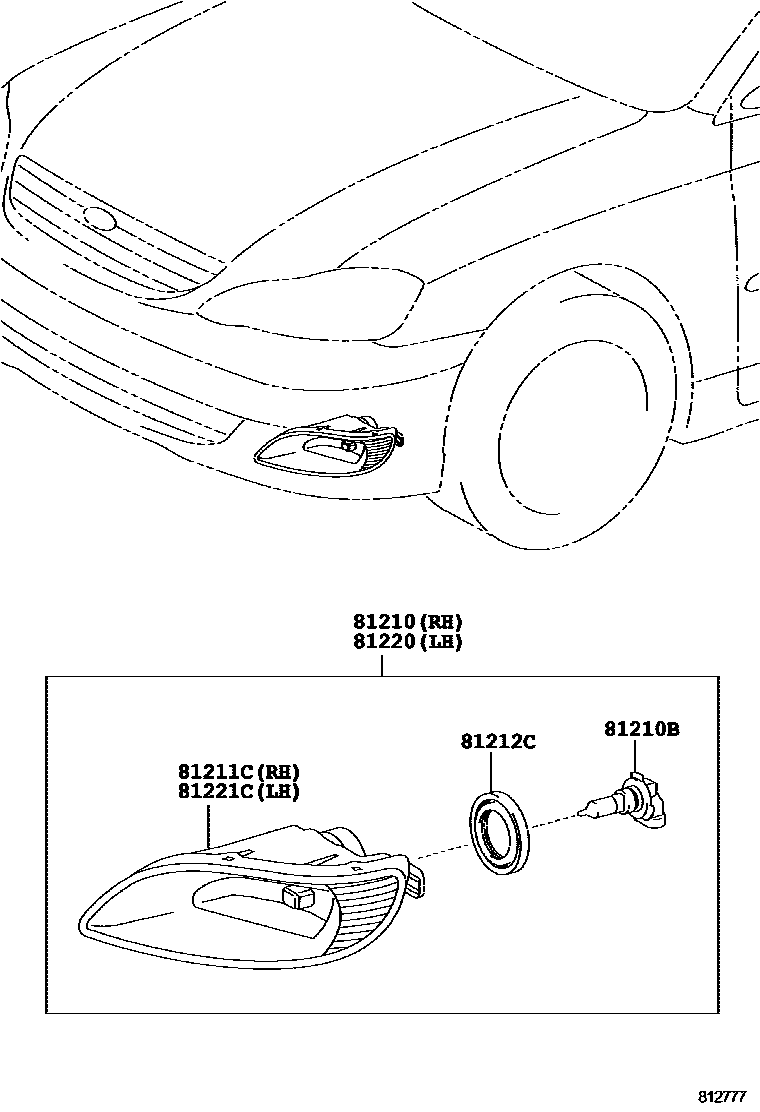

Toyota COROLLA Fog Lamp EPC diagram — 812777C
Fog Lamp — 812777C (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210Fog light assembly81210-02060
81210Bfog light bulb90080-81084 · 90981-13047
81211CRight fog light assembly81211-02060 · 81211-AA010 · 81211-AA011
81212Cfog light cover81212-06010 · 90069-81009
81220Left fog light assembly81220-02060
81221CLeft fog light assembly81221-02060 · 81221-AA010 · 81221-AA011
