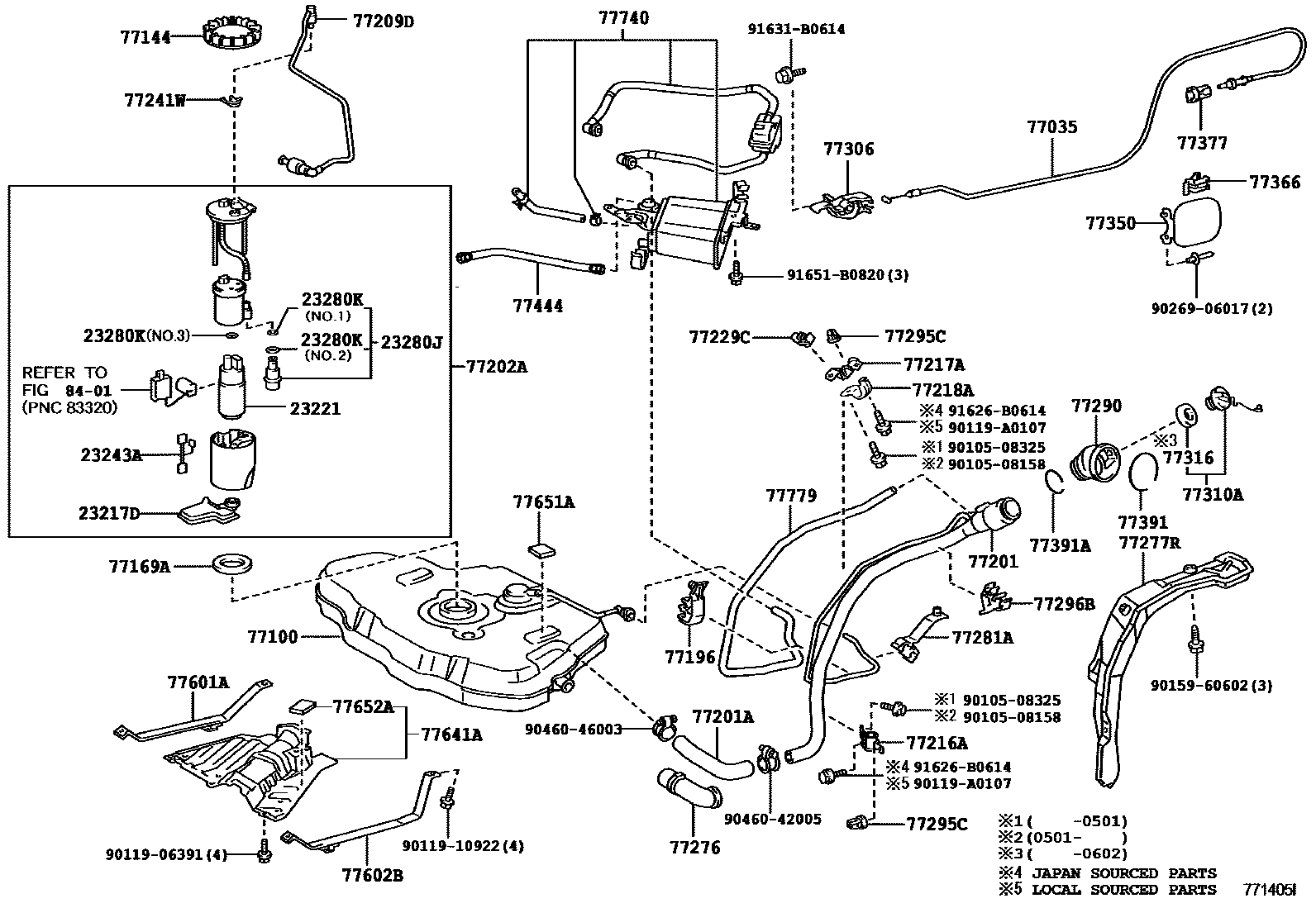

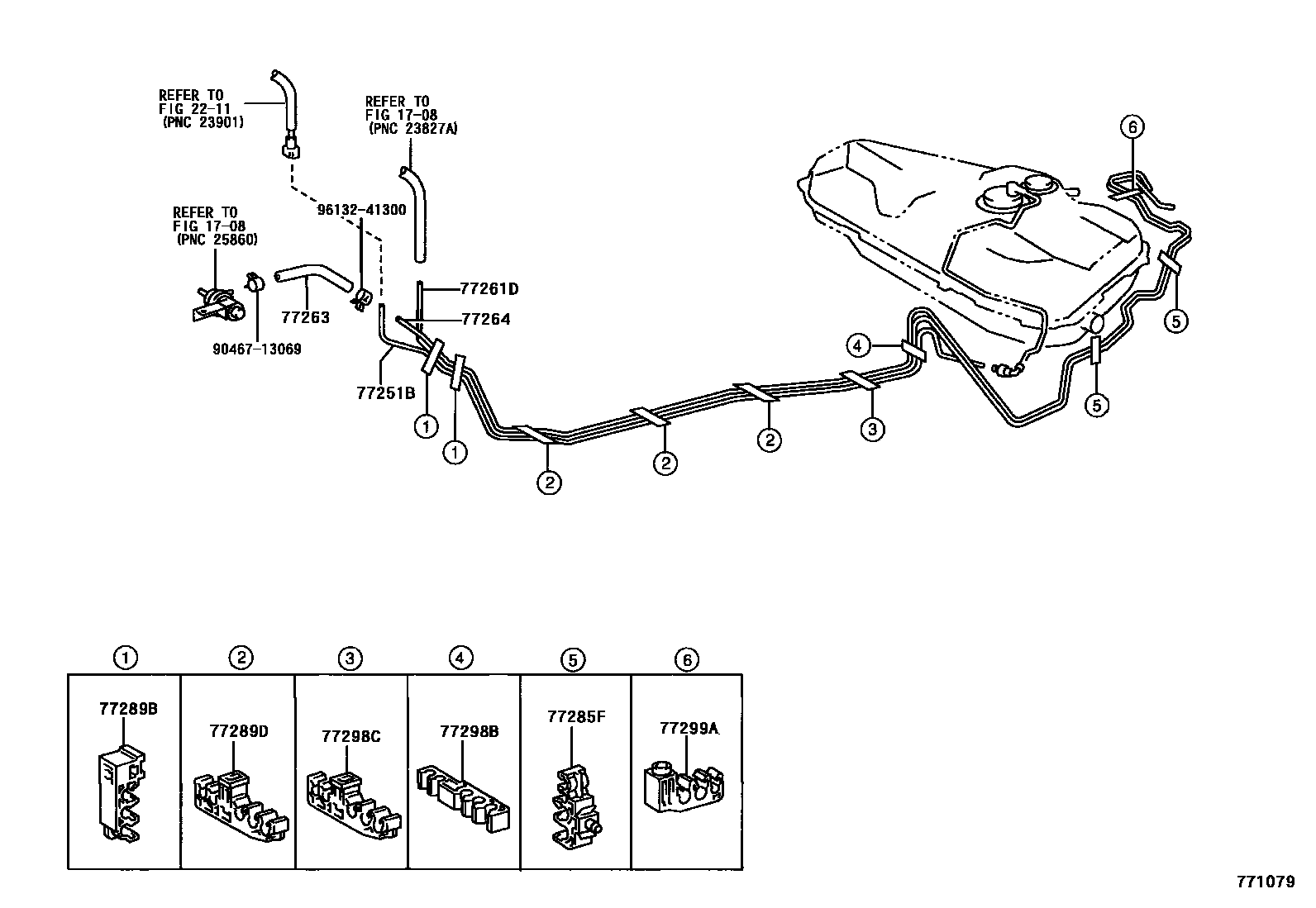

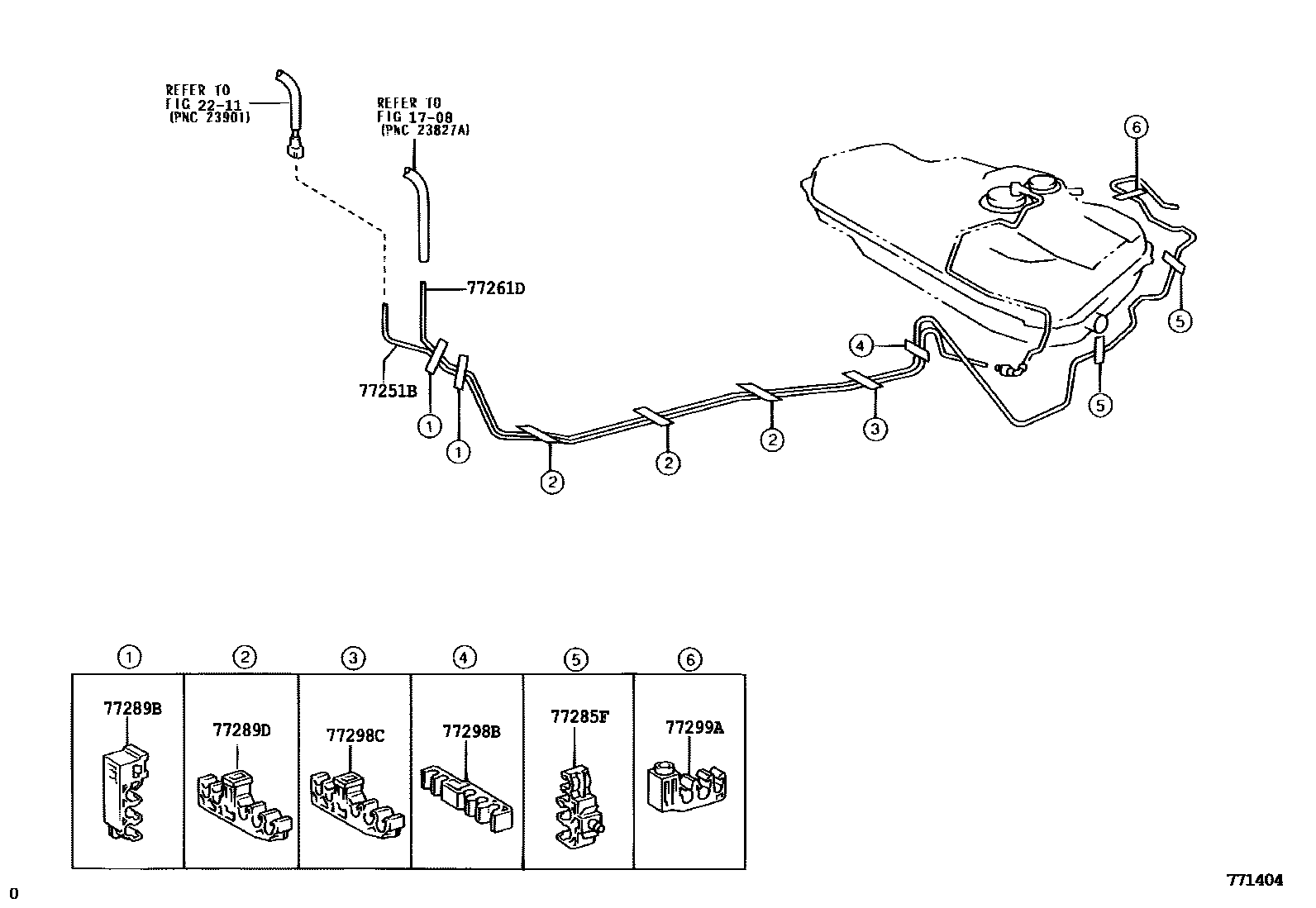

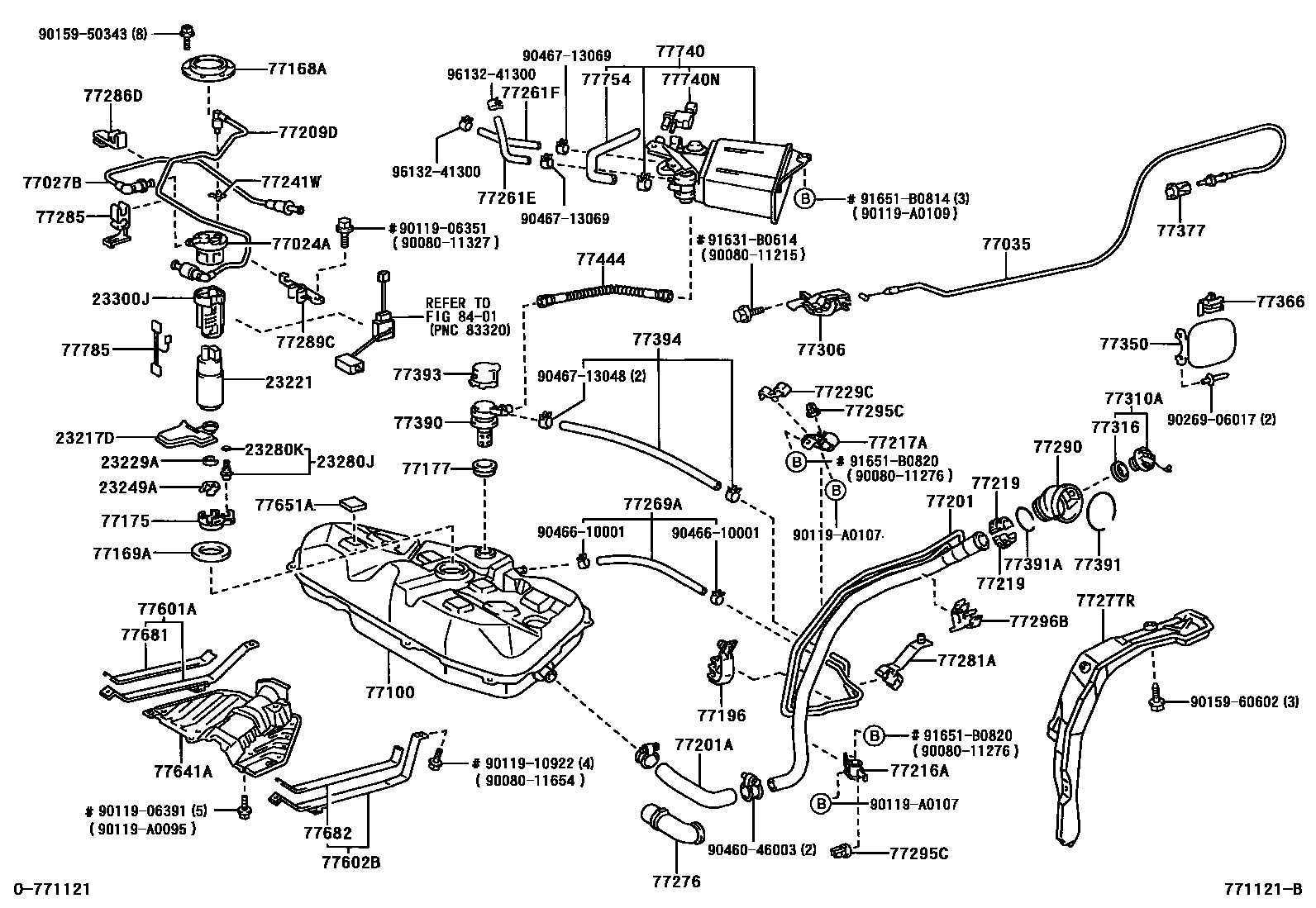

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0D030 · 23217-0D100 |
| 23221 | fuel pump | 23221-0A030 · 23221-0D100 |
| 23229A | Clip (for fuel pump filter) | 23219-03010 |
| 23243A | Fuel pump motor wiring harness | 23243-0D010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-0A020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-07020 · 90301-15024 · 90301-A0013 |
| 23300J | fuel filter assembly | 23300-0A020 |
| 77024A | Fuel absorber sub-assembly | 77024-02020 |
| 77027B | No. 1 fuel evaporation exhaust pipe sub-assembly | 77027-02040 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02100 |
| 77100 | fuel tank assembly | 77001-02150 · 77001-12880 · 77001-12A00 |
| 77144 | Fuel pump instrument fixture | 77144-47020 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02020 · 77169-47030 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02010 |
| 77177 | Check valve gasket | 77177-33010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02030 · 77196-12030 · 77196-12040 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-02080 · 77201-02150 · 77201-02180 · 77201-12610 · 77201-12670 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 77213-01020 · 77213-02060 · 77213-12260 |
| 77202A | No. 1 fuel hose (for breather pipe) | 77020-02180 · 77020-02181 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02060 · 77209-12180 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02070 · 77216-02080 · 77216-12110 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02040 · 77217-02050 · 77217-12080 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02030 · 77218-12060 |
| 77219 | Fuel tank filler pipe cap | 77219-02020 |
| 77229C | Snorkel clamp | 77229-02020 · 77229-06020 · 77229-21010 |
| 77241W | Pipe joint clip | 77241-02010 · 77241-60320 |
| 77251B | main fuel pipe | 77251-12700 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12490 · 77261-12500 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 95333-08020 |
| 77264 | Carbon canister to front side member pipe | 77264-12140 |
| 77269A | fuel tank breather hose | 77269-12060 |
| 77276 | Fuel hose protector | 77276-12050 · 77276-12070 |
| 77277R | Fuel tank filler pipe protection device | 77277-02050 · 77277-02070 |
| 77281A | Fuel filler pipe clamp | 77281-02050 · 77281-12080 · 77281-12090 |
| 77285 | Fuel pipe bracket | 77285-12080 |
| 77285F | No. 1 fuel pipe clamp | 77285-02020 |
| 77286D | No. 2 fuel pipe clamp | 77286-12070 |
| 77289B | No. 3 fuel pipe clamp | 77289-20060 |
| 77289C | No. 4 fuel pipe clamp | 77289-12040 |
| 77289D | No. 5 fuel pipe clamp | 77298-20080 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12150 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-02010 · 77296-12040 · 77296-12060 |
| 77298B | No. 4 fuel pipe clamp | 77298-12060 |
| 77298C | No. 4 fuel pipe clamp | 77298-12100 |
| 77299A | No. 5 fuel pipe clamp | 77299-02020 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02080 · 64606-AA020 |
| 77310A | Fuel tank cap assembly | 77300-33070 · 77300-52040 · 77300-53010 |
| 77316 | fuel tank cap gasket | 77316-16010 · 77316-33042 · 77316-52020 |
| 77350 | Fuel filler cap assembly | 77350-12450 · 77350-12470 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77390 | Fuel tank inlet valve assembly | 77390-12030 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77393 | One-way valve protection device | 77393-42010 |
| 77394 | Valve to fuel filler hose | 77394-02020 · 77394-12020 |
| 77444 | fuel tank vent hose | 77404-02020 · 77404-12030 · 77404-12031 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-12250 · 77601-12270 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12210 · 77612-12150 |
| 77641A | No. 1 fuel tank protective shell | 77641-02030 · 77641-02050 |
| 77651A | No. 1 fuel tank liner | 77651-12080 · 77651-20090 |
| 77652A | No. 2 fuel tank liner | 77652-12130 |
| 77681 | Fuel tank right side strap seat | 77681-34030 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77740 | Carbon canister assembly | 77740-02121 · 77740-02130 |
| 77740N | Vacuum switching valve (for carbon canister) | 90080-91233 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02030 |
| 77779 | Carbon canister outlet pipe | 77779-02010 · 77779-12010 |
| 77785 | fuel pump wiring harness | 77785-06020 |
