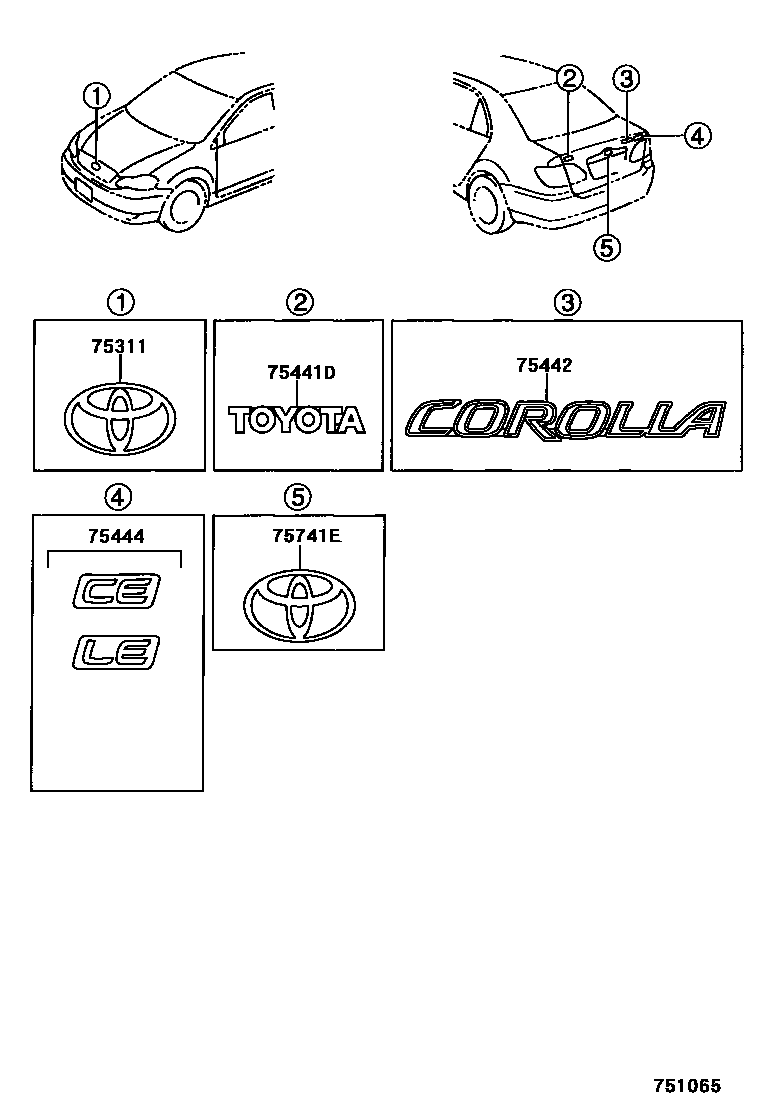

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-02110 |
| 75441D | Trunk door No. 1 name plate | 75441-02060 |
| 75442 | Trunk door number plate No. 2 | 75442-02070 |
| 75444 | Trunk door No. 4 nameplate | 75444-1A780 · 75444-1A790 |
| 75741E | logo | 75441-AA050 · 90975-02037 |
