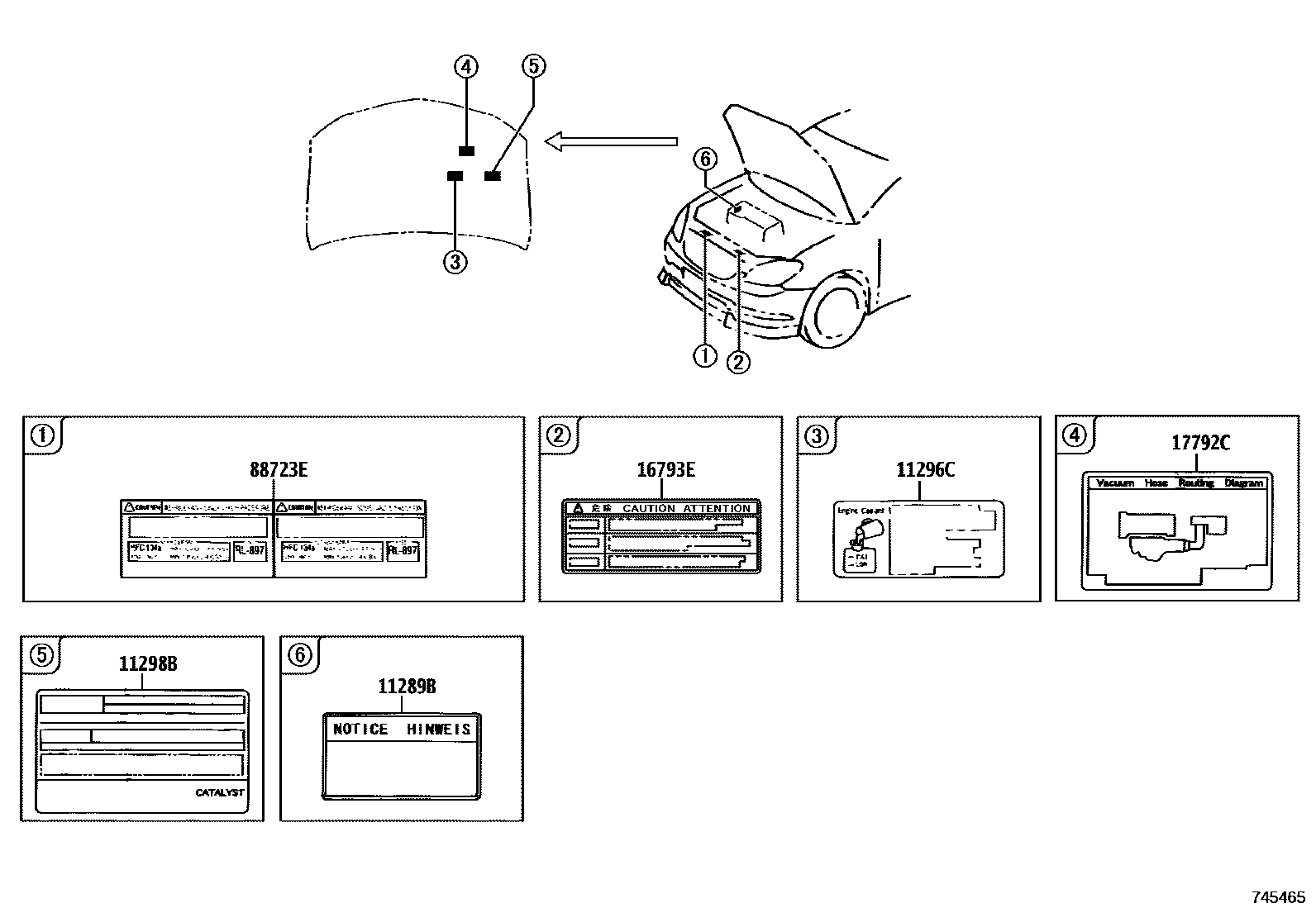

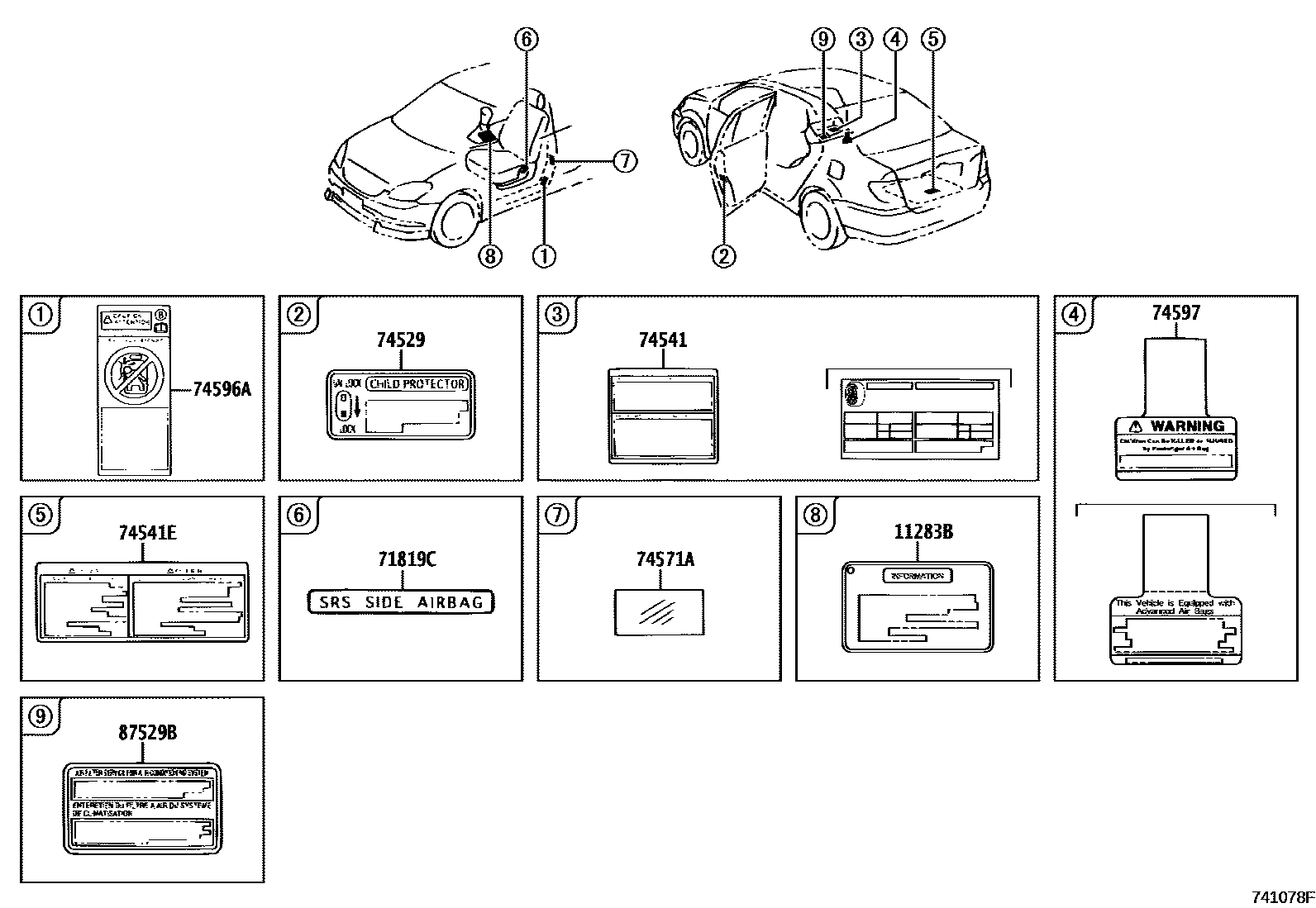

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11283B | Leak Detection Pump Information Label | 11294-28010 |
| 11289B | spark plug caution label | 11289-50010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-22150 · 11298-22151 · 11298-22153 · 11298-22154 · 11298-22155 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-46010 |
| 17792C | Engine vacuum hose information label | 17792-22060 · 17792-22061 · 17792-22062 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-02200 · 42661-12A00 · 42661-12A01 · 42661-12A02 · 42661-12A10 · 42661-12A20 · 42661-12A21 · 42661-12A22 · 42661-12A30 |
| 74541E | Small spare tire warning plate | 42668-06010 |
| 74571A | Label cover protective film | 74571-03020 · 74571-35020 |
| 74596A | Side air bag warning label | 74596-02020 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74599-48020 · 74599-50010 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-02100 · 88723-12150 · 88723-12160 |
