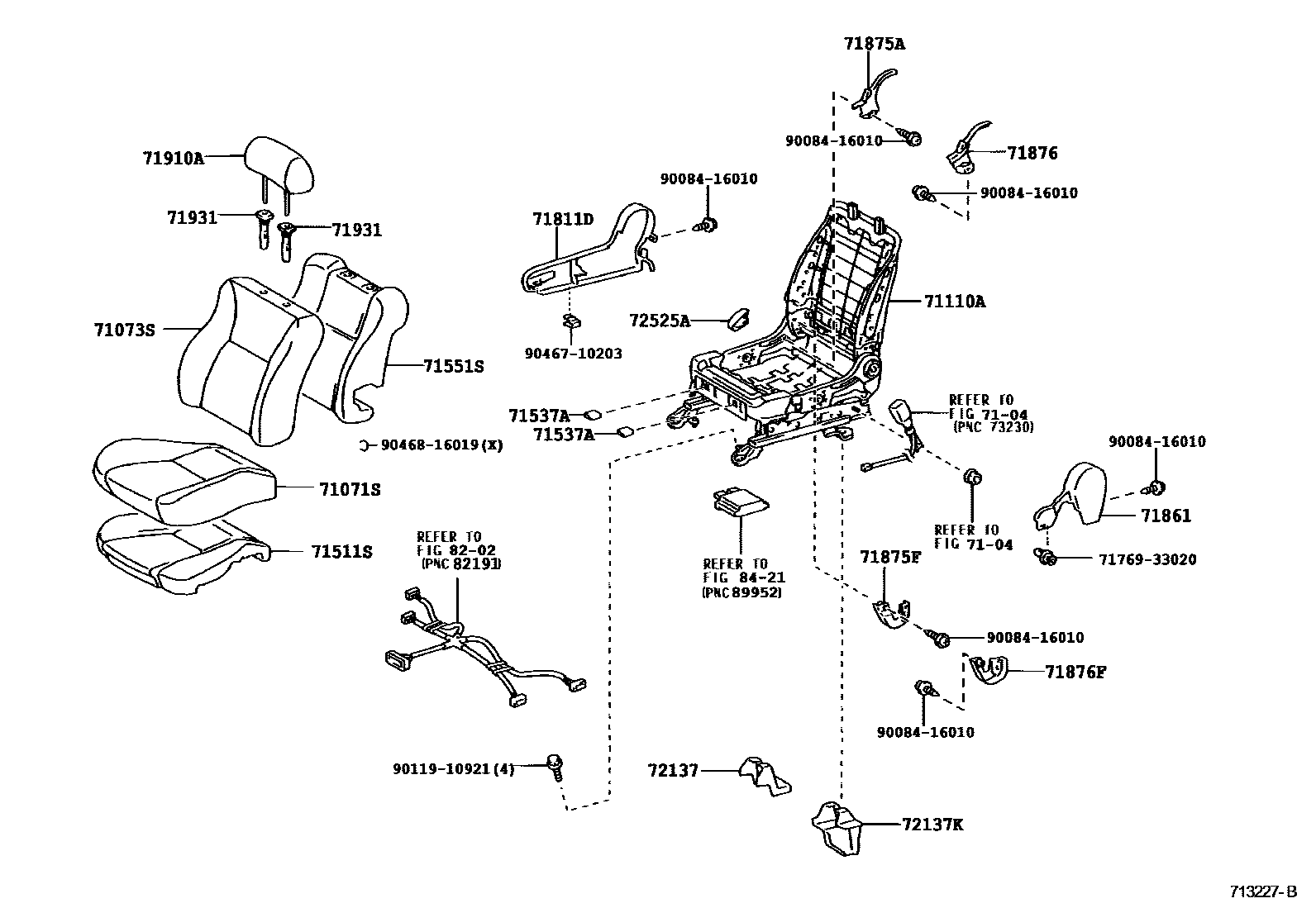

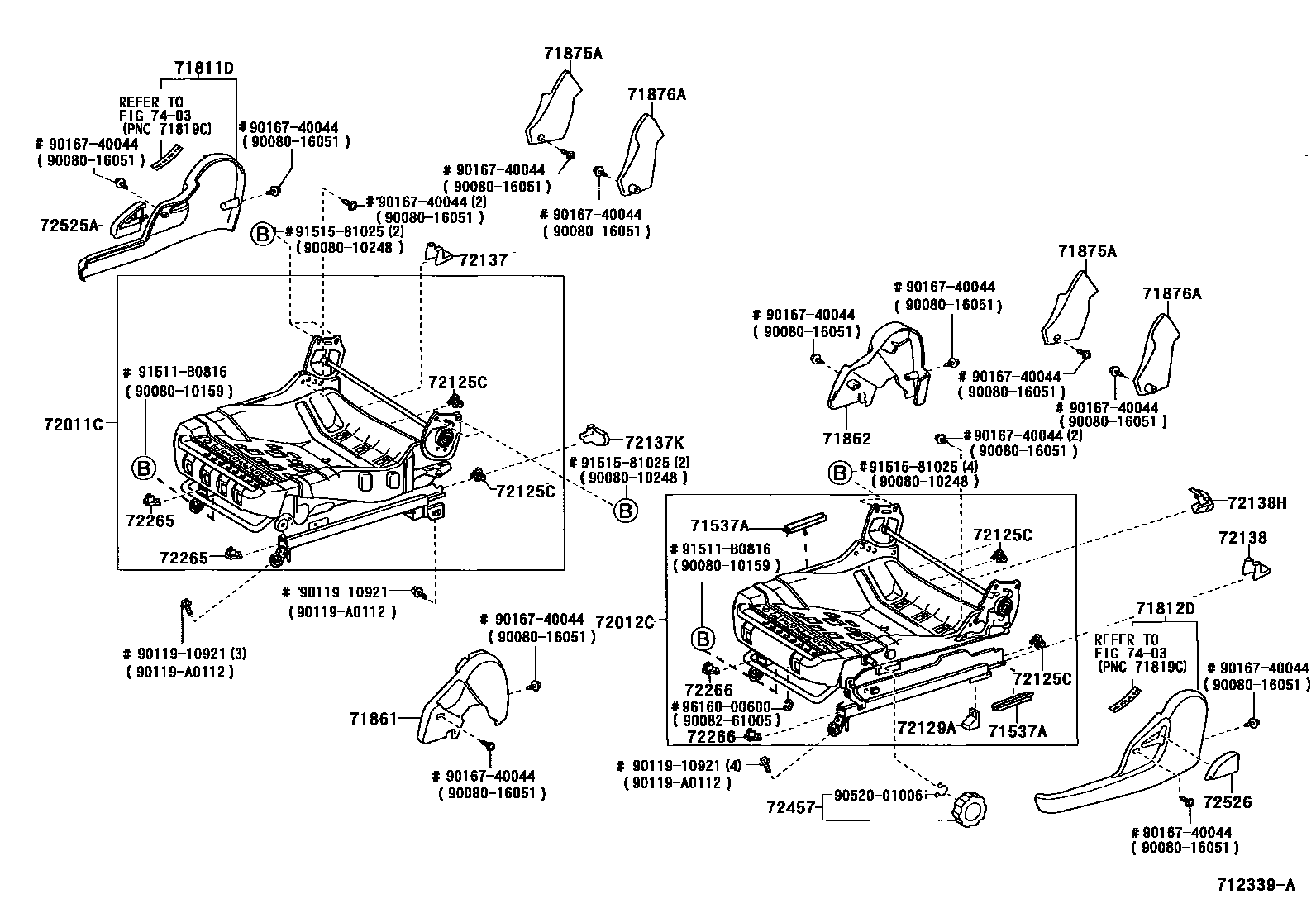

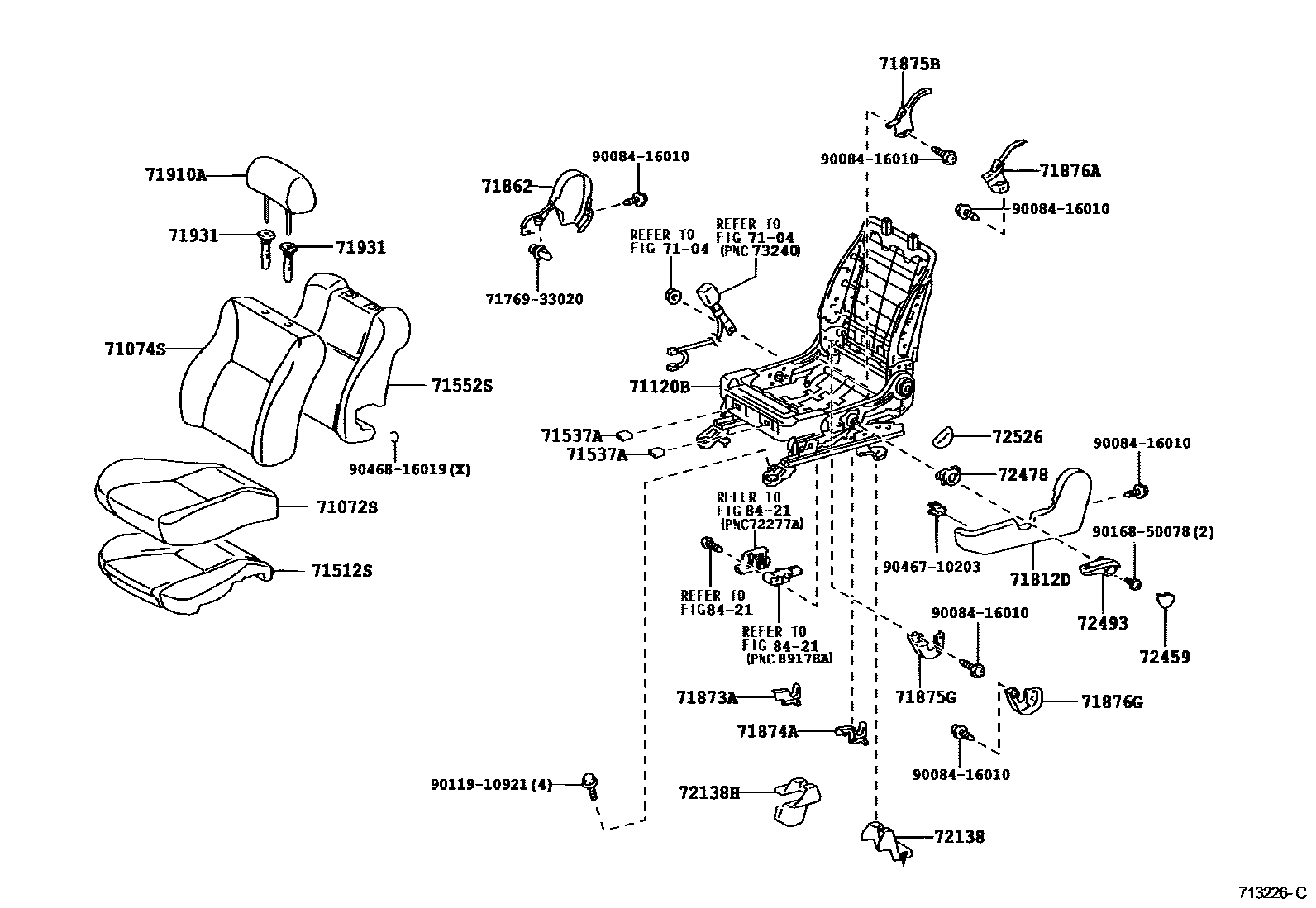

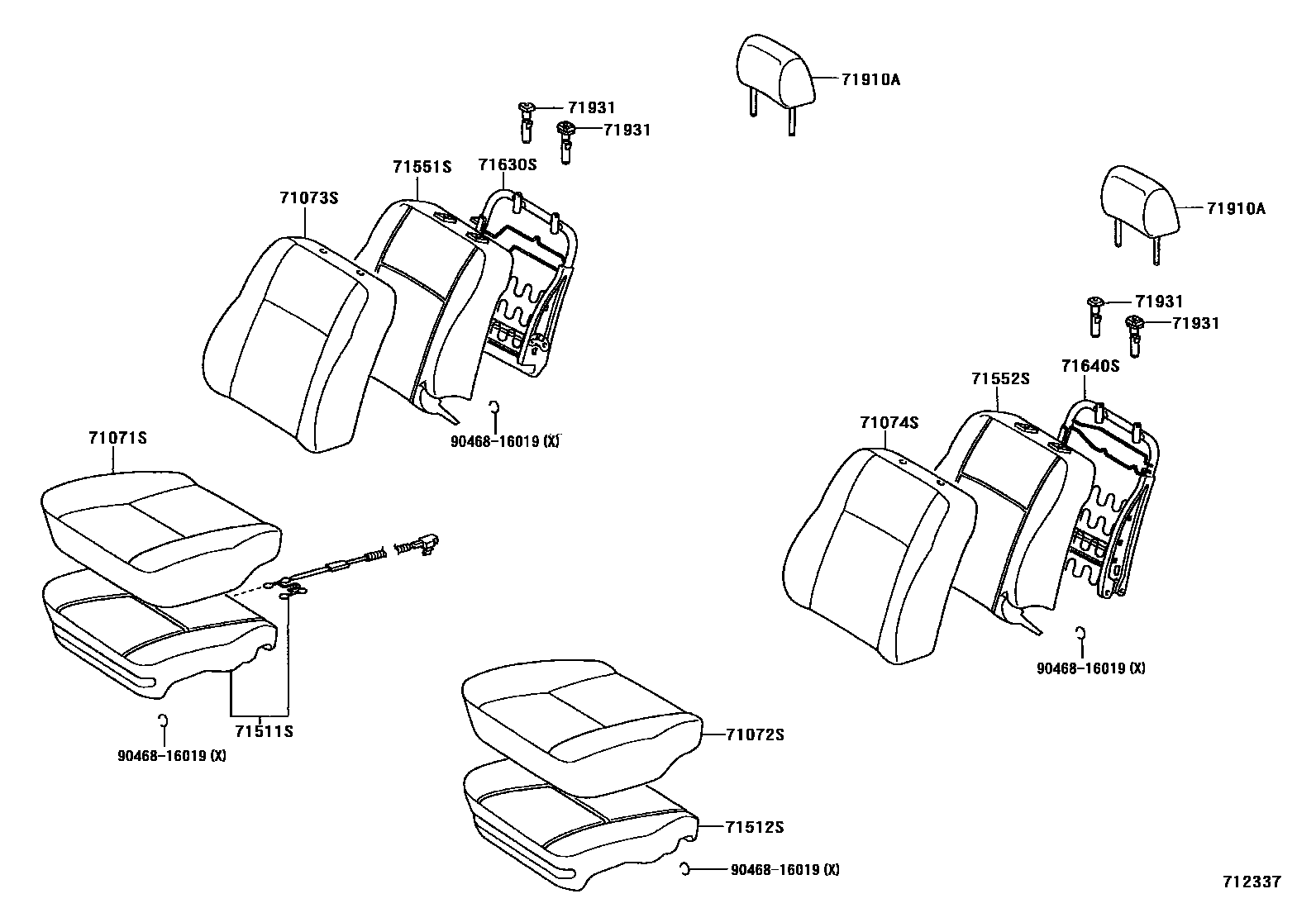

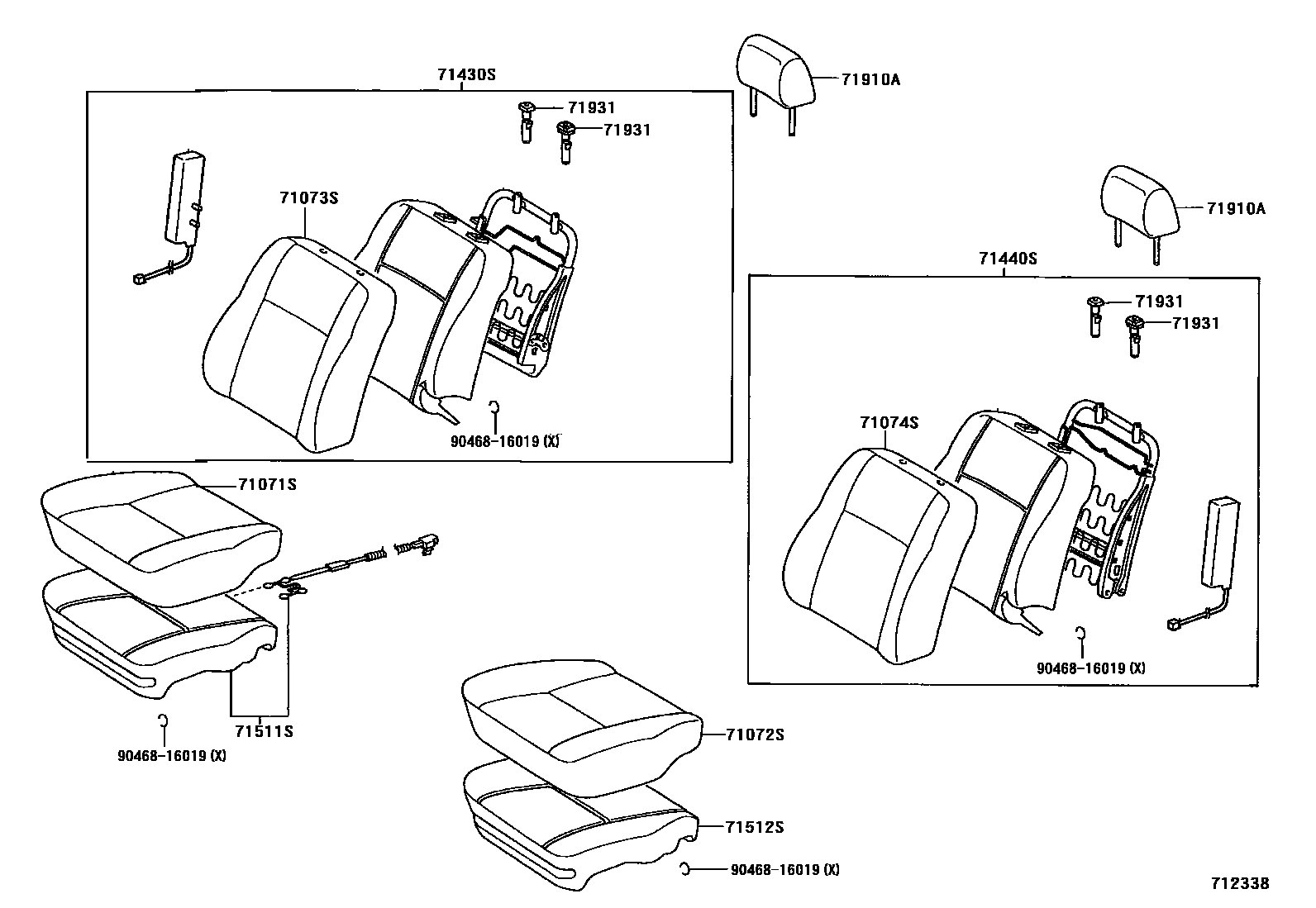

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-12010 · 71110-12011 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-12010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71502-12020 · 71511-1A090 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-63010 · 71512-12260 |
| 71537A | Front seat cushion protective cover | 71537-26010 · 71537-33010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12820 · 71551-63012 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12820 · 71551-63012 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-63030 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-63030 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-58060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-58060 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-58060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-58060 |
| 71931 | Front seat headrest bracket | 71930-47010 |
| 72011C | Front right seat adjuster sub-assembly | 72010-12740 |
| 72012C | Front left seat adjuster sub-assembly | 72020-12680 · 72020-12690 |
| 72125C | Seat No. 1 slide rail locking plate cover | 72125-13040 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-33040 |
| 72137 | Right seat outer slide rail cover | 72137-12110 · 72137-52010 |
| 72137K | Front right seat inner slide rail rear cover | 72157-02060 |
| 72138 | Left seat outer slide rail cover | 72137-12110 · 72137-52010 |
| 72138H | Front left seat inner slide rail rear cover | 72158-02060 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
